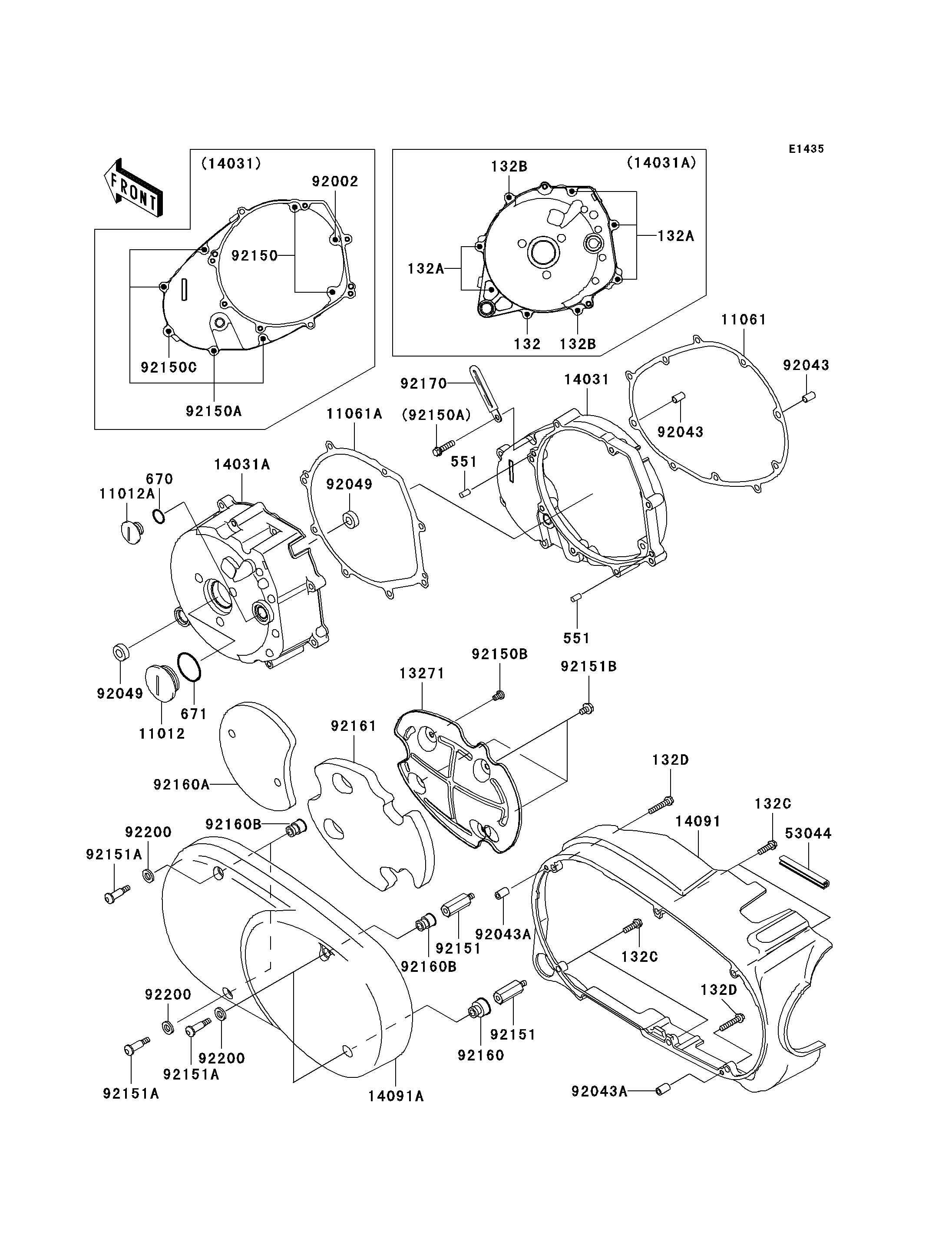

2006 Vulcan 1600 Mean Streak - Left Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
132
132A
132A
132B
132B
132C
132C
132D
132D
551
551
670
671
11012
11012A
11061
11061A
13271
14031
14031A
14091
14091A
53044
92002
92043
92043
92043A
92043A
92049
92049
92150
92150A
92150B
92150C
92151
92151
92151A
92151A
92151A
92151B
92160
92160A
92160B
92160B
92161
92170
92200
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X20 132 132J0620 1
BOLT-FLANGED-SMALL,6X30 132A 132J0630 5
BOLT-FLANGED-SMALL,6X60 132B 132J0660 2
BOLT-FLANGED-SMALL,6X20 132C 132V0620 4
BOLT-FLANGED-SMALL,6X30 132D 132V0630 2
PIN-DOWEL,6X12 551 551A0612 2
O RING,18MM 670 670B2018 1
O RING,40MM 671 671B2540 1
CAP 11012 11012-1362 1
CAP,TOP MARK 11012A 11012-1363 1
GASKET,GENERATOR COVER,IN 11061 11061-1079 1
GASKET,GENERATOR COVER,OUT 11061A 11061-1080 1
PLATE 13271 13271-1496 1
COVER-GENERATOR,INNER 14031 14031-1384 1
COVER-GENERATOR,OUTER 14031A 14031-1392 1
COVER,LH,INNER 14091 14091-1206 1
COVER,LH,OUTER 14091A 14091-1297 1
TRIM 53044 53044-1312 1
BOLT,FLANGED,6X40 92002 92002-1566 1
PIN,6.2X8X14 92043 92043-1263 2
PIN,6X16 92043A 92043-1690 2
SEAL-OIL,VB13193 92049 92049-1398 2
BOLT,6X30 92150 92150-1021 2
BOLT,FLANGED-SMALL,6X25 92150A 92150-1779 4
BOLT,6X10 92150B 92150-1864 1
BOLT,6X35 92150C 92150-1967 1
BOLT 92151 92151-1062 2
BOLT,L=32 92151A 92151-1796 4
BOLT,6X10 92151B 92151-1884 3
DAMPER 92160 92160-1718 1
DAMPER 92160A 92160-1719 1
DAMPER 92160B 92160-1730 3
DAMPER 92161 92161-1179 1
CLAMP 92170 92170-1514 1
WASHER 92200 92200-1296 4
