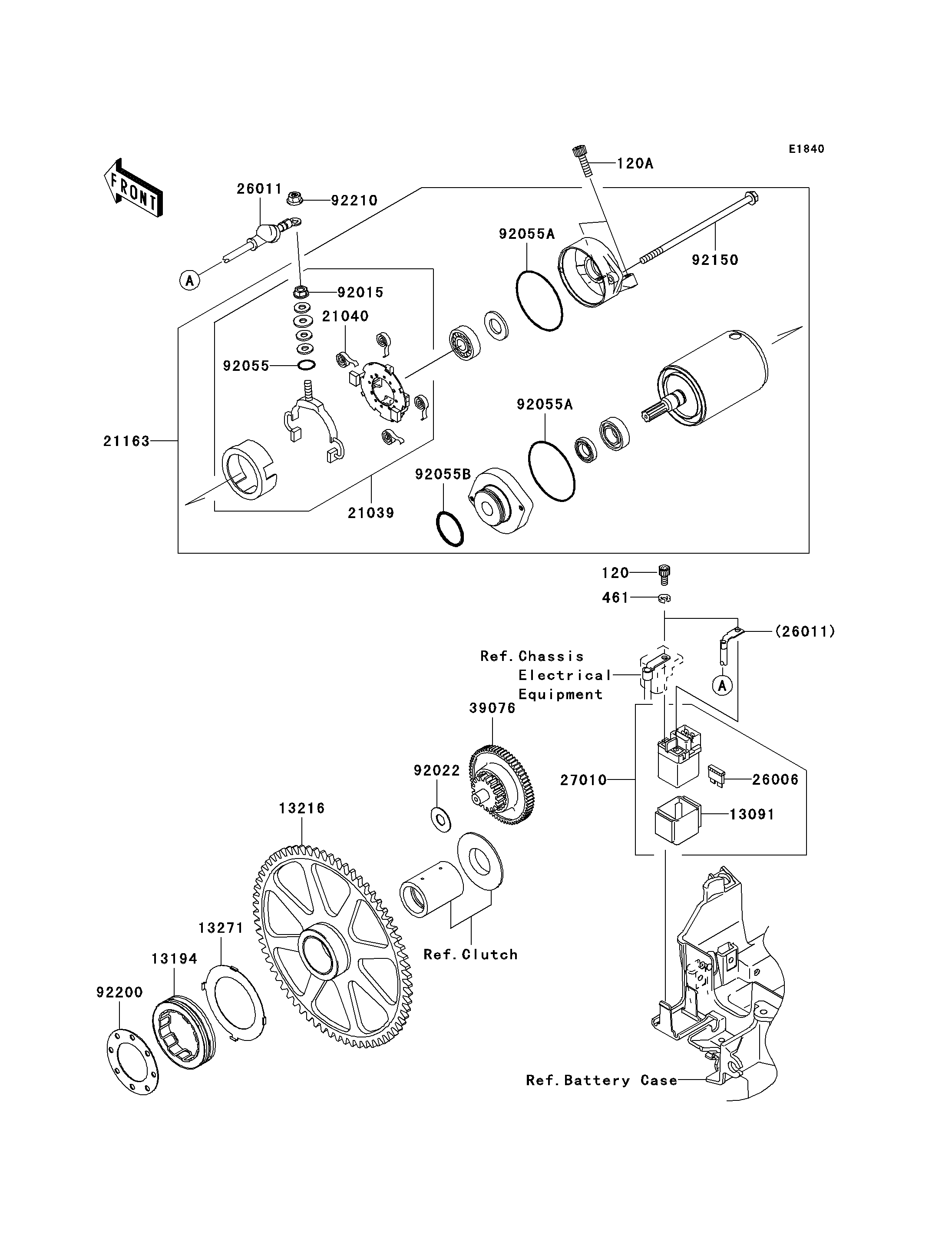

2009 Vulcan® 2000 - Starter Motor

DOWNLOAD PDF
SELECT A NEW PART
120
120A
461
13091
13194
13216
13271
21039
21040
21163
26006
26011
27010
39076
92015
92022
92055
92055A
92055A
92055B
92150
92200
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,5X10 120 120CB0510 2
BOLT-SOCKET,6X22 120A 120R0622 2
WASHER-SPRING,5MM,BLACK 461 461DB0500 2
HOLDER,MAGNETIC SWITCH 13091 13091-1884 1
CLUTCH-ONEWAY 13194 13194-0001 1
GEAR-COMP 13216 13216-0010 1
PLATE 13271 13271-0037 1
BRUSH,CARBON 21039 21039-1060 1
SPRING-BRUSH 21040 21040-1055 4
STARTER-ELECTRIC 21163 21163-0001 1
FUSE,30A-G 26006 26006-1006 1
WIRE-LEAD,STARTER MOTOR 26011 26011-0044 1
SWITCH,MAGNETIC 27010 27010-1327 1
LIMITER,STARTER IDLE GEAR 39076 39076-0001 1
NUT,STARTER MOTOR 92015 92015-1476 1
WASHER,12X27.5X1.0 92022 92022-1852 1
RING-O,4.5X2.0 92055 92055-1370 1
RING-O,STARTER MOTOR 92055A 92055-1381 2
RING-O,37MM 92055B 92055-1393 1
BOLT,STARTER MOTOR 92150 92150-1913 2
WASHER,44X73.5X1.2 92200 92200-0019 1
NUT,6MM 92210 92210-0188 1
