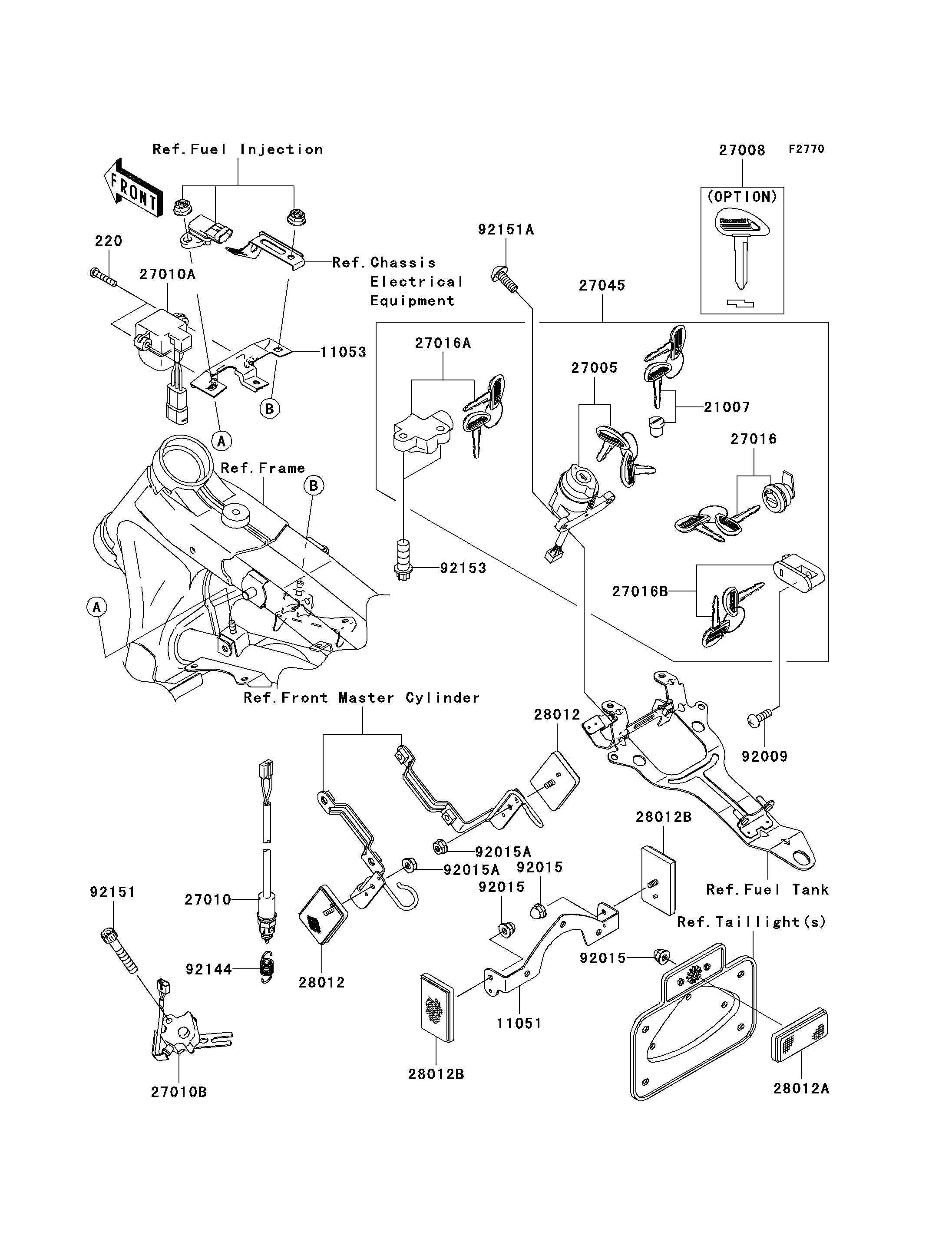

2006 Vulcan 1600 Classic - Ignition Switch/Locks/Reflectors

DOWNLOAD PDF
SELECT A NEW PART
220
11051
11053
21007
27005
27008
27010
27010A
27010B
27016
27016A
27016B
27045
28012
28012
28012A
28012B
28012B
92009
92015
92015
92015
92015A
92015A
92144
92151
92151A
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROS,4X20 220 220C0420 2
BRACKET,REFLECTOR 11051 11051-1100 1
BRACKET,DOWN SENSOR 11053 11053-0261 1
ROTOR,LOCK,TANK CAP 21007 21007-5053 1
SWITCH-ASSY-IGNITION 27005 27005-0001 1
KEY-LOCK,BLANK 27008 27008-1211 1 (OPTION)
SWITCH,REAR BRAKE 27010 27010-1412 1
SWITCH,DOWN SENSOR 27010A 27010-1416 1
SWITCH,SIDE STAND 27010B 27010-1470 1
LOCK-ASSY,LID 27016 27016-5279 1
LOCK-ASSY,STEERING 27016A 27016-5298 1
LOCK-ASSY,HELMET 27016B 27016-5317 1
SWITCH-ASSY 27045 27045-5246 1
REFLECTOR-REFLEX,FR 28012 28012-1009 2
REFLECTOR-REFLEX 28012A 28012-1077 1
REFLECTOR-REFLEX 28012B 28012-1088 2
SCREW,5X12 92009 92009-1296 1
NUT,LOCK,FLANGE CAP,5MM 92015 92015-1263 3
NUT,FLANGED,5MM 92015A 92015-1656 2
SPRING,REAR BRAKE SWITCH 92144 92144-1141 1
BOLT,SOCKET,6X35 92151 92151-1390 1
BOLT,SOCKET,6X16 92151A 92151-1751 2
BOLT,TORX,8X22 92153 92153-1273 2
