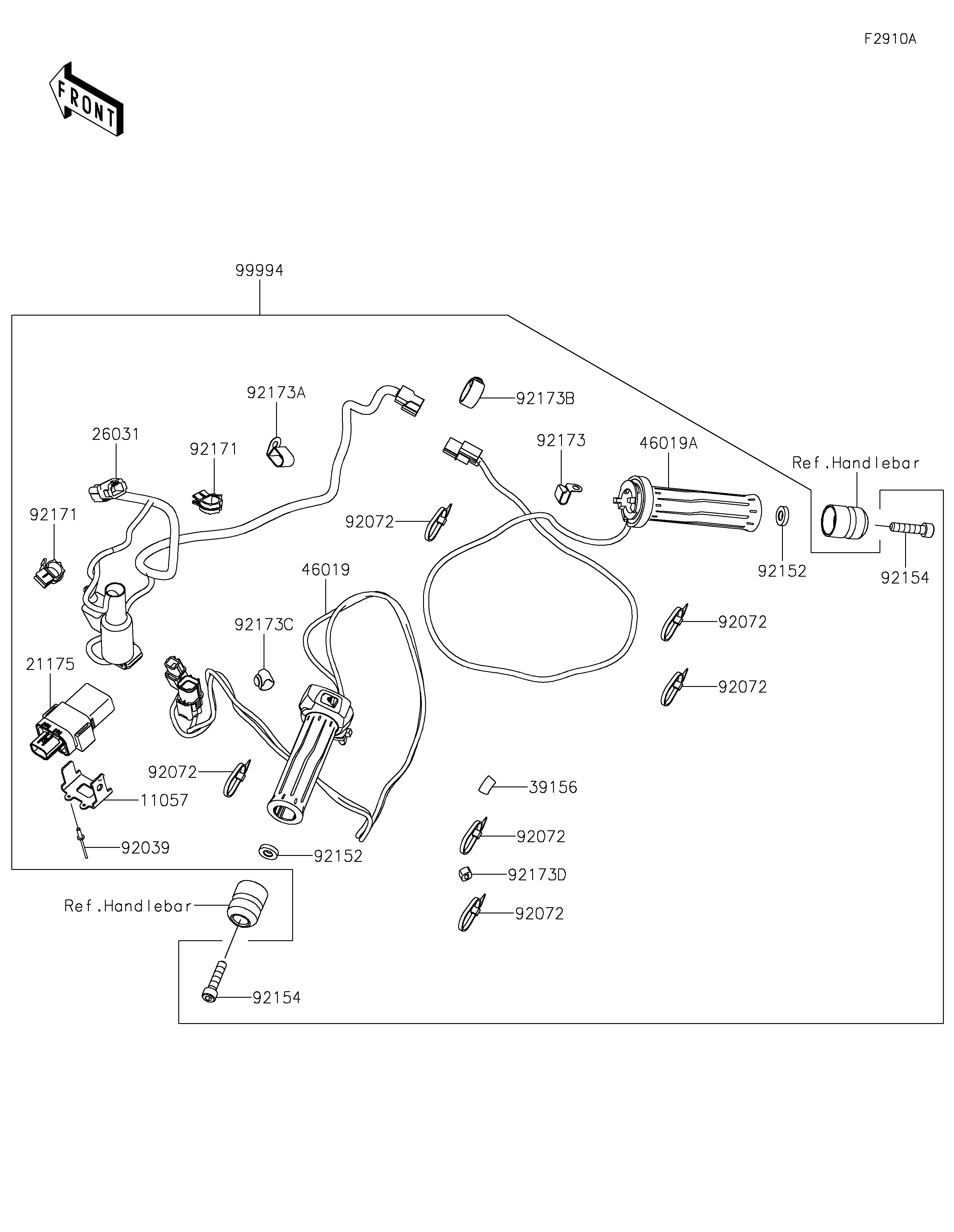

2023 NINJA® ZX™-10RR - Accessory(Grip Heater)

DOWNLOAD PDF
SELECT A NEW PART
11057
21175
26031
39156
46019
46019A
92039
92072
92072
92072
92072
92072
92072
92152
92152
92154
92154
92171
92171
92173
92173A
92173B
92173C
92173D
99994
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11057 11057-4258 1
CONTROL UNIT-ELECTRONIC,GH 21175 21175-1329 1
HARNESS 26031 26031-2884 1
PAD,15X25X1 39156 39156-2119 1
GRIP-ASSY,HEATER,LH 46019 46019-0105 1
GRIP-ASSY,HEATER,RH 46019A 46019-0106 1
RIVET 92039 92039-1271 3
BAND,202X3.6 92072 92072-0782 6
COLLAR 92152 92152-2663 2
BOLT,SOCKET,8X35 92154 92154-4053 2
CLAMP,EDGE CLIP 92171 92171-1722 2
CLAMP 92173 92173-0082 1
CLAMP,68MM 92173A 92173-1009 1
CLAMP 92173B 92173-2194 1
CLAMP 92173C 92173-2199 1
CLAMP 92173D 92173-2437 1
GRIP HEATER 99994 99994-1486 1
