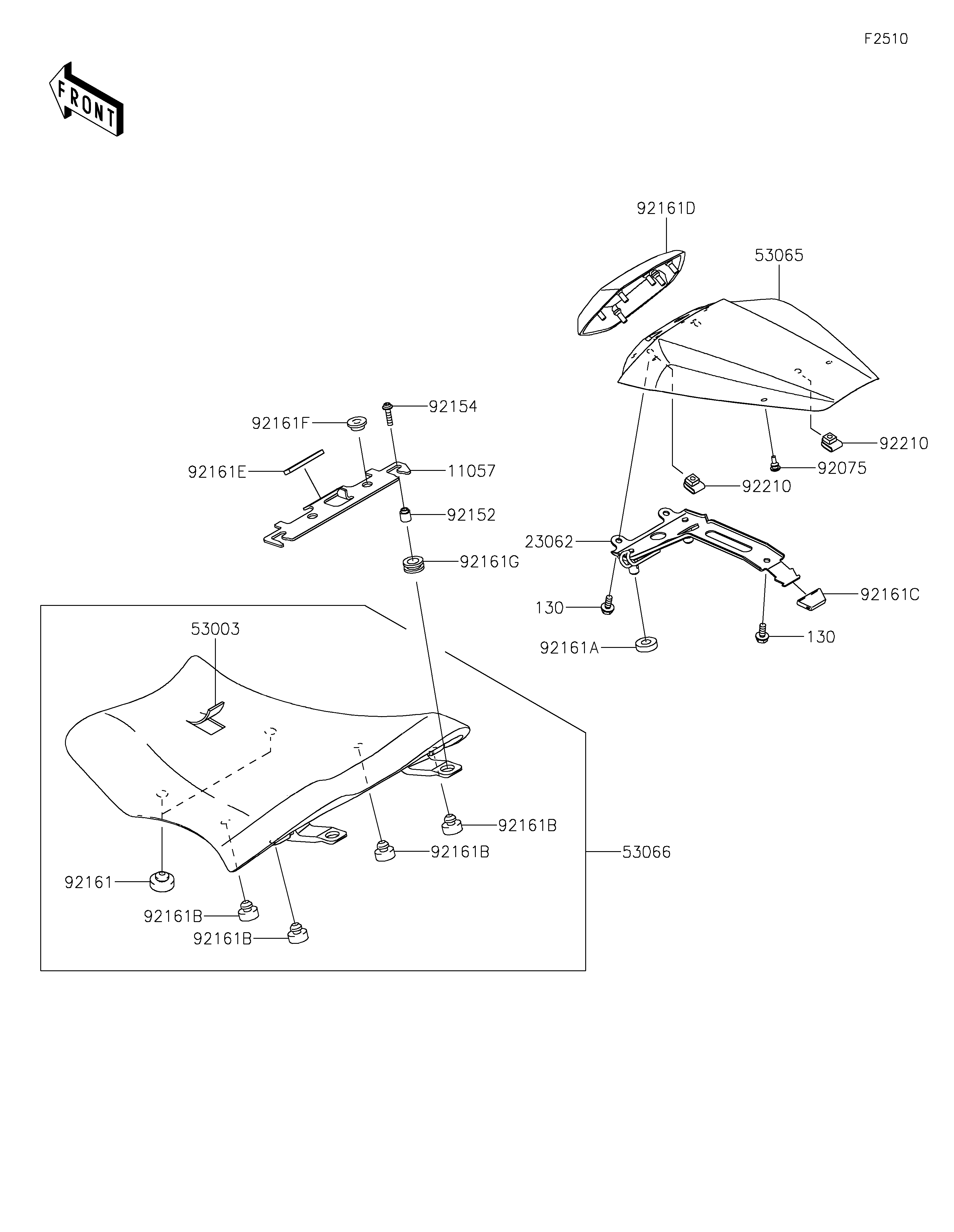

2023 NINJA® ZX™-10RR - Seat

DOWNLOAD PDF
SELECT A NEW PART
11057
23062
53003
53065
53066
92075
92152
92154
92161
92161A
92161B
92161B
92161B
92161B
92161C
92161D
92161E
92161F
92161G
92210
92210
130
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SEAT 11057 11057-7381 1
BRACKET-COMP 23062 23062-1303 1
LEATHER,FR SEAT,BLACK 53003 53003-0535-MA 1
COVER SEAT,L.GREEN 53065 53065-0038-777 1
SEAT-ASSY,FR,BLACK 53066 53066-0700-MA 1
DAMPER,6X10X15 92075 92075-1808 2
COLLAR 92152 92152-2816 2
BOLT,SOCKET,5X20 92154 92154-4257 2
DAMPER,SEAT,10X25X8 92161 92161-0095 2
DAMPER 92161A 92161-0174 2
DAMPER,8X20X8 92161B 92161-0223 4
DAMPER 92161C 92161-0629 1
DAMPER,SEAT PAD 92161D 92161-1812 1
DAMPER,10X50X4 92161E 92161-1834 1
DAMPER,6X20X7.5 92161F 92161-1937 2
DAMPER 92161G 92161-2403 2
NUT,6MM 92210 92210-0277 3
BOLT-FLANGED,6X14 130 130BA0614 3
