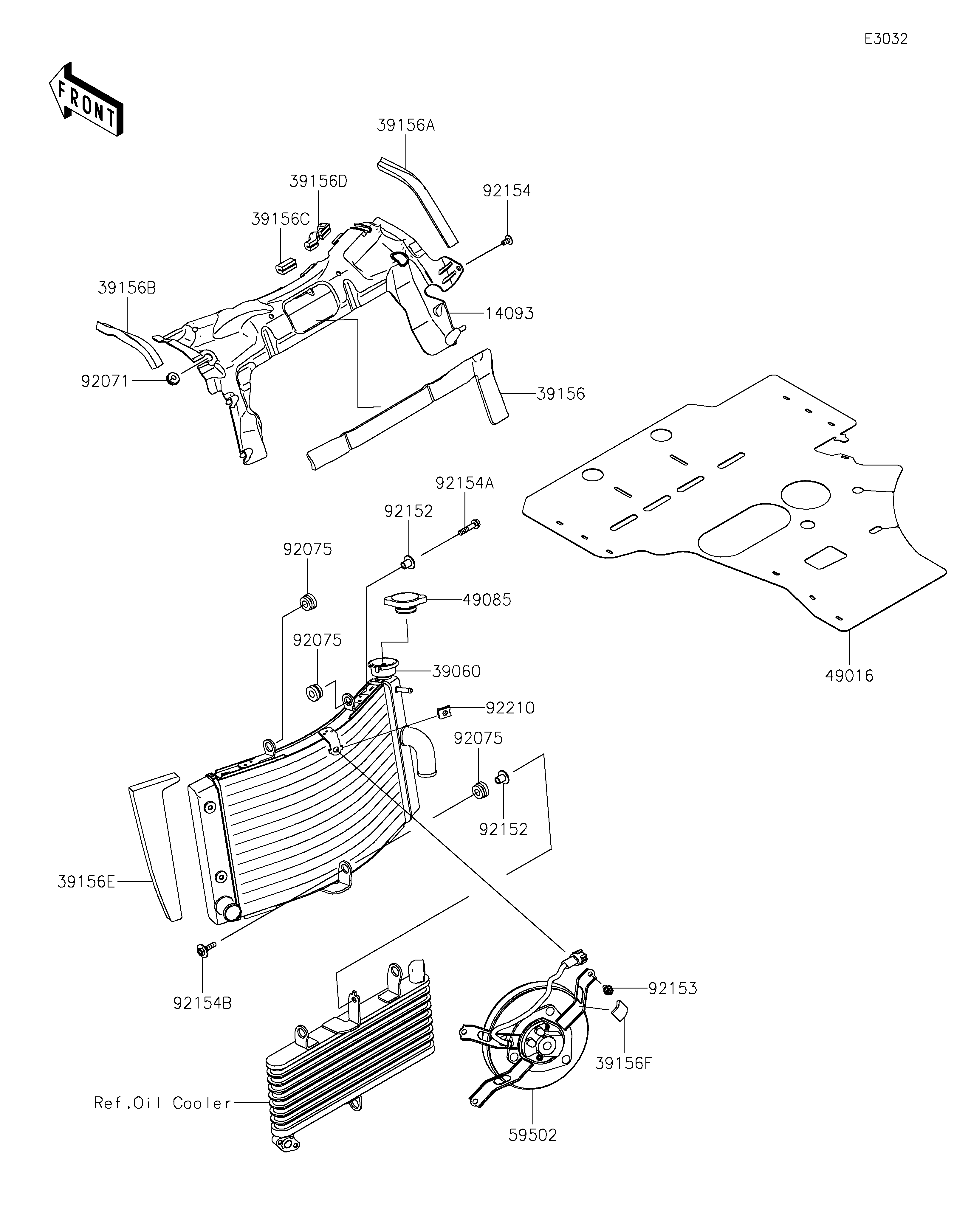

Parts Diagrams |
14093
39060
39156
39156A
39156B
39156C
39156D
39156E
39156F
49016
49085
59502
92071
92075
92075
92075
92152
92152
92153
92154
92154A
92154B
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER | 14093 | 14093-1200 | 1 | ||
| RADIATOR | 39060 | 39060-0743 | 1 | ||
| PAD | 39156 | 39156-0730 | 1 | ||
| PAD,15X163X10 | 39156A | 39156-2615 | 1 | ||
| PAD,15X104X10 | 39156B | 39156-2643 | 1 | ||
| PAD,20X26.5X5 | 39156C | 39156-2644 | 1 | ||
| PAD,13.5X64X5 | 39156D | 39156-2645 | 1 | ||
| PAD,RADIATOR LH | 39156E | 39156-2646 | 1 | ||
| PAD,23X19X4 | 39156F | 39156-2737 | 1 | ||
| COVER-SEAL,ENGINE RR | 49016 | 49016-0669 | 1 | ||
| CAP-ASSY-PRESSURE | 49085 | 49085-0006 | 1 | ||
| FAN-ASSY | 59502 | 59502-0631 | 1 | ||
| GROMMET | 92071 | 92071-0811 | 1 | ||
| DAMPER,RUBBER | 92075 | 92075-1123 | 3 | ||
| COLLAR | 92152 | 92152-1074 | 2 | ||
| BOLT | 92153 | 92153-0531 | 3 | ||
| BOLT,6X12 | 92154 | 92154-1892 | 1 | ||
| BOLT,FLANGED,15X30 | 92154A | 92154-2119 | 1 | ||
| BOLT,6X25 | 92154B | 92154-4259 | 1 | ||
| NUT | 92210 | 92210-1323 | 1 |
