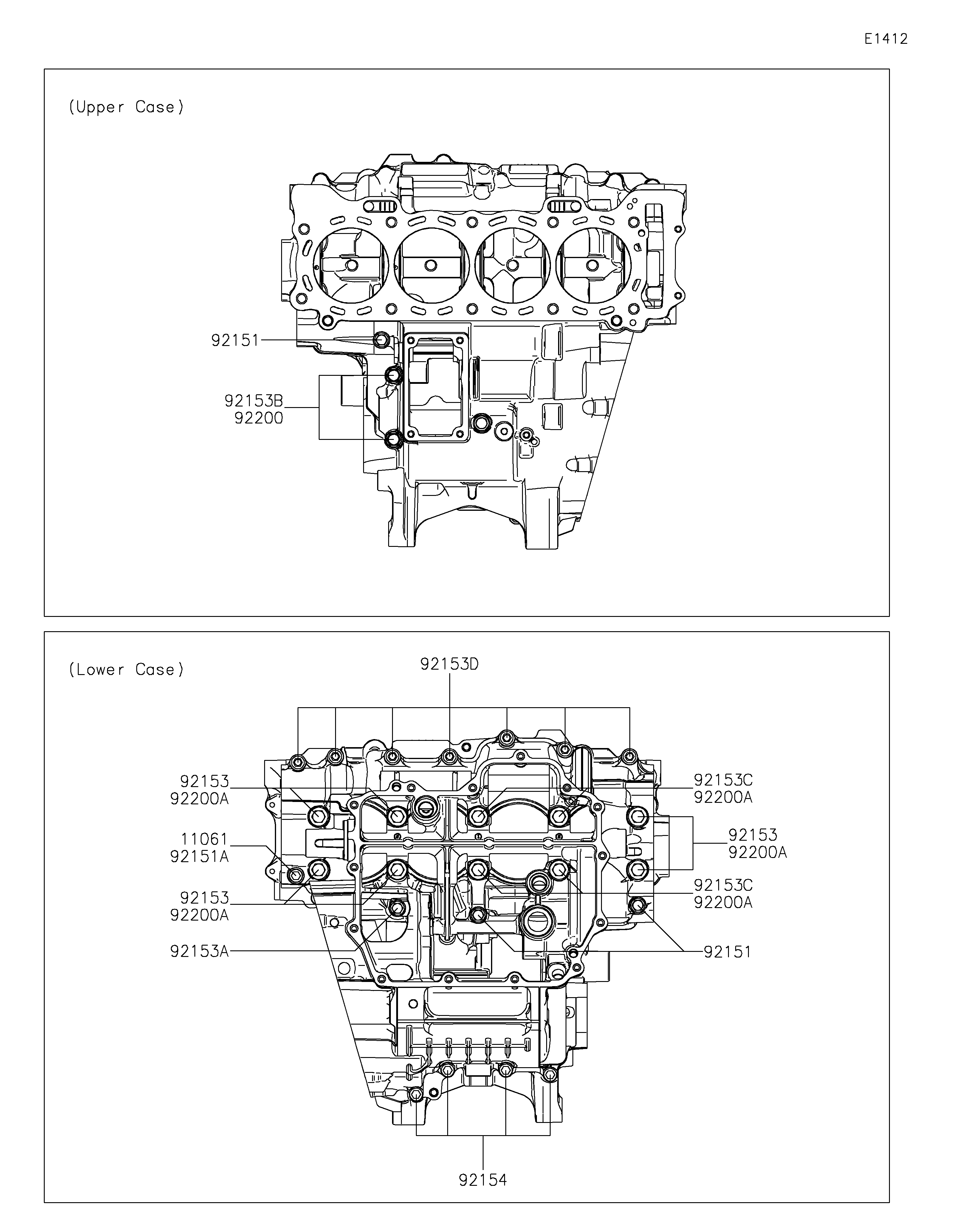

2023 NINJA® ZX™-10RR - Crankcase Bolt Pattern

DOWNLOAD PDF
SELECT A NEW PART
11061
92151
92151
92151A
92153
92153
92153
92153A
92153B
92153C
92153C
92153D
92154
92200
92200A
92200A
92200A
92200A
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,6.2X13.5X1.0 11061 11061-0262 1
BOLT,FLANGED,7X50 92151 92151-1223 3
BOLT,6X60 92151A 92151-1791 1
BOLT,FLANGED,9X100 92153 92153-0447 6
BOLT,FLANGED,7X45 92153A 92153-1041 1
BOLT,8X63 92153B 92153-1110 2
BOLT,FLANGED,9X113 92153C 92153-1449 4
BOLT,FLANGED,6X45 92153D 92153-1575 7
BOLT,FLANGED,6X40 92154 92154-0861 4
WASHER,8.2X16X1.6 92200 92200-0047 2
WASHER,9.2X19X2.3 92200A 92200-0115 10
