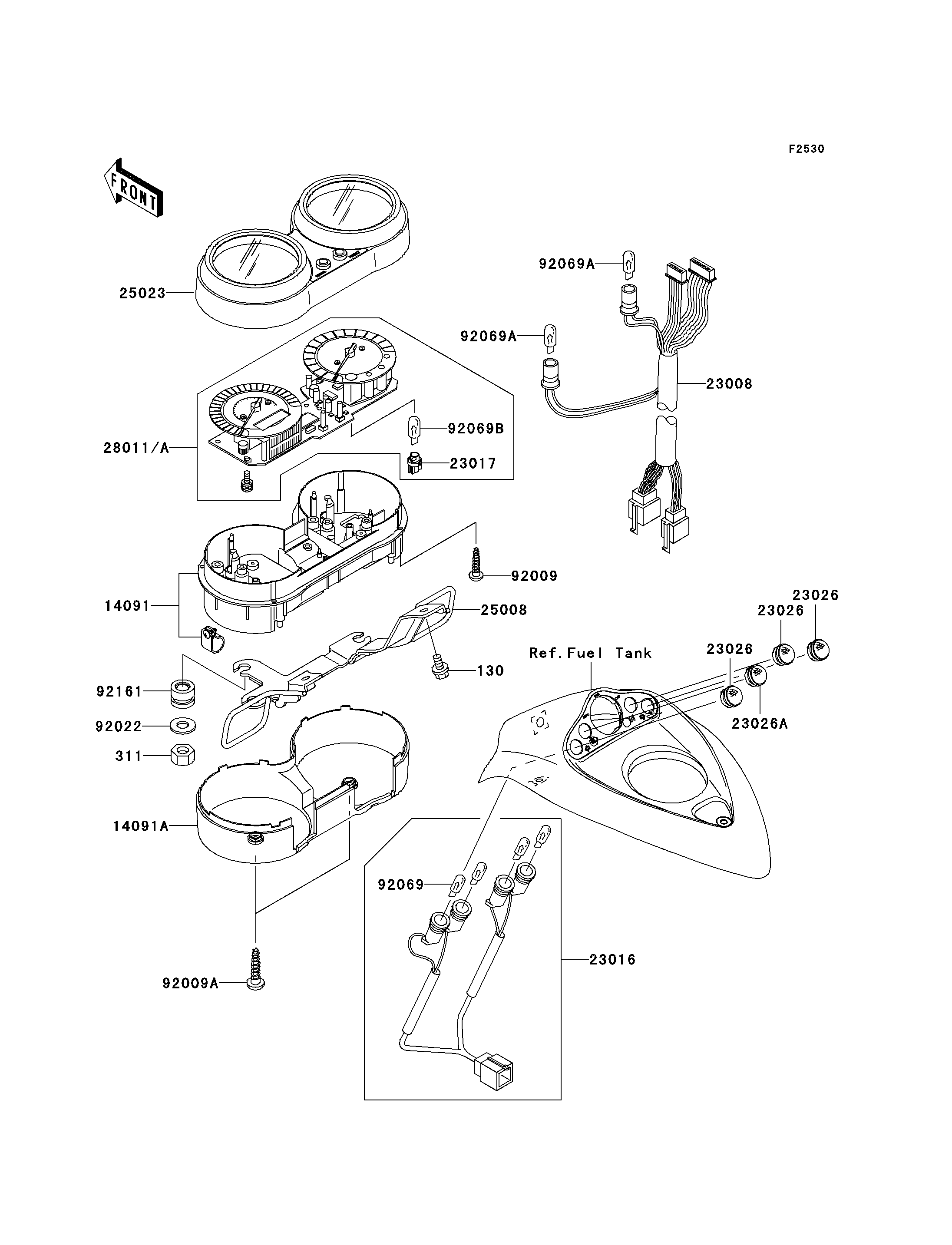

2003 Vulcan 1500 Mean Streak - Meter(s)

DOWNLOAD PDF
SELECT A NEW PART
130
311
14091
14091A
23008
23016
23017
23026
23026
23026
23026A
25008
25023
92009
92009A
92022
92069
92069A
92069A
92069B
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130J0612 2
NUT-HEX 311 311B0500 3
COVER,METER HOUSING 14091 14091-1370 1
COVER,METER,LWR 14091A 14091-1371 1
SOCKET-ASSY,METER 23008 23008-1655 1
LAMP-ASSY 23016 23016-1192 1
SOCKET 23017 23017-1064 1
LENS,GREEN 23026 23026-1171 3
LENS,BLUE 23026A 23026-1172 1
BRACKET-METER 25008 25008-1230 1
COVER-METER CASE,UPP 25023 25023-1261 1
SCREW,TAPPING,3X14 92009 92009-1592 5
SCREW,TAPPING,4X16 92009A 92009-1601 2
WASHER,5.2X16X1.2 92022 92022-263 3
BULB,12V 3.4W,T10 92069 92069-1007 4
BULB,12V 1.7W,T10 92069A 92069-1059 2
BULB,12V 3W,T6.5 92069B 92069-1068 1
DAMPER,METER BRACKET 92161 92161-1247 3
METER,SPEED&TACHO,MPH 28011 28011-1224 1 CAUS
METER,SPEED&TACHO,KPH 28011A 28011-1225 1 CN
