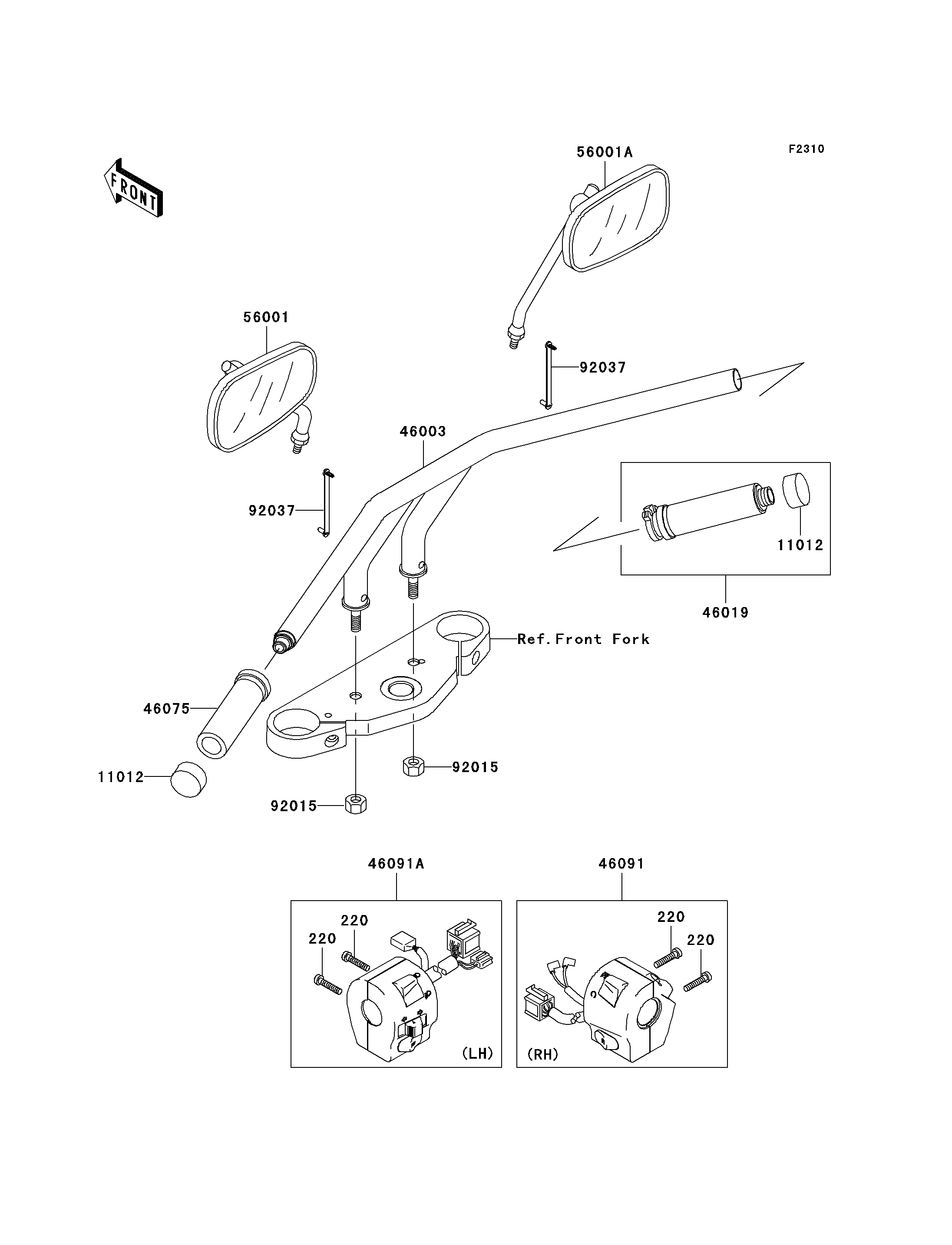

2003 Vulcan 1500 Mean Streak - Handlebar
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SCREW-PAN-CROS,5X25 | 220 | 220R0525 | 4 | ||
| CAP,GRIP END | 11012 | 11012-1975 | 2 | ||
| HANDLE | 46003 | 46003-1560 | 1 | ||
| GRIP-ASSY,THROTTLE | 46019 | 46019-1109 | 1 | ||
| GRIP,LH | 46075 | 46075-1074 | 1 | ||
| HOUSING-ASSY-CONTROL,RH | 46091 | 46091-1827 | 1 | ||
| HOUSING-ASSY-CONTROL,LH | 46091A | 46091-1828 | 1 | ||
| MIRROR-ASSY,LH | 56001 | 56001-1555 | 1 | ||
| MIRROR-ASSY,RH | 56001A | 56001-1556 | 1 | ||
| NUT,LOCK,FLANGED,10MM | 92015 | 92015-1717 | 2 | ||
| CLAMP,SPEED,L=58 | 92037 | 92037-1163 | 2 |
