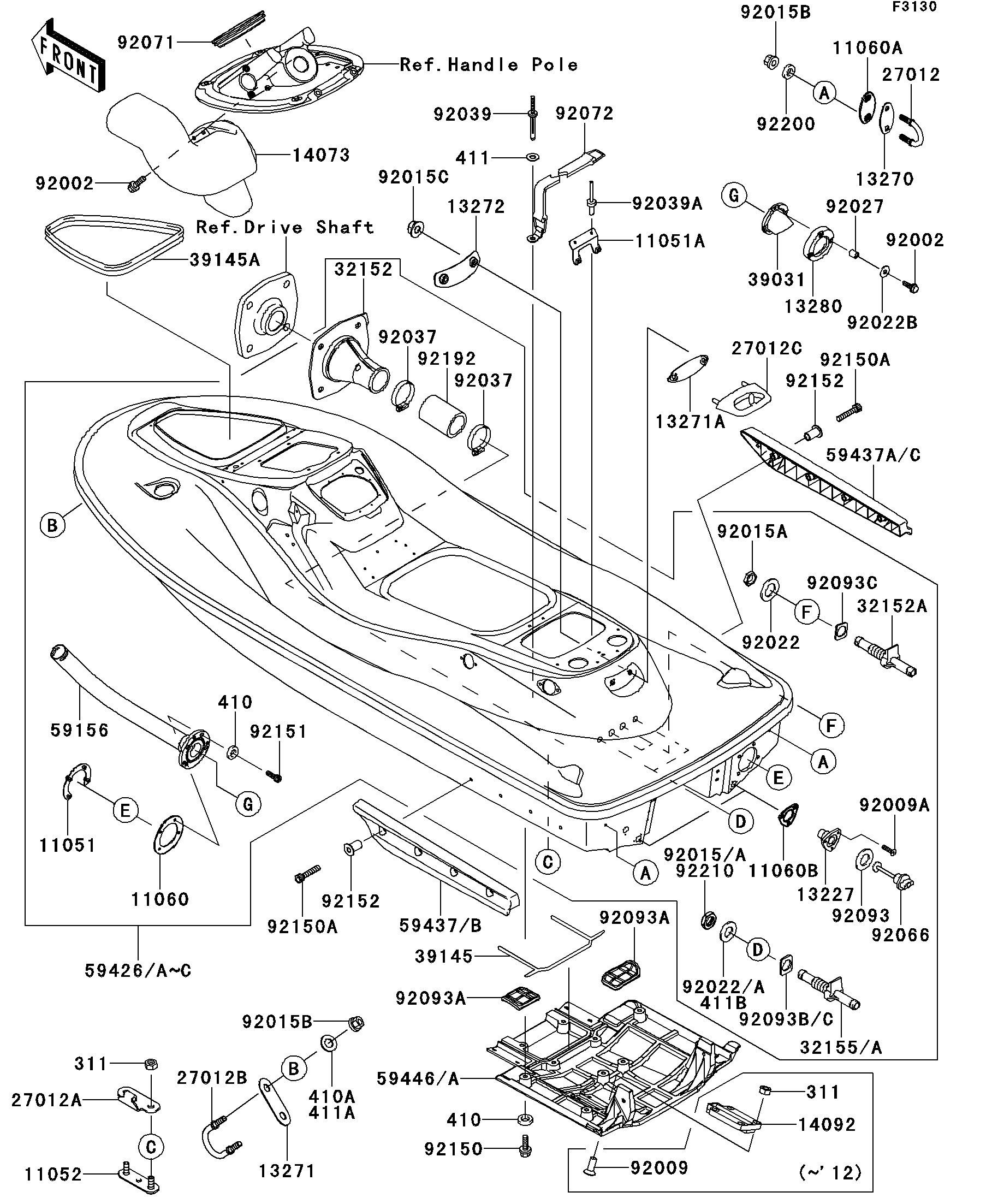

2014 JET SKI® STX®-15F - Hull

DOWNLOAD PDF
SELECT A NEW PART
11051
11051
11051A
11051A
11052
11052
11060
11060
11060A
11060A
11060B
11060B
13227
13227
13270
13270
13271
13271
13271A
13271A
13272
13272
13280
13280
14073
14073
27012
27012
27012A
27012A
27012B
27012B
27012C
27012C
32152
32152
32152A
32152A
32155
32155
39031
39031
39145
39145
39145A
39145A
59156
59156
59426
59426
59437B
59437B
59437C
59437C
59446
59446
92002
92002
92002
92002
92009A
92009A
92015A
92015A
92015A
92015A
92015B
92015B
92015B
92015B
92015C
92015C
92022
92022
92022
92022
92022B
92022B
92027
92027
92037
92037
92037
92037
92039
92039
92039A
92039A
92066
92066
92071
92071
92072
92072
92093
92093
92093A
92093A
92093A
92093A
92093C
92093C
92093C
92093C
92150
92150
92150A
92150A
92150A
92150A
92151
92151
92152
92152
92152
92152
92192
92192
92200
92200
311
311
311
311
410
410
410
410
411
411
411A
411A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11051 11051-3731 1
BRACKET,BREATHER-BILGE 11051A 11051-3802 1
BRACKET,RR DUCT 11052 11052-3712 1
GASKET 11060 11060-3781 1
GASKET,U HOOK,RR 11060A 11060-3800 2
GASKET,DRAIN PLUG 11060B 11060-3801 2
HOUSING,DRAIN PLUG,F.BLACK 13227 13227-3721-6Z 2
PLATE 13270 13270-3860 2
PLATE 13271 13271-3724 1
PLATE 13271A 13271-3889 1
PLATE,REAR TOWING HOOK 13272 13272-3702 1
HOLDER,EXHAUST VALVE 13280 13280-3718 1
DUCT 14073 14073-3801 1
HOOK 27012 27012-3797 2
HOOK 27012A 27012-3816 1
HOOK 27012B 27012-3821 1
HOOK,REAR TOWING,F.BLACK 27012C 27012-3836-6Z 1
PIPE,DRIVE SHAFT 32152 32152-3703 1
PIPE 32152A 32152-3749 2
PIPE,COOLING 32155 32155-1511 2
CAP-END 39031 39031-3704 1
TRIM-SEAL,JET PUMP COVER 39145 39145-3768 1
TRIM-SEAL,L=1412 39145A 39145-3787 1
PIPE-TAIL 59156 59156-3740 1
HULL-COMP,BLACK/EBONY 59426 59426-0007-43D 1
STABILIZER,LH,F.BLACK 59437B 59437-3745-6Z 1
STABILIZER,RH,F.BLACK 59437C 59437-3746-6Z 1
COVER-JET PUMP 59446 59446-0078 1
BOLT,6X20 92002 92002-3755 5
SCREW,TAPPING,4X16 92009A 92009-3849 6
NUT,20MM 92015A 92015-1589 4
NUT,FLANGED,8MM 92015B 92015-1933 6
NUT,FLANGED,8MM 92015C 92015-3709 2
WASHER,20.3X36X2.3 92022 92022-1116 4
WASHER 92022B 92022-567 3
COLLAR,6.2X10X10 92027 92027-3705 3
CLAMP 92037 92037-3009 2
RIVET 92039 92039-3741 1
RIVET 92039A 92039-3755 2
PLUG,RR,DRAIN,F.BLACK 92066 92066-3783-6Z 2
GROMMET 92071 92071-3812 1
BAND,314X18 92072 92072-3814 1
SEAL 92093 92093-3720 2
SEAL 92093A 92093-3765 2
SEAL 92093C 92093-3784 4
BOLT,SOCKET,6X18 92150 92150-3775 10
BOLT,SOCKET,6X30 92150A 92150-3822 8
BOLT,SOCKET,6X20 92151 92151-3774 4
COLLAR 92152 92152-3715 8
TUBE,39X51X90 92192 92192-3845 1
WASHER 92200 92200-3779 4
NUT-HEX,6MM 311 311R0600 2
WASHER-PLAIN-SMALL,6MM 410 410S0600 14
WASHER-PLAIN,5MM 411 411S0500 1
WASHER-PLAIN,8MM 411A 411S0800 2
