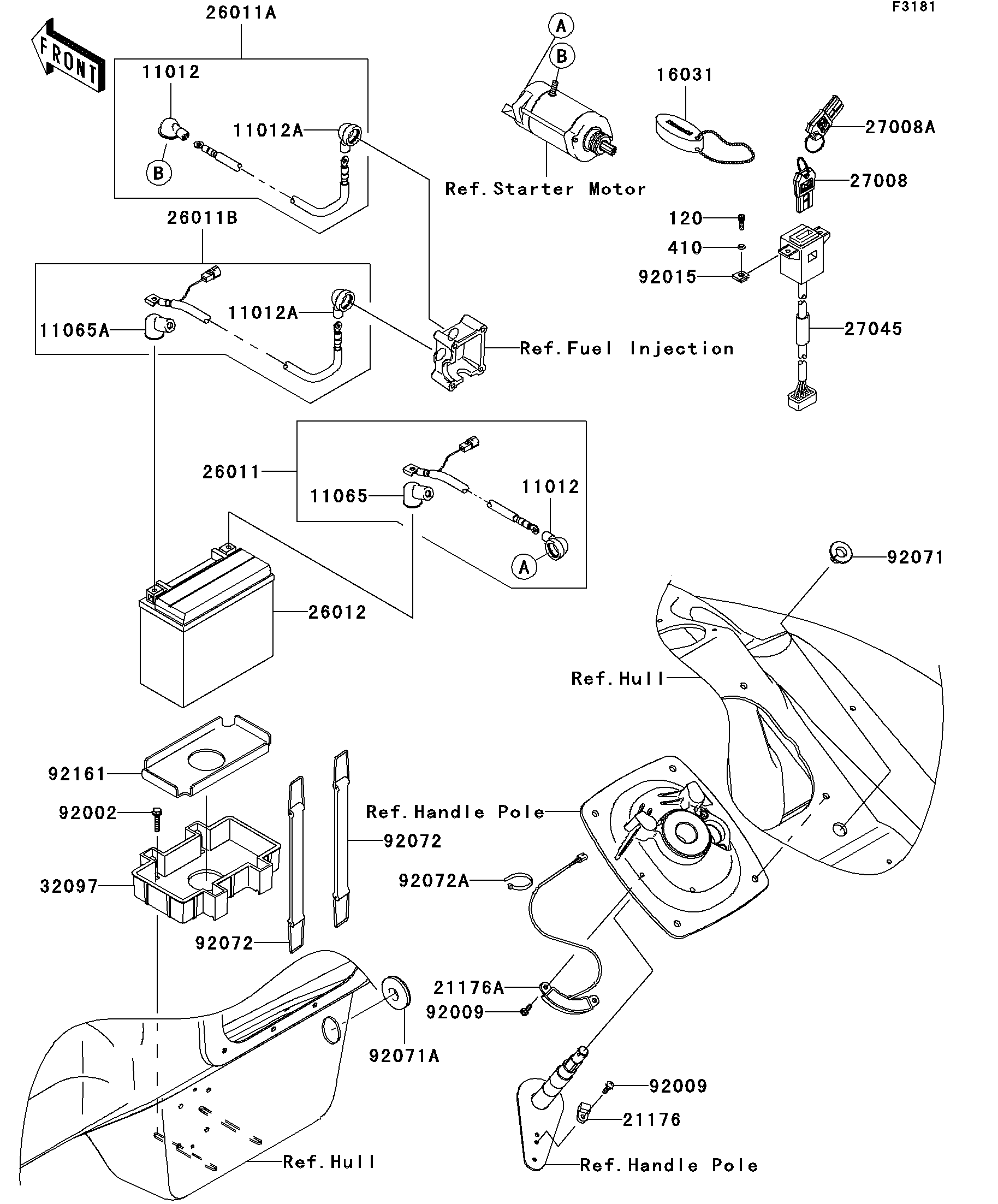

2009 Jet Ski® Ultra® 260X - Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11012A
11012A
11065
11065A
16031
21176
21176A
26011
26011A
26011B
26012
27008
27008A
27045
32097
92002
92009
92009
92015
92071
92071A
92072
92072
92072A
92161
120
410
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-3004 2
CAP,LEAD WIRE 11012A 11012-3726 2
CAP,TERMINAL 11065 11065-3729 1
CAP,TERMINAL 11065A 11065-3732 1
FLOAT,KEY 16031 16031-3991 1
SENSOR,MAGNET 21176 21176-3746 1
SENSOR,HOLE IC 21176A 21176-3748 1
WIRE-LEAD,BATTERY(-)-STARTER 26011 26011-3915 1
WIRE-LEAD,RELAY-STARTER 26011A 26011-3916 1
WIRE-LEAD,RELAY-BATTERY(+) 26011B 26011-3924 1
BATTERY,YTX20L-BS,12V 18AH 26012 26012-3730 1
FPO MODE KEY 27008 27008-3767 1
SLO MODE KEY 27008A 27008-3768 1
SWITCH-ASSY 27045 27045-3755 1
CASE-BATTERY 32097 32097-3709 1
BOLT,6X30 92002 92002-3726 4
SCREW,5X16 92009 92009-3868 3
NUT,CLIP,5MM 92015 92015-3830 2
GROMMET 92071 92071-3826 1
GROMMET 92071A 92071-3840 1
BAND,340X22 92072 92072-3805 2
BAND,L=100.08 92072A 92072-3882 1
DAMPER,BATTERY CASE 92161 92161-3762 1
BOLT-SOCKET,5X16 120 120R0516 2
W-PLAIN-S,5MM 410 410S0500 2
