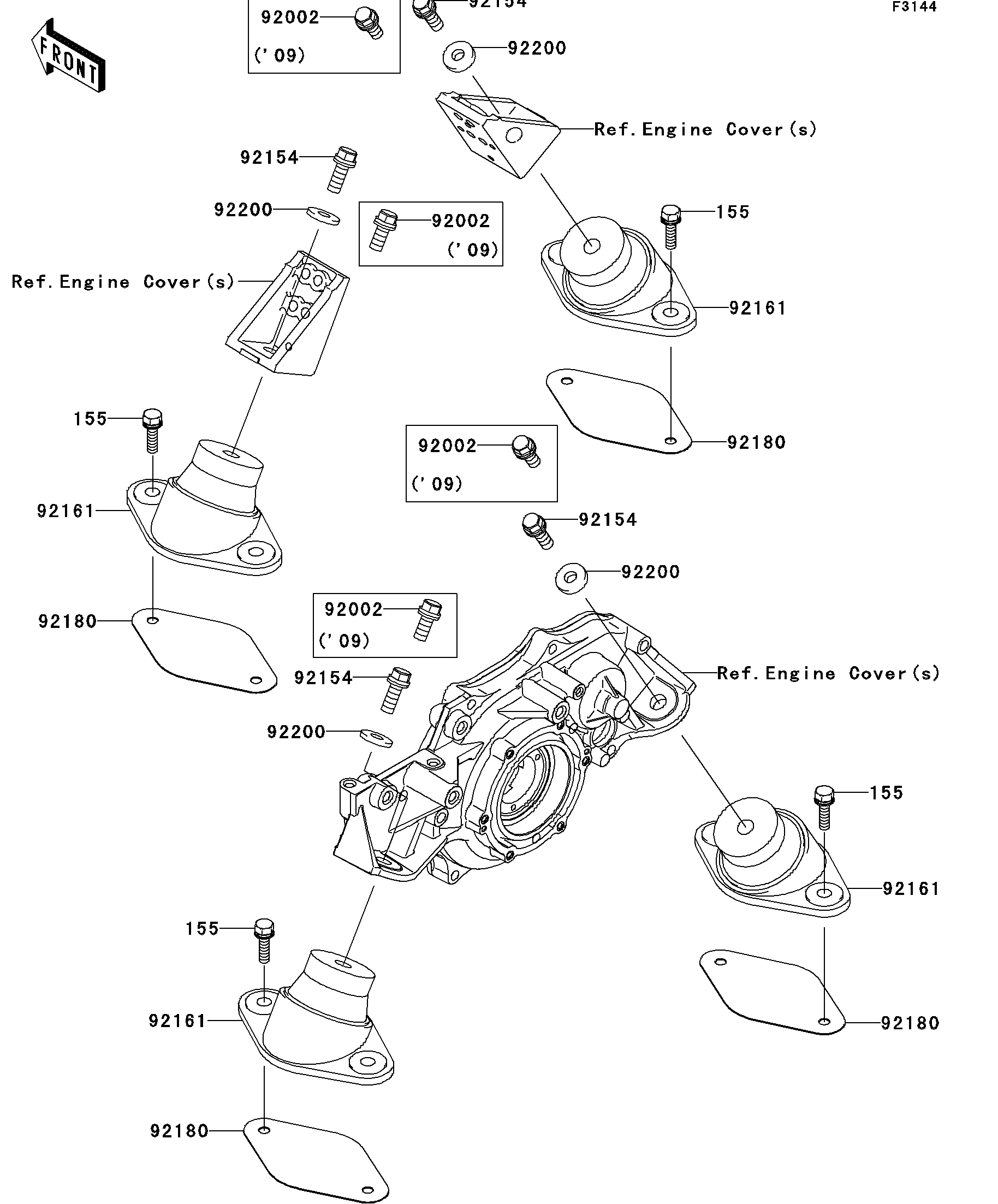

2009 Jet Ski® Ultra® 260X - Engine Mount
92002
92002
92002
92002
92161
92161
92161
92161
92180
92180
92180
92180
92200
92200
92200
92200
155
155
155
155
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT,10X25 | 92002 | 92002-3770 | 4 | ||
| DAMPER,ENGINE MOUNT | 92161 | 92161-3789 | 4 | ||
| SHIM,T=1.0 | 92180 | 92180-3716 | AR | ||
| WASHER,10.5X26X4 | 92200 | 92200-3798 | 4 | ||
| BOLT-WSP-SMALL,8X30 | 155 | 155R0830 | 8 |
