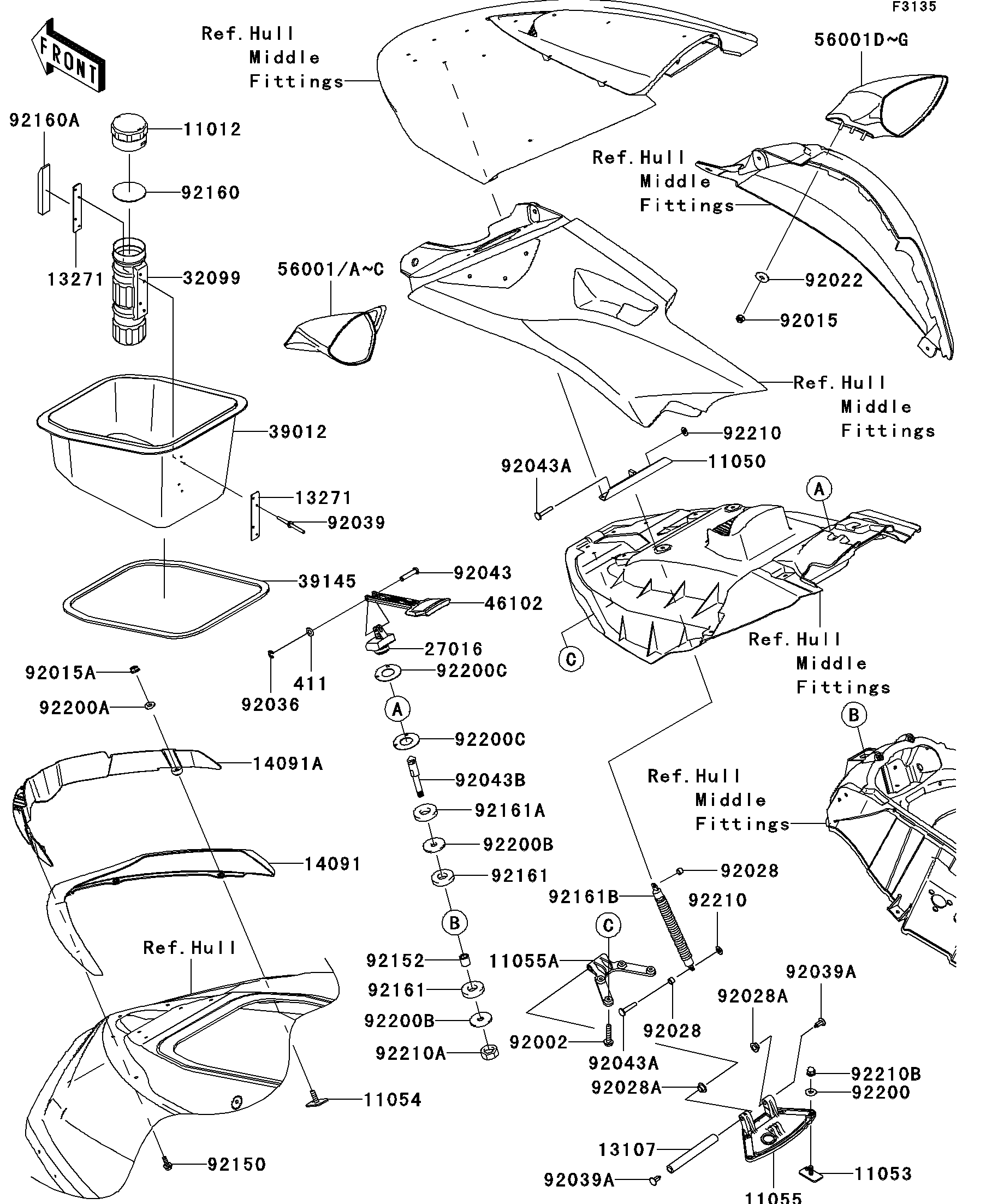

2009 Jet Ski® Ultra® 260X - Hull Front Fittings

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11050
11050
11053
11053
11054
11054
11055
11055
11055A
11055A
13107
13107
13271
13271
13271
13271
14091
14091
14091A
14091A
27016
27016
32099
32099
39012
39012
39145
39145
46102
46102
56001
56001
56001A
56001A
56001C
56001C
56001D
56001D
56001E
56001E
56001G
56001G
92002
92002
92015
92015
92015A
92015A
92022
92022
92028
92028
92028
92028
92028A
92028A
92028A
92028A
92036
92036
92039
92039
92039A
92039A
92039A
92039A
92043
92043
92043A
92043A
92043A
92043A
92043B
92043B
92150
92150
92152
92152
92160
92160
92160A
92160A
92161
92161
92161
92161
92161A
92161A
92161B
92161B
92200
92200
92200A
92200A
92200B
92200B
92200B
92200B
92200C
92200C
92200C
92200C
92210
92210
92210
92210
92210A
92210A
92210B
92210B
411
411
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,FIRE EXTINGUISHER 11012 11012-3766 1
BRACKET 11050 11050-3778 1
BRACKET 11053 11053-3776 4
BRACKET 11054 11054-3741 2
BRACKET 11055 11055-3705 1
BRACKET 11055A 11055-3706 1
SHAFT,FRONT HINGE 13107 13107-3802 1
PLATE,FIRE EXTINGUISHER 13271 13271-3775 2
COVER,FR,TOP 14091 14091-3779 1
COVER,WATER PROTECT 14091A 14091-3788 1
LOCK-ASSY,HATCH 27016 27016-3760 1
CASE,FIRE EXTINGUISHER 32099 32099-3769 1
CASE-STORAGE 39012 39012-3744 1
TRIM-SEAL,L=1627 39145 39145-3807 1
ROD,HATCH OPENER 46102 46102-3731 1
MIRROR-ASSY,LH,G.SILVER 56001 56001-3725-F2 1 US
MIRROR-ASSY,LH,S.RED 56001A 56001-3725-H1 1
MIRROR-ASSY,LH,L.GREEN 56001C 56001-3725-777 1
MIRROR-ASSY,RH,G.SILVER 56001D 56001-3726-F2 1 US
MIRROR-ASSY,RH,S.RED 56001E 56001-3726-H1 1
MIRROR-ASSY,RH,L.GREEN 56001G 56001-3726-777 1
BOLT,6X30 92002 92002-3726 4
NUT,LOCK,6MM 92015 92015-3766 6
NUT,6MM 92015A 92015-3767 2
WASHER,6.5X20X1.5 92022 92022-3710 6
BUSHING 92028 92028-3765 2
BUSHING 92028A 92028-3770 2
RING-SNAP 92036 92036-518 1
RIVET 92039 92039-3783 4
RIVET 92039A 92039-3788 2
PIN,6X27.5 92043 92043-3732 1
PIN,6X33 92043A 92043-3748 2
PIN 92043B 92043-3760 1
BOLT,5X16 92150 92150-3778 3
COLLAR,8.2X14X13.2 92152 92152-3750 1
DAMPER 92160 92160-3814 1
DAMPER 92160A 92160-3821 1
DAMPER 92161 92161-3739 2
DAMPER 92161A 92161-3747 1
DAMPER,HATCH 92161B 92161-3778 1
WASHER,6.5X16X1.0 92200 92200-3712 4
WASHER,6.5X14.5X1.5 92200A 92200-3775 2
WASHER,8.5X32X2 92200B 92200-3786 2
WASHER 92200C 92200-3799 2
NUT,SPEED,6MM 92210 92210-3739 2
NUT,LOCK,8MM 92210A 92210-3742 1
NUT,CAP,6MM 92210B 92210-3785 4
WASHER-PLAIN,6MM 411 411S0600 1
