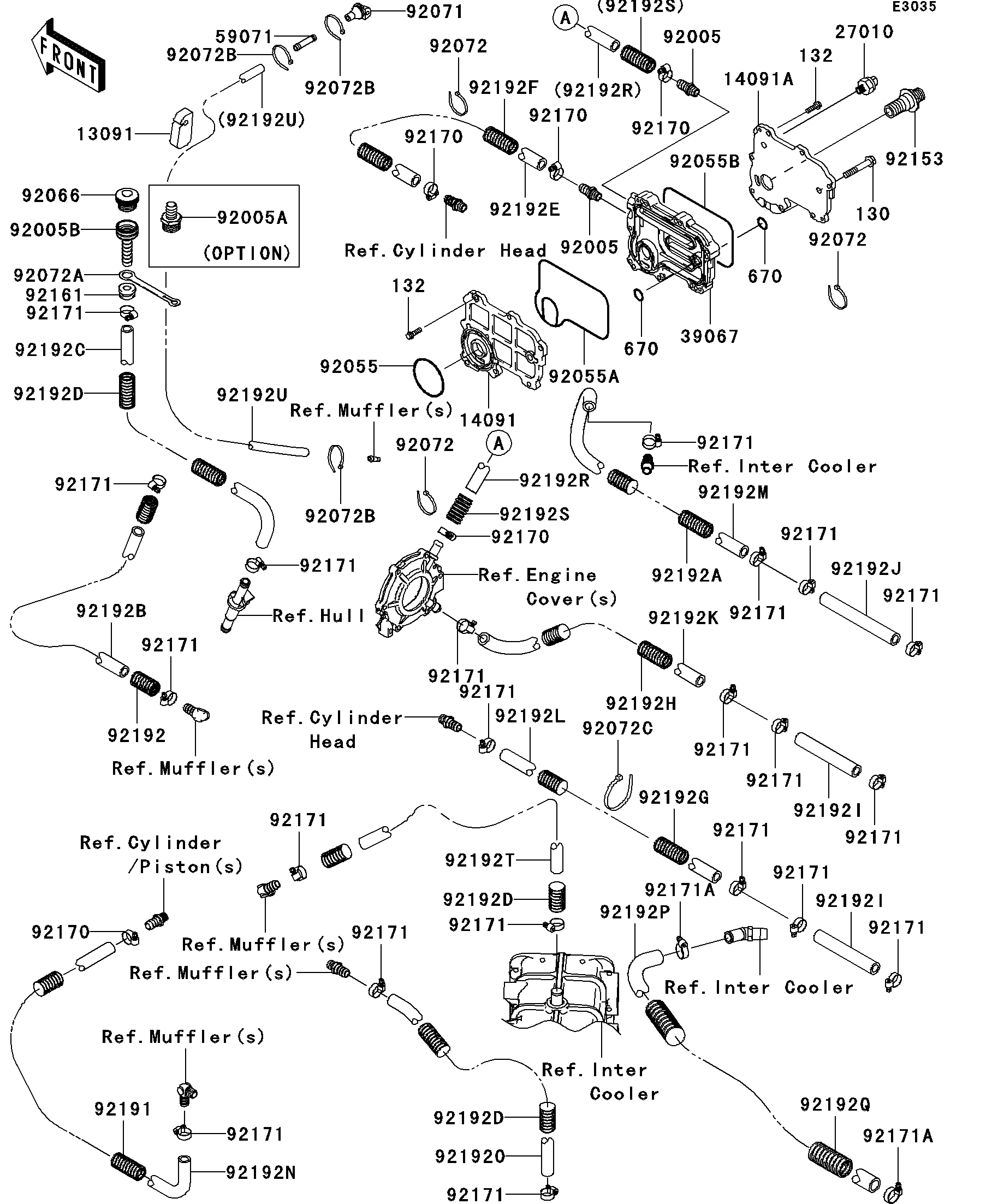

Parts Diagrams |
13091
13091
14091
14091
14091A
14091A
27010
27010
39067
39067
59071
59071
92005
92005
92005
92005
92005A
92005A
92005B
92005B
92055
92055
92055A
92055A
92055B
92055B
92066
92066
92071
92071
92072
92072
92072
92072
92072
92072
92072A
92072A
92072B
92072B
92072B
92072B
92072B
92072B
92072C
92072C
92153
92153
92161
92161
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171A
92171A
92171A
92171A
92191
92191
92192
92192
92192A
92192A
92192B
92192B
92192C
92192C
92192D
92192D
92192D
92192D
92192D
92192D
92192E
92192E
92192F
92192F
92192G
92192G
92192H
92192H
92192I
92192I
92192I
92192I
92192J
92192J
92192K
92192K
92192L
92192L
92192M
92192M
92192N
92192N
92192O
92192O
92192P
92192P
92192Q
92192Q
92192R
92192R
92192S
92192S
92192T
92192T
92192U
92192U
130
130
132
132
132
132
670
670
670
670
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HOLDER | 13091 | 13091-3712 | 1 | ||
| COVER,INSIDE | 14091 | 14091-3755 | 1 | ||
| COVER,OUTSIDE | 14091A | 14091-3756 | 1 | ||
| SWITCH,OIL PRESSURE | 27010 | 27010-3786 | 1 | ||
| COOLER-OIL | 39067 | 39067-3704 | 1 | ||
| JOINT | 59071 | 59071-3764 | 1 | ||
| FITTING | 92005 | 92005-3714 | 2 | ||
| FITTING,FLUSH | 92005A | 92005-3748 | 1 | (OPTION) | |
| FITTING,FLUSH | 92005B | 92005-3757 | 1 | ||
| RING-O,58X3 | 92055 | 92055-3767 | 1 | ||
| RING-O,INSIDE | 92055A | 92055-3770 | 1 | ||
| RING-O,OUTSIDE | 92055B | 92055-3772 | 1 | ||
| PLUG | 92066 | 92066-3787 | 1 | ||
| GROMMET | 92071 | 92071-3815 | 1 | ||
| BAND,L=152 | 92072 | 92072-3874 | 3 | ||
| BAND | 92072A | 92072-3877 | 1 | ||
| BAND,L=100.08 | 92072B | 92072-3882 | 3 | ||
| BAND,L=372.24 | 92072C | 92072-3883 | 1 | ||
| BOLT,OIL COOLER | 92153 | 92153-3713 | 1 | ||
| DAMPER | 92161 | 92161-1331 | 1 | ||
| CLAMP | 92170 | 92170-3729 | 5 | ||
| CLAMP | 92171 | 92171-3714 | 21 | ||
| CLAMP,26MM | 92171A | 92171-3720 | 2 | ||
| TUBE | 92191 | 92191-3884 | 1 | ||
| TUBE,CORRUGATED,19.5X23.8X900 | 92192 | 92192-3711 | 1 | ||
| TUBE,CORRUGATED,19.5X23.8X380 | 92192A | 92192-3714 | 1 | ||
| TUBE,12X18X1000 | 92192B | 92192-3740 | 1 | ||
| TUBE,WATER MUFFLER-HULL | 92192C | 92192-3746 | 1 | ||
| TUBE,CORRUGATED,L=600M | 92192D | 92192-3751 | 3 | ||
| TUBE,12X18X390 | 92192E | 92192-3764 | 1 | ||
| TUBE,CORRUGATED,19.5X23.8X330 | 92192F | 92192-3779 | 1 | ||
| TUBE,CORRUGATED,19.5X23.8X800 | 92192G | 92192-3781 | 1 | ||
| TUBE,CORRUGATED,19.5X23.8X500 | 92192H | 92192-3783 | 1 | ||
| TUBE,12X19X120 | 92192I | 92192-3796 | 2 | ||
| TUBE,12X19X150 | 92192J | 92192-3797 | 1 | ||
| TUBE,12X19X55&620 | 92192K | 92192-3798 | 1 | ||
| TUBE,12X19X55&1000 | 92192L | 92192-3799 | 1 | ||
| TUBE,HULL-I/C | 92192M | 92192-3800 | 1 | ||
| TUBE,12X18X70&550 | 92192N | 92192-3802 | 1 | ||
| TUBE,12X18X700 | 92192O | 92192-3803 | 1 | ||
| TUBE,I/C-HULL | 92192P | 92192-3814 | 1 | ||
| TUBE,CORRUGATED,25.1X30X370 | 92192Q | 92192-3815 | 1 | ||
| TUBE,GENE.COVER-O/C | 92192R | 92192-3816 | 1 | ||
| TUBE,CORRUGATED,19.5X23.8X700 | 92192S | 92192-3817 | 1 | ||
| TUBE,I/C-EX MANIFOLD | 92192T | 92192-3820 | 1 | ||
| TUBE,7X12X1590/30 | 92192U | 92192-3821 | 1 | ||
| BOLT-FLANGED,8X50 | 130 | 130BD0850 | 1 | ||
| BOLT-FLANGED-SMALL,6X20 | 132 | 132BD0620 | 13 | ||
| O RING,14MM | 670 | 670D2014 | 2 |
