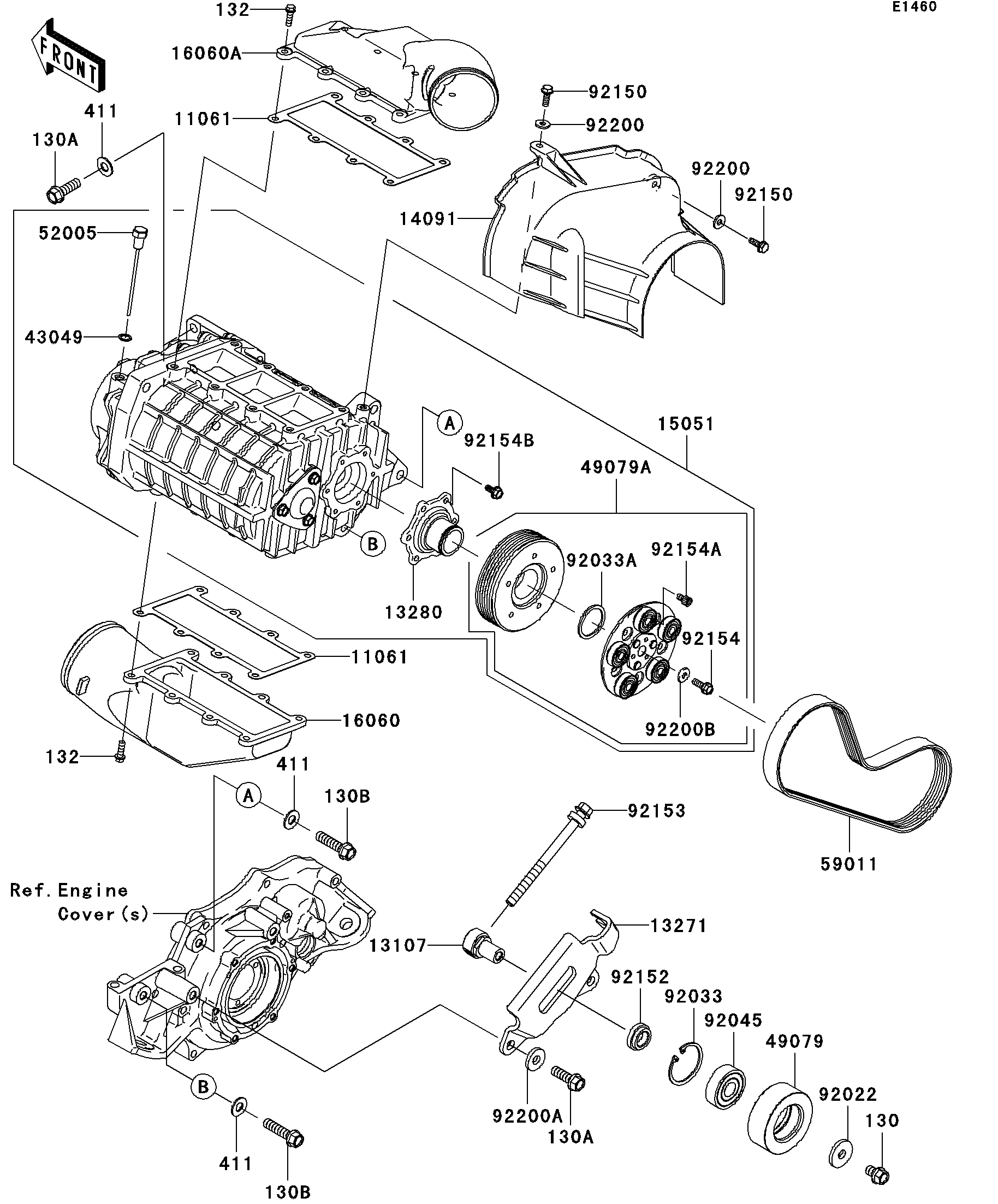

2009 Jet Ski® Ultra® 260X - Super Charger(-US-KAW10998 09)

DOWNLOAD PDF
SELECT A NEW PART
11061
11061
13107
13271
13280
14091
15051
16060
16060A
43049
49079
49079A
52005
59011
92022
92033
92033A
92045
92150
92150
92152
92153
92154
92154A
92154B
92200
92200
92200A
92200B
130
130A
130A
130B
130B
132
132
411
411
411
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET 11061 11061-3745 2
SHAFT 13107 13107-3791 1
PLATE,BELT TENSIONER 13271 13271-3922 1
HOLDER 13280 13280-3758 1
COVER,BELT 14091 14091-3811 1
COMPRESSOR-AIR,SUPERCHARGER 15051 15051-3701 1
PIPE-INTAKE,S/C IN 16060 16060-3721 1
PIPE-INTAKE,S/C OUT 16060A 16060-3722 1
PACKING 43049 43049-3718 1
PULLEY-BELT 49079 49079-3701 1
PULLEY-BELT 49079A 49079-3702 1
GAUGE,OIL 52005 52005-3712 1
BELT,6PK755 59011 59011-3701 1
WASHER,32X10.5X4 92022 92022-3023 1
RING-SNAP,47MM 92033 92033-3734 1
RING-SNAP 92033A 92033-3736 1
BEARING-BALL,17X47X14 92045 92045-3742 1
BOLT,6X18 92150 92150-3729 2
COLLAR,17X30X9.5 92152 92152-3747 1
BOLT 92153 92153-3758 1
BOLT,6X18 92154 92154-3701 1
BOLT,6X10 92154A 92154-3702 5
BOLT,6X14 92154B 92154-3703 6
WASHER,6.5X16X2.0 92200 92200-1543 2
WASHER,10.5X26X4 92200A 92200-3798 2
WASHER 92200B 92200-3801 1
BOLT-FLANGED,10X14 130 130CD1014 1
BOLT-FLANGED,10X30 130A 130CD1030 4
BOLT-FLANGED,10X40 130B 130CD1040 2
BOLT-FLANGED-SMALL,6X18 132 132BD0618 16
WASHER-PLAIN,10MM 411 411S1000 4
