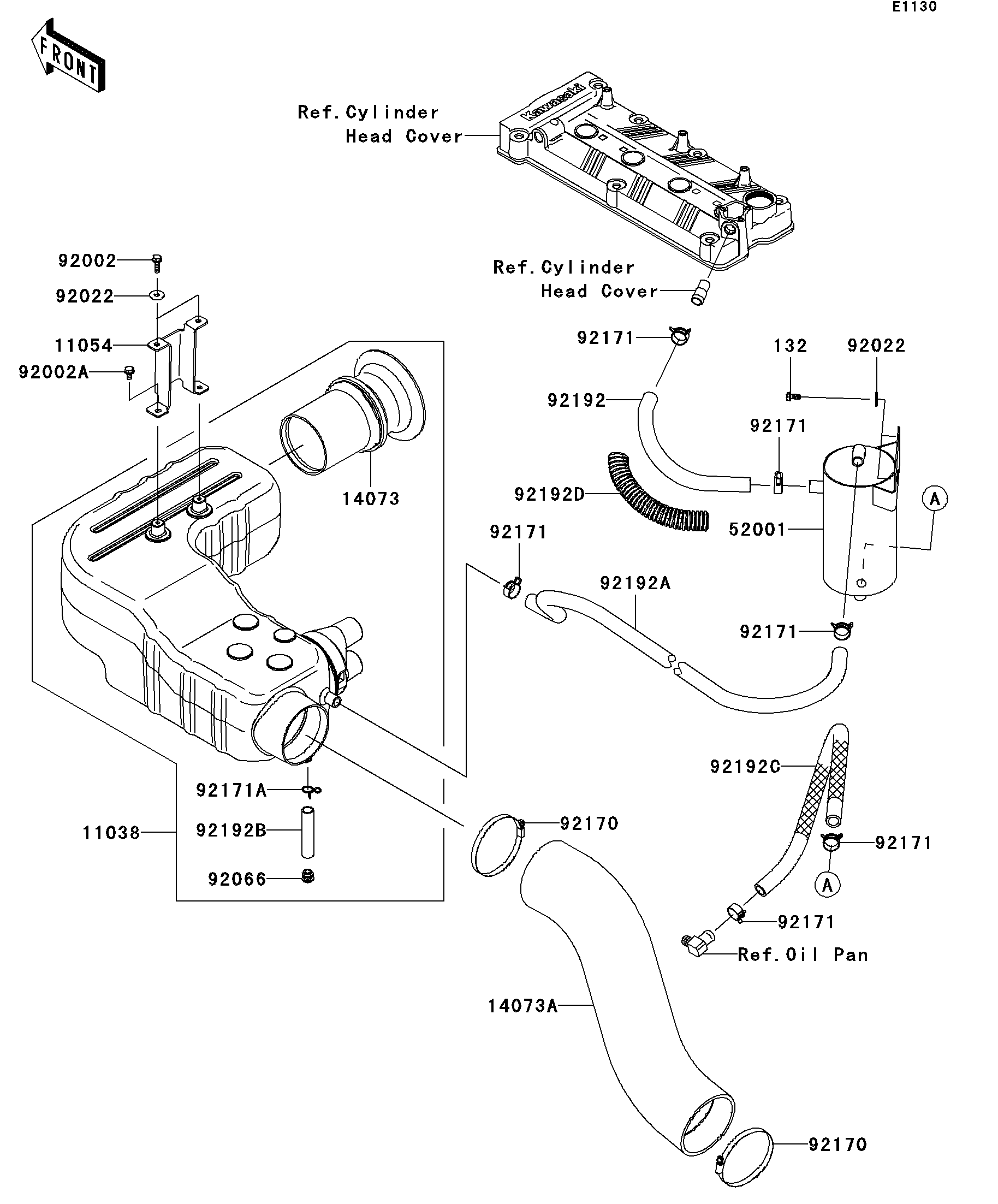

2009 Jet Ski® Ultra® 260X - Intake Silencer

DOWNLOAD PDF
SELECT A NEW PART
11038
11054
14073
14073A
52001
92002
92002A
92022
92022
92066
92170
92170
92171
92171
92171
92171
92171
92171
92171A
92192
92192A
92192B
92192C
92192D
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-ASSY-AIR FILTER 11038 11038-3709 1
BRACKET,AIR BOX 11054 11054-3745 1
DUCT,INLET 14073 14073-3826 1
DUCT,A/C-S/C 14073A 14073-3833 1
TANK-OIL,SEPARATOR 52001 52001-3741 1
BOLT,6X20 92002 92002-3755 2
BOLT,6X12 92002A 92002-3763 2
WASHER,6.5X20X1.5 92022 92022-3710 4
PLUG,DRAIN 92066 92066-3792 1
CLAMP 92170 92170-3760 2
CLAMP,TUBE 92171 92171-3710 6
CLAMP,15.75MM 92171A 92171-3721 1
TUBE,HEAD-OIL TANK 92192 92192-3768 1
TUBE,OIL TANK-A/C 92192A 92192-3769 1
TUBE,12.7X15.9X75 92192B 92192-3794 1
TUBE,OIL TANK-OIL PAN 92192C 92192-3807 1
TUBE,CORRUGATED,L=160 92192D 92192-3832 1
BOLT-FLANGED-SMALL,6X14 132 132BD0614 2
