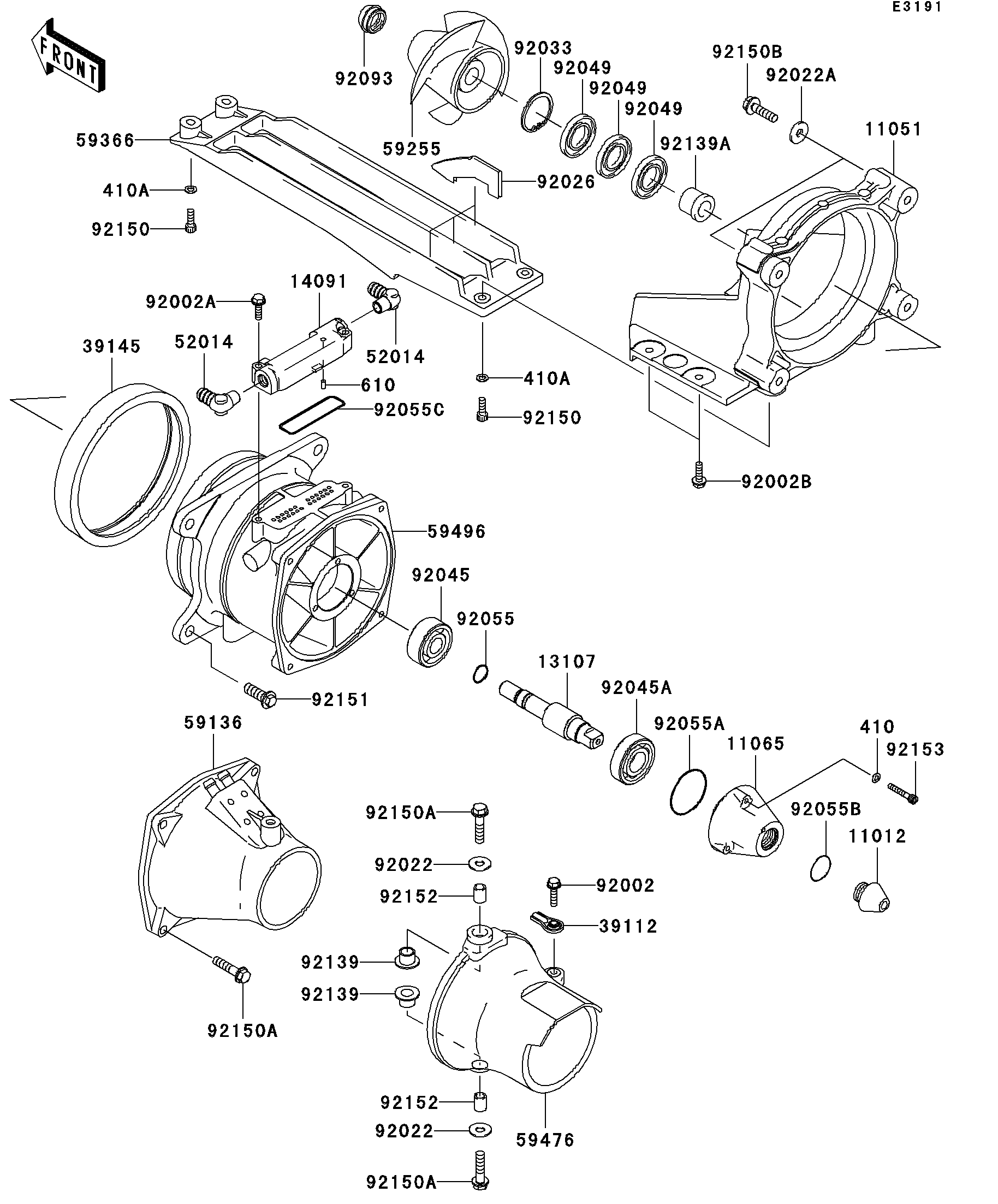

2009 Jet Ski® STX - Jet Pump

DOWNLOAD PDF
SELECT A NEW PART
11012
11051
11065
13107
14091
39112
39145
52014
52014
59136
59255
59366
59476
59496
92002
92002A
92002B
92022
92022
92022A
92026
92033
92045
92045A
92049
92049
92049
92055
92055A
92055B
92055C
92093
92139
92139
92139A
92150
92150
92150A
92150A
92150A
92150B
92151
92152
92152
92153
410
410A
410A
610
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-3786 1
BRACKET 11051 11051-3763 1
CAP 11065 11065-3733 1
SHAFT,JET PUMP 13107 13107-3794 1
COVER,VANE GUIDE 14091 14091-3817 1
RODEND-TIE 39112 39112-3703 1
TRIM-SEAL 39145 39145-3742 1
ELBOW 52014 52014-3711 2
NOZZLE-PUMP 59136 59136-3760 1
IMPELLER-COMP 59255 59255-3729 1
GRATE 59366 59366-3719 1
NOZZLE-STRG 59476 59476-3743 1
VANE-GUIDE 59496 59496-3759 1
BOLT,6X25 92002 92002-3714 1
BOLT,6X30 92002A 92002-3726 2
BOLT,6X20 92002B 92002-3755 4
WASHER,PLAIN 92022 92022-3026 2
WASHER,8.4X23X2.5 92022A 92022-3744 2
SPACER 92026 92026-3742 3
RING-SNAP 92033 92033-3730 1
BEARING-BALL,6303R-6 92045 92045-3744 1
BEARING-BALL,62/22 2RS 92045A 92045-3745 1
SEAL-OIL 92049 92049-3739 3
RING-O,13.0X1.9 92055 92055-1011 1
RING-O 92055A 92055-3741 1
RING-O 92055B 92055-3744 1
RING-O,70.2X74.0X1.90 92055C 92055-3765 1
SEAL 92093 92093-3749 1
BUSHING 92139 92139-3701 2
BUSHING 92139A 92139-3715 1
BOLT,SOCKET,6X18 92150 92150-3775 4
BOLT,8X35 92150A 92150-3792 6
BOLT,FLANGED,8X30 92150B 92150-3803 2
BOLT,10X30 92151 92151-3706 4
COLLAR,8.2X11.8X15 92152 92152-3703 2
BOLT,SOCKET,5X30 92153 92153-3742 3
W-PLAIN-S,5MM 410 410S0500 3
WASHER-PLAIN-SMALL,6MM 410A 410S0600 4
ROLLER,4X8 610 610A0408 1
