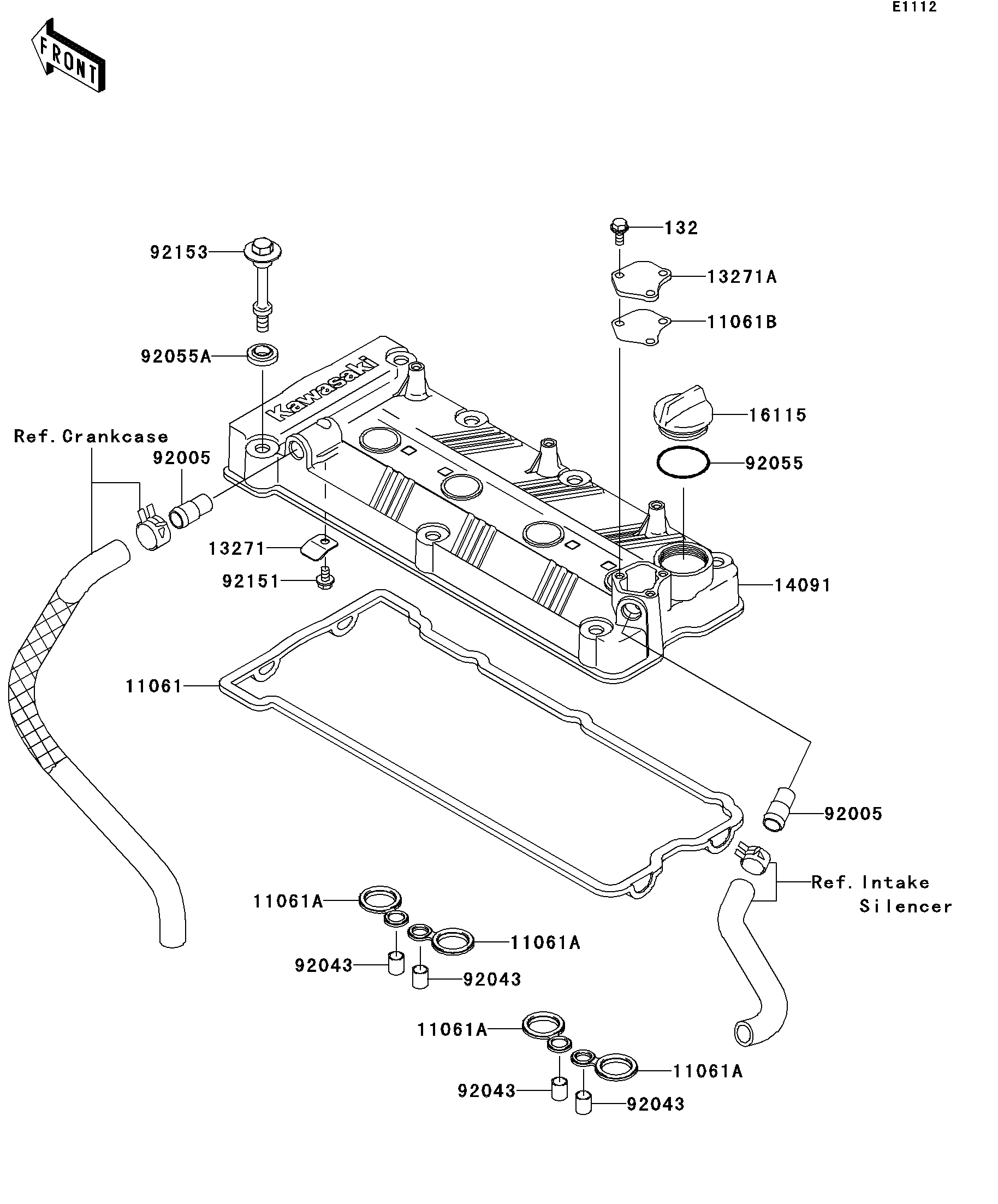

2009 Jet Ski® STX - Cylinder Head Cover
11061
11061A
11061A
11061A
11061A
11061B
13271
13271A
14091
16115
92005
92005
92043
92043
92043
92043
92055
92055A
92151
92153
132
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,HEAD COVER | 11061 | 11061-0090 | 1 | ||
| GASKET,SPARK PLUG HOLE | 11061A | 11061-0105 | 4 | ||
| GASKET,PLATE | 11061B | 11061-3728 | 1 | ||
| PLATE | 13271 | 13271-3851 | 1 | ||
| PLATE | 13271A | 13271-3898 | 1 | ||
| COVER,HEAD | 14091 | 14091-3822 | 1 | ||
| CAP-OIL FILLER | 16115 | 16115-1064 | 1 | ||
| FITTING | 92005 | 92005-3741 | 2 | ||
| PIN,10.1X12X14 | 92043 | 92043-4009 | 4 | ||
| RING-O,38X1.9 | 92055 | 92055-1295 | 1 | ||
| RING-O,HEAD COVER BOLT | 92055A | 92055-1352 | 7 | ||
| BOLT,FLANGED,6X10 | 92151 | 92151-1822 | 1 | ||
| BOLT,HEAD COVER | 92153 | 92153-3706 | 7 | ||
| BOLT-FLANGED-SMALL,6X14 | 132 | 132BD0614 | 3 |
