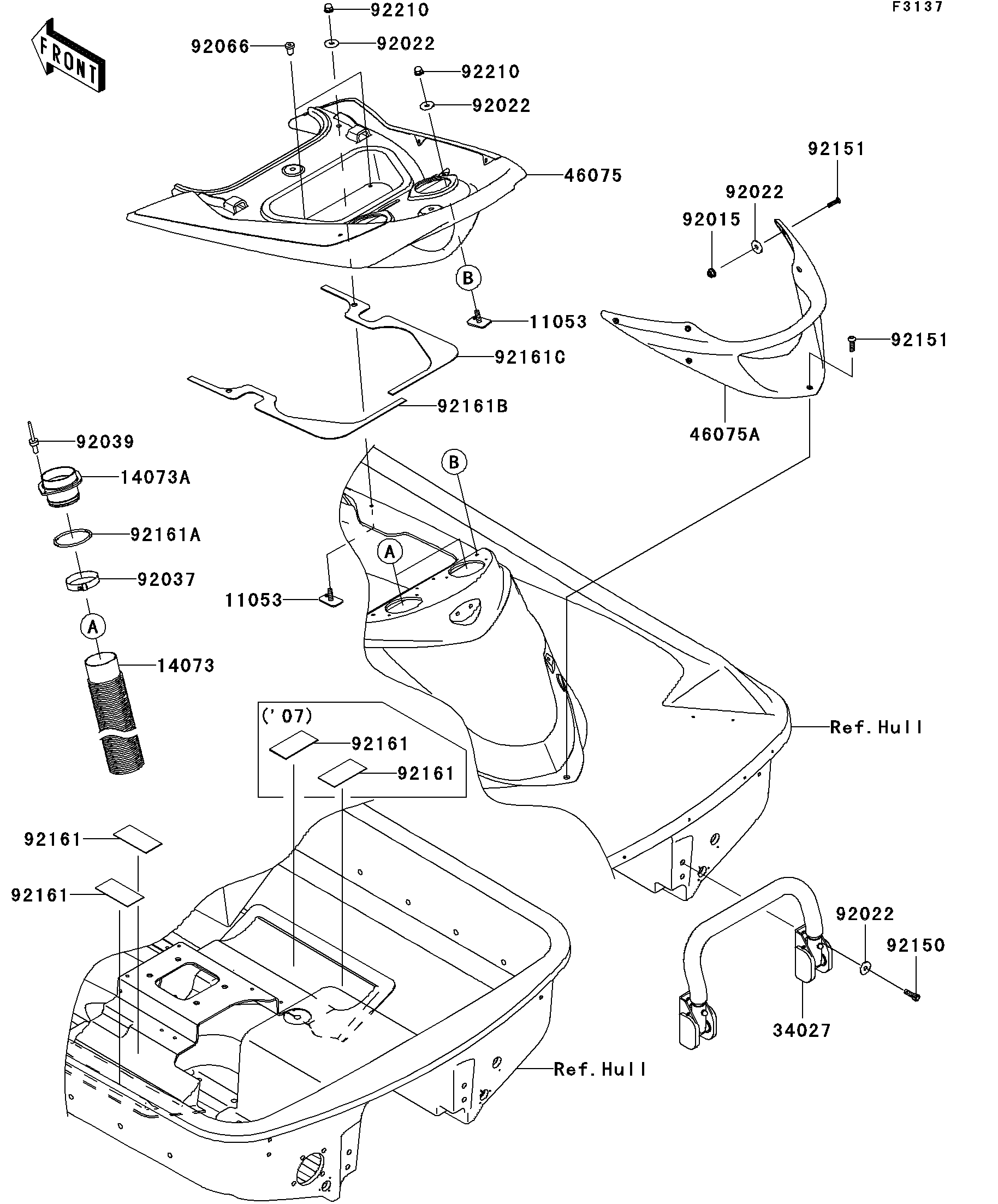

2008 Jet Ski® Ultra® 250X - Hull Rear Fittings
11053
11053
14073
14073A
34027
46075
46075A
92015
92022
92022
92022
92022
92037
92039
92066
92150
92151
92151
92161
92161
92161
92161
92161A
92161B
92161C
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11053 | 11053-3776 | 4 | ||
| DUCT,L=800 | 14073 | 14073-3804 | 2 | ||
| DUCT | 14073A | 14073-3805 | 2 | ||
| STEP-ASSY | 34027 | 34027-3709 | 1 | ||
| GRIP,RR,UPP | 46075 | 46075-3763 | 1 | ||
| GRIP,HANDLE | 46075A | 46075-3765 | 1 | ||
| NUT,6MM | 92015 | 92015-3767 | 6 | ||
| WASHER,6.5X20X1.5 | 92022 | 92022-3710 | 14 | ||
| CLAMP | 92037 | 92037-3738 | 2 | ||
| RIVET | 92039 | 92039-3775 | 4 | ||
| PLUG | 92066 | 92066-3773 | 2 | ||
| BOLT,SOCKET,6X18 | 92150 | 92150-3775 | 4 | ||
| BOLT,SOCKET,6X20 | 92151 | 92151-1749 | 7 | ||
| DAMPER | 92161 | 92161-3728 | 2 | ||
| DAMPER | 92161A | 92161-3769 | 2 | ||
| DAMPER | 92161B | 92161-3781 | 1 | ||
| DAMPER | 92161C | 92161-3782 | 1 | ||
| NUT,CAP,6MM | 92210 | 92210-3785 | 4 |
| BRACKET | |
| REF # | 11053 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DUCT,L=800 | |
| REF # | 14073 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DUCT | |
| REF # | 14073A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| STEP-ASSY | |
| REF # | 34027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GRIP,RR,UPP | |
| REF # | 46075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GRIP,HANDLE | |
| REF # | 46075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X20X1.5 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 14 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PLUG | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X18 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X20 | |
| REF # | 92151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,CAP,6MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
