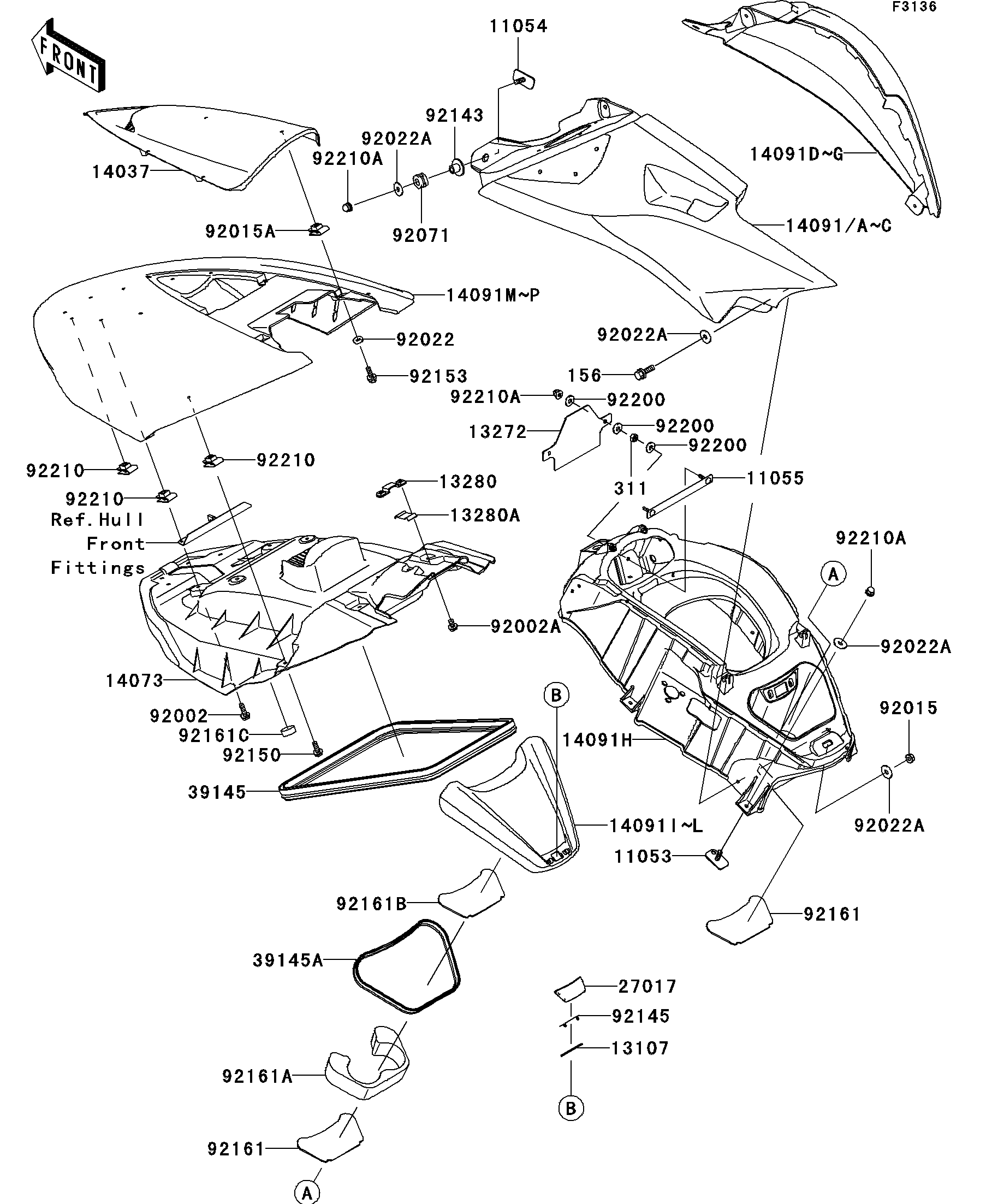

2008 Jet Ski® Ultra® 250X - Hull Middle Fittings

DOWNLOAD PDF
SELECT A NEW PART
11053
11053
11054
11054
11055
11055
13107
13107
13272
13272
13280
13280
13280A
13280A
14037
14037
14073
14073
14091
14091
14091B
14091B
14091C
14091C
14091D
14091D
14091F
14091F
14091G
14091G
14091H
14091H
14091I
14091I
14091K
14091K
14091L
14091L
14091M
14091M
14091O
14091O
14091P
14091P
27017
27017
39145
39145
39145A
39145A
92002
92002
92002A
92002A
92015
92015
92015A
92015A
92022
92022
92022A
92022A
92022A
92022A
92022A
92022A
92022A
92022A
92071
92071
92143
92143
92145
92145
92150
92150
92153
92153
92161
92161
92161
92161
92161A
92161A
92161B
92161B
92161C
92161C
92200
92200
92200
92200
92200
92200
92210
92210
92210
92210
92210
92210
92210A
92210A
92210A
92210A
92210A
92210A
156
156
311
311
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11053 11053-3776 6
BRACKET 11054 11054-3741 2
BRACKET,INTAKE COVER 11055 11055-3707 1
SHAFT 13107 13107-3790 1
PLATE,INTAKE COVER 13272 13272-3710 1
HOLDER,ROD 13280 13280-3749 1
HOLDER,ROD 13280A 13280-3751 1
SCREEN,METER COVER 14037 14037-3711 1
DUCT,HATCH,INNER 14073 14073-3806 1
COVER,SIDE,LH,S.RED 14091 14091-3780-H1 1
COVER,SIDE,LH,BLUE 14091B 14091-3780-16F 1 US
COVER,SIDE,LH,L.GREEN 14091C 14091-3780-777 1
COVER,SIDE,RH,S.RED 14091D 14091-3781-H1 1
COVER,SIDE,RH,BLUE 14091F 14091-3781-16F 1 US
COVER,SIDE,RH,L.GREEN 14091G 14091-3781-777 1
COVER,HANDLE,F.BLACK 14091H 14091-3782-6Z 1
COVER,CENTER STORAGE,S.RED 14091I 14091-3783-H1 1
COVER,CENTER STORAGE,BLUE 14091K 14091-3783-16F 1 US
COVER,CENTER STORAGE,L.GREEN 14091L 14091-3783-777 1
COVER,HATCH,S.RED 14091M 14091-3784-H1 1
COVER,HATCH,BLUE 14091O 14091-3784-16F 1 US
COVER,HATCH,L.GREEN 14091P 14091-3784-777 1
LOCK,CENTER STORAGE 27017 27017-3726 1
TRIM-SEAL 39145 39145-3793 1
TRIM-SEAL,L=720 39145A 39145-3802 1
BOLT,6X20 92002 92002-3755 2
BOLT,6X12 92002A 92002-3763 2
NUT,LOCK,6MM 92015 92015-3766 4
NUT,CLIP,5MM 92015A 92015-3830 4
WASHER,5X16X1.5 92022 92022-3041 4
WASHER,6.5X20X1.5 92022A 92022-3710 16
GROMMET 92071 92071-3716 2
COLLAR 92143 92143-3750 2
SPRING 92145 92145-3729 1
BOLT,6X18 92150 92150-3729 4
BOLT,5X20 92153 92153-3744 4
DAMPER,CENTER STORAGE 92161 92161-3773 2
DAMPER,CENTER STORAGE 92161A 92161-3775 1
DAMPER,CENTER STORAGE 92161B 92161-3777 1
DAMPER 92161C 92161-3790 2
WASHER,6.5X16X2.0 92200 92200-1543 6
NUT,6MM 92210 92210-3768 10
NUT,CAP,6MM 92210A 92210-3785 10
BOLT-WP,6X20 156 156R0620 4
NUT-HEX,6MM 311 311R0600 2
