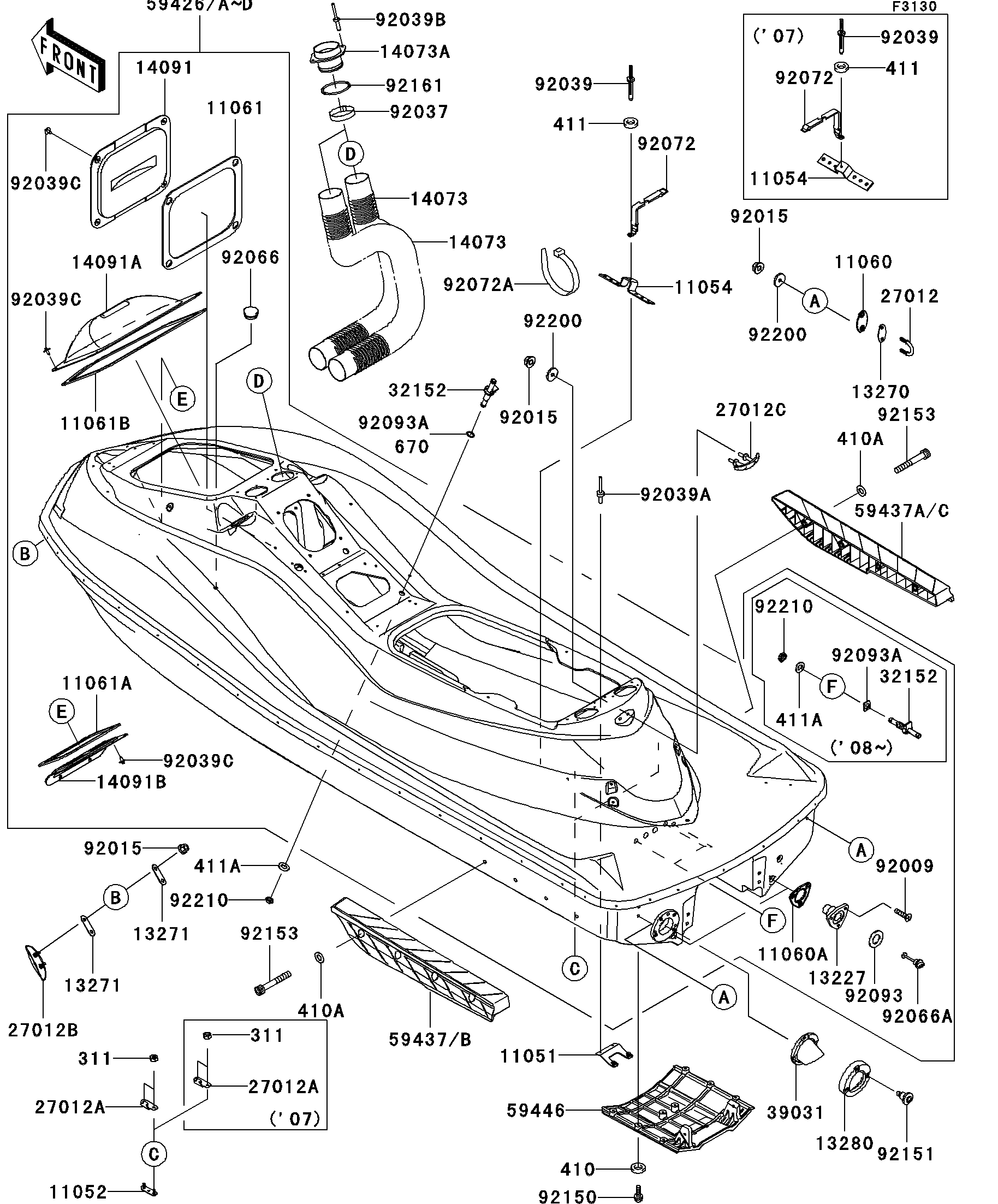

2008 Jet Ski® Ultra® 250X - Hull

DOWNLOAD PDF
SELECT A NEW PART
11051
11051
11052
11052
11054
11054
11054
11054
11060
11060
11060A
11060A
11061
11061
11061A
11061A
11061B
11061B
13227
13227
13270
13270
13271
13271
13271
13271
13280
13280
14073
14073
14073
14073
14073A
14073A
14091
14091
14091A
14091A
14091B
14091B
27012
27012
27012A
27012A
27012A
27012A
27012B
27012B
27012C
27012C
32152
32152
32152
32152
39031
39031
59426B
59426B
59426C
59426C
59426D
59426D
59437B
59437B
59437C
59437C
59446
59446
92009
92009
92015
92015
92015
92015
92015
92015
92037
92037
92039
92039
92039
92039
92039A
92039A
92039B
92039B
92039C
92039C
92039C
92039C
92039C
92039C
92066
92066
92066A
92066A
92072
92072
92072
92072
92072A
92072A
92093
92093
92093A
92093A
92093A
92093A
92150
92150
92151
92151
92153
92153
92153
92153
92161
92161
92200
92200
92200
92200
92210
92210
92210
92210
311
311
311
311
410
410
410A
410A
410A
410A
411
411
411
411
411A
411A
411A
411A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,BREATHER-BILGE 11051 11051-3802 1
BRACKET,RR DUCT 11052 11052-3712 1
BRACKET,WATER MUFFLER 11054 11054-3735 1
GASKET,U HOOK,RR 11060 11060-3800 2
GASKET,DRAIN PLUG 11060A 11060-3801 2
GASKET,ECU COVER 11061 11061-3749 1
GASKET,STORAGE CASE COVER 11061A 11061-3753 1
GASKET,BATTERY COVER 11061B 11061-3754 1
HOUSING,DRAIN PLUG,F.BLACK 13227 13227-3721-6Z 2
PLATE 13270 13270-3860 2
PLATE 13271 13271-3724 2
HOLDER,EXHAUST VALVE 13280 13280-3718 1
DUCT 14073 14073-3804 2
DUCT 14073A 14073-3805 2
COVER,ECU 14091 14091-3786 1
COVER,BATTERY 14091A 14091-3809 1
COVER,STORAGE CASE 14091B 14091-3819 1
HOOK 27012 27012-3797 2
HOOK 27012A 27012-3816 1
HOOK,BOW,F.BLACK 27012B 27012-3822-6Z 1
HOOK,TOWING 27012C 27012-3860 1
PIPE 32152 32152-3748 4
CAP-END 39031 39031-3704 1
HULL-COMP,S.RED 59426B 59426-3965-H1 1 US
HULL-COMP,BLUE 59426C 59426-3965-16F 1 US
HULL-COMP,J.WHITE 59426D 59426-3965-8C 1 US
STABILIZER,LH,F.BLACK 59437B 59437-3741-6Z 1
STABILIZER,RH,F.BLACK 59437C 59437-3742-6Z 1
COVER-JET PUMP 59446 59446-3759 1
SCREW,TAPPING,4X16 92009 92009-3849 6
NUT,FLANGED,8MM 92015 92015-3709 8
CLAMP 92037 92037-3738 2
RIVET 92039 92039-3741 1
RIVET 92039A 92039-3755 2
RIVET 92039B 92039-3775 4
RIVET 92039C 92039-3785 14
PLUG 92066 92066-1306 1
PLUG,RR,DRAIN,F.BLACK 92066A 92066-3783-6Z 2
BAND,314X18 92072 92072-3814 1
BAND,L=535 92072A 92072-3881 1
SEAL 92093 92093-3720 2
SEAL 92093A 92093-3783 4
BOLT,SOCKET,6X18 92150 92150-3775 8
BOLT,SOCKET,M6,SHOULDER 92151 92151-3746 3
BOLT,SOCKET,8X55 92153 92153-3746 8
DAMPER 92161 92161-3769 2
WASHER 92200 92200-3779 6
NUT 92210 92210-3707 4
NUT-HEX,6MM 311 311R0600 2
WASHER-PLAIN-SMALL,6MM 410 410S0600 8
WASHER-PLAIN-SMALL,8MM 410A 410S0800 8
WASHER-PLAIN,5MM 411 411S0500 1
WASHER-PLAIN 411A 411S1600 4
