Parts Diagrams |

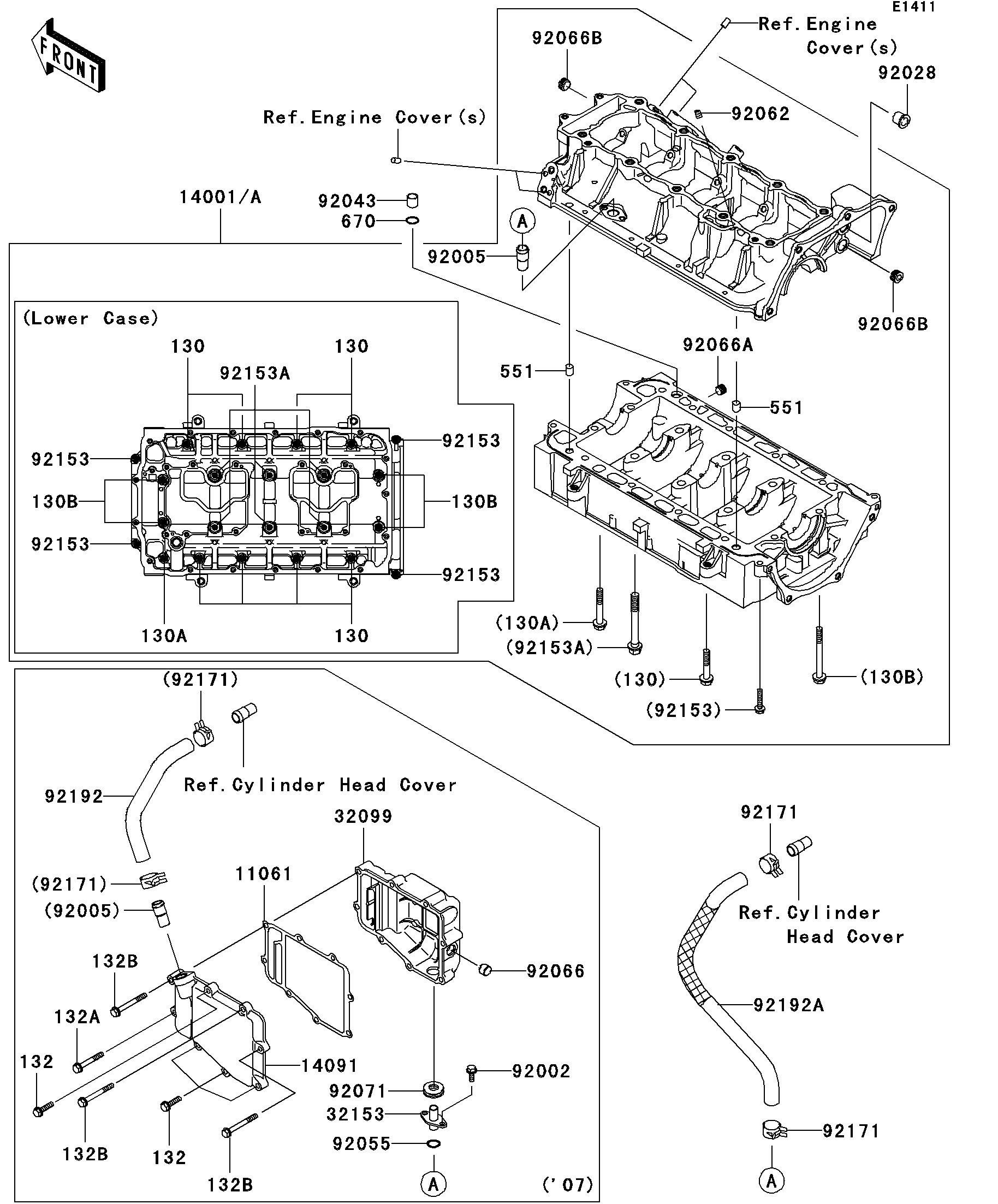

14001A
92005
92028
92043
92062
92066A
92066B
92066B
92153
92153
92153
92153
92153A
92171
92171
92192A
130
130
130
130A
130B
130B
551
551
670
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SET-CRANKCASE | 14001A | 14001-3746 | 1 | ||
| FITTING | 92005 | 92005-3741 | 1 | ||
| BUSHING | 92028 | 92028-3718 | 1 | ||
| PIN,11.5X14X14 | 92043 | 92043-1279 | 1 | ||
| NOZZLE | 92062 | 92062-0004 | 4 | ||
| PLUG | 92066A | 92066-3778 | 1 | ||
| PLUG | 92066B | 92066-3782 | 2 | ||
| BOLT,6X30 | 92153 | 92153-3707 | 4 | ||
| BOLT,10X85 | 92153A | 92153-3711 | 6 | ||
| CLAMP,TUBE | 92171 | 92171-3710 | 2 | ||
| TUBE,HEAD-CRANKCASE | 92192A | 92192-3829 | 1 | ||
| BOLT-FLANGED,8X45 | 130 | 130CD0845 | 8 | ||
| BOLT-FLANGED,8X55 | 130A | 130CD0855 | 1 | ||
| BOLT-FLANGED,8X85 | 130B | 130CD0885 | 4 | ||
| PIN-DOWEL | 551 | 551R1012 | 2 | ||
| O RING,14MM | 670 | 670D2014 | 1 |
