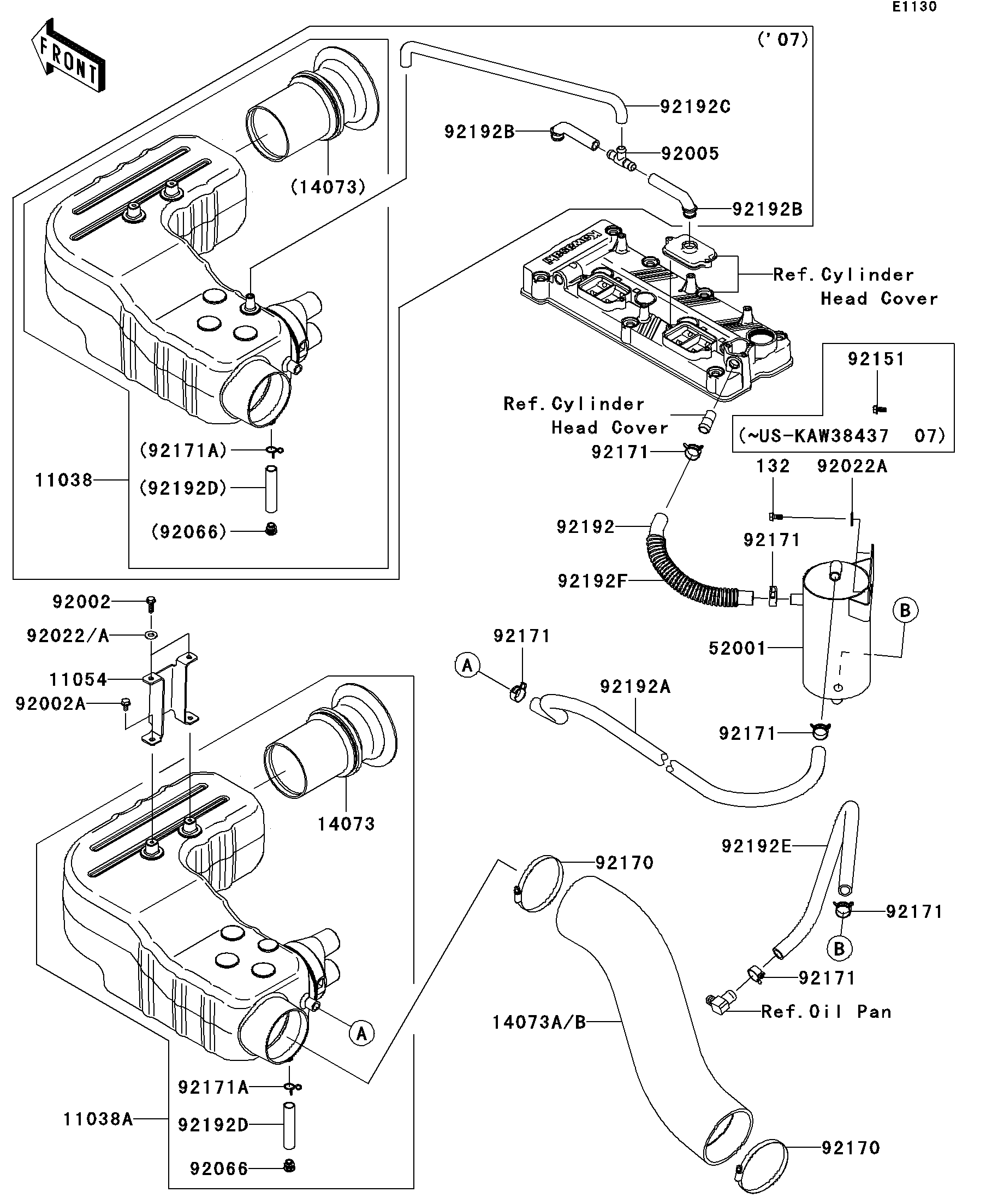

2008 Jet Ski® Ultra® 250X - Intake Silencer
11038A
11054
14073
14073B
52001
92002
92002A
92022A
92022A
92066
92170
92170
92171
92171
92171
92171
92171
92171
92171A
92192
92192A
92192D
92192E
92192F
132
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CASE-ASSY-AIR FILTER | 11038A | 11038-3709 | 1 | ||
| BRACKET,AIR BOX | 11054 | 11054-3745 | 1 | ||
| DUCT,INLET | 14073 | 14073-3826 | 1 | ||
| DUCT,A/C-S/C | 14073B | 14073-3833 | 1 | ||
| TANK-OIL,SEPARATOR | 52001 | 52001-3741 | 1 | ||
| BOLT,6X20 | 92002 | 92002-3755 | 2 | ||
| BOLT,6X12 | 92002A | 92002-3763 | 2 | ||
| WASHER,6.5X20X1.5 | 92022A | 92022-3710 | 4 | (US-KAW38438 07 - ) | |
| PLUG,DRAIN | 92066 | 92066-3792 | 1 | ||
| CLAMP | 92170 | 92170-3760 | 2 | ||
| CLAMP,TUBE | 92171 | 92171-3710 | 6 | ||
| CLAMP,15.75MM | 92171A | 92171-3721 | 1 | ||
| TUBE,HEAD-OIL TANK | 92192 | 92192-3768 | 1 | ||
| TUBE,OIL TANK-A/C | 92192A | 92192-3769 | 1 | ||
| TUBE,12.7X15.9X75 | 92192D | 92192-3794 | 1 | ||
| TUBE,OIL TANK-OIL PAN | 92192E | 92192-3807 | 1 | ||
| TUBE,CORRUGATED,L=160 | 92192F | 92192-3832 | 1 | ||
| BOLT-FLANGED-SMALL,6X14 | 132 | 132BD0614 | 2 | (US-KAW38438 07 - ) |
| CASE-ASSY-AIR FILTER | |
| REF # | 11038A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,AIR BOX | |
| REF # | 11054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DUCT,INLET | |
| REF # | 14073 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DUCT,A/C-S/C | |
| REF # | 14073B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TANK-OIL,SEPARATOR | |
| REF # | 52001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X20 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X12 | |
| REF # | 92002A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X20X1.5 | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | (US-KAW38438 07 - ) |
| PLUG,DRAIN | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92170 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP,TUBE | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| CLAMP,15.75MM | |
| REF # | 92171A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,HEAD-OIL TANK | |
| REF # | 92192 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,OIL TANK-A/C | |
| REF # | 92192A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,12.7X15.9X75 | |
| REF # | 92192D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,OIL TANK-OIL PAN | |
| REF # | 92192E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,CORRUGATED,L=160 | |
| REF # | 92192F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL,6X14 | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | (US-KAW38438 07 - ) |
