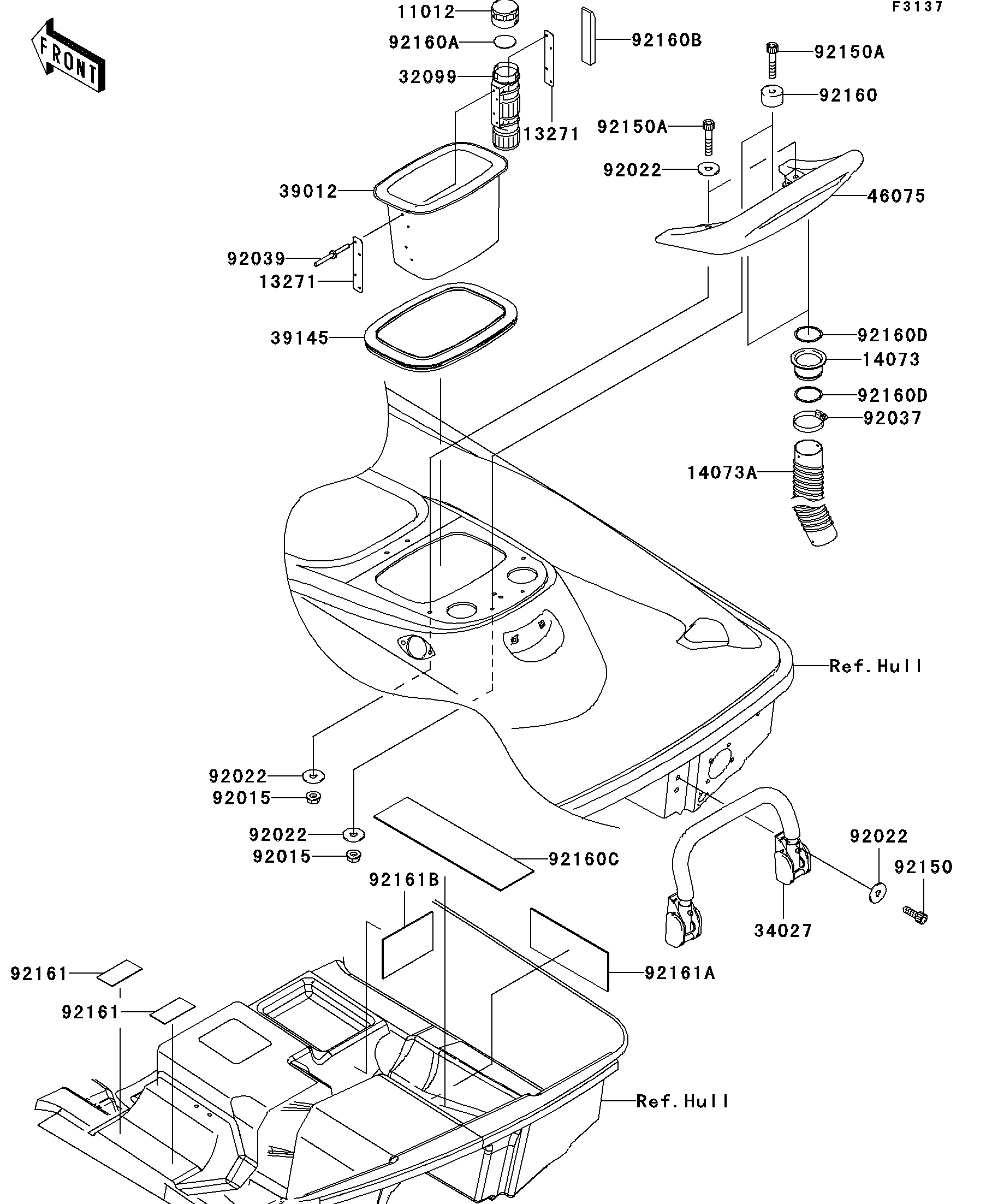

2005 STX-12F - Hull Rear Fittings

DOWNLOAD PDF
SELECT A NEW PART
11012
13271
13271
14073
14073A
32099
34027
39012
39145
46075
92015
92015
92022
92022
92022
92022
92037
92039
92150
92150A
92150A
92160
92160A
92160B
92160C
92160D
92160D
92161
92161
92161A
92161B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,FIRE EXTINGUISHER 11012 11012-3766 1
PLATE,FIRE EXTINGUISHER 13271 13271-3775 2
DUCT 14073 14073-3798 2
DUCT 14073A 14073-3799 2
CASE,FIRE EXTINGUISHER 32099 32099-3769 1
STEP-ASSY 34027 34027-3707 1
CASE-STORAGE,RR 39012 39012-3727 1
TRIM-SEAL,REAR STORAGE CASE 39145 39145-3783 1
GRIP,RR,F.BLACK 46075 46075-3755-6Z 1
NUT,6MM 92015 92015-3767 4
WASHER,6.5X20X1.5 92022 92022-3710 10
CLAMP 92037 92037-3738 2
RIVET 92039 92039-3783 4
BOLT,SOCKET,6X18 92150 92150-3775 4
BOLT,SOCKET,6X30 92150A 92150-3822 4
DAMPER 92160 92160-3738 2
DAMPER 92160A 92160-3814 1
DAMPER 92160B 92160-3821 1
DAMPER 92160C 92160-3839 1
DAMPER 92160D 92160-3910 4
DAMPER 92161 92161-3728 2
DAMPER 92161A 92161-3744 1
DAMPER 92161B 92161-3745 1
