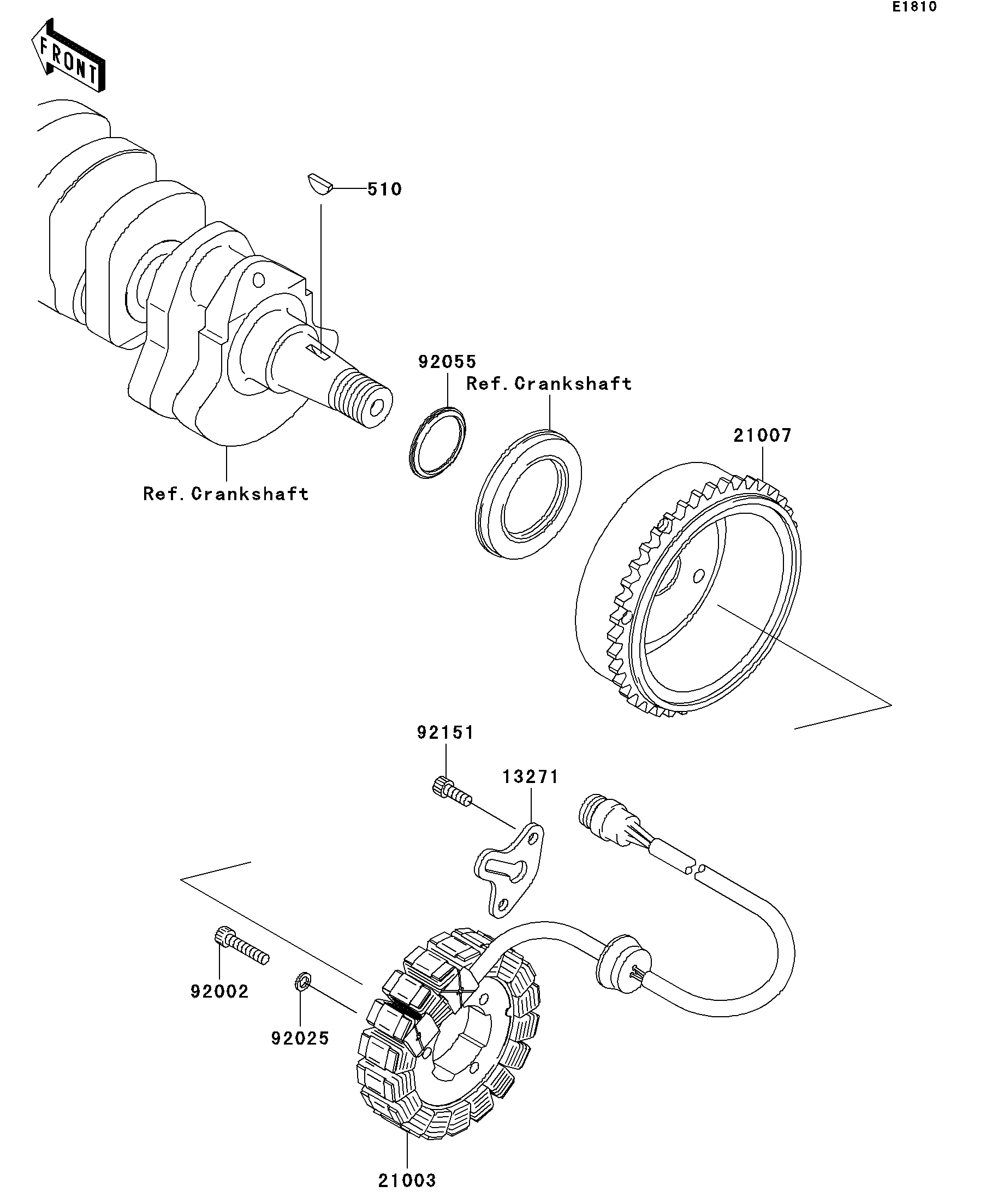

13271
21003
21007
92002
92025
92055
92151
510
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE 13271 13271-3847 1
STATOR 21003 21003-3749 1
ROTOR 21007 21007-3731 1
BOLT,6X28 92002 92002-1537 3
SHIM,T=1.4 92025 92025-1502 3
RING-O 92055 92055-3769 1
BOLT,SOCKET,6X16 92151 92151-3770 2
KEY-WOODRUFF 510 510A4200 1
