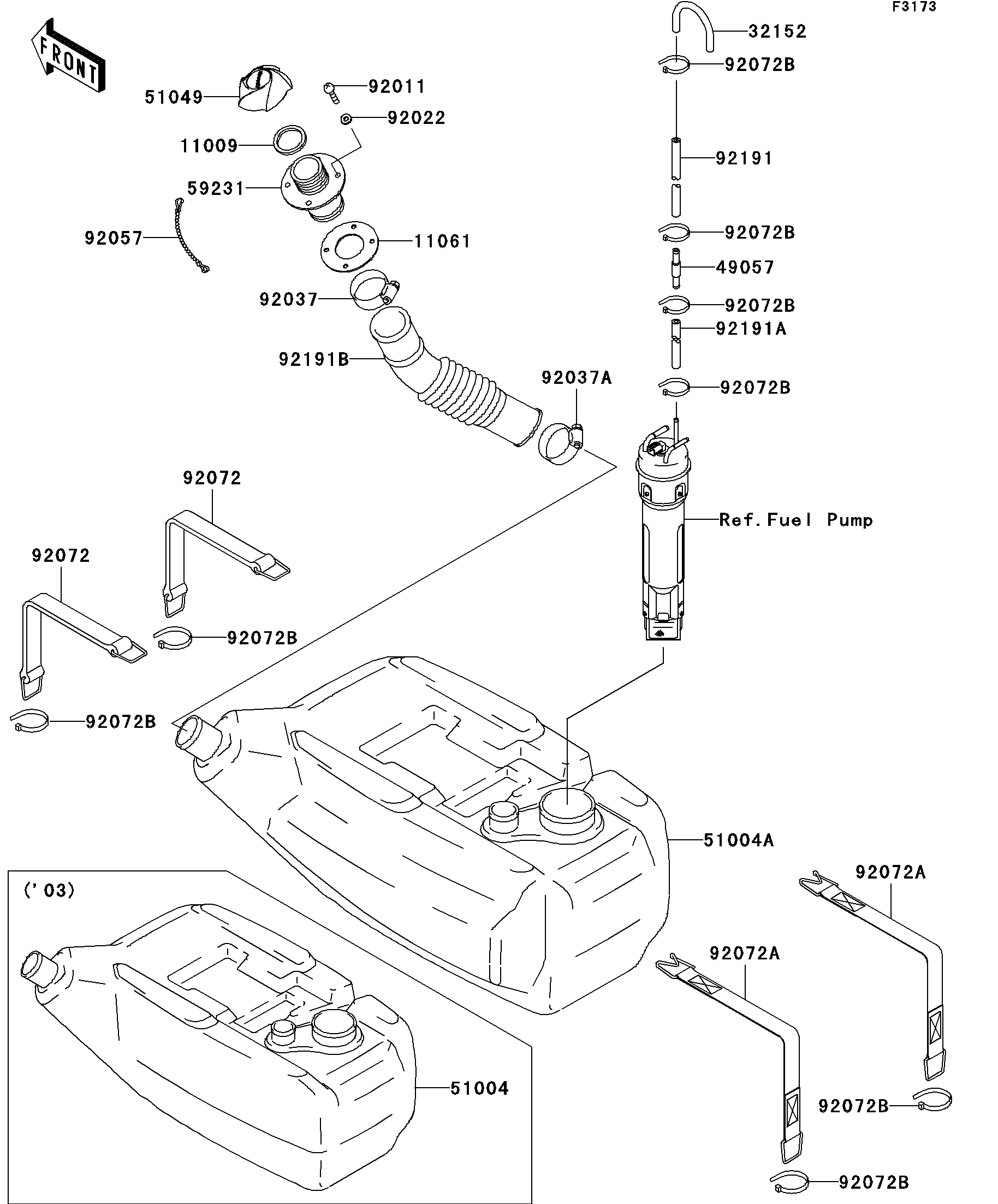

Parts Diagrams |
11009
11061
32152
49057
51004
51004A
51049
59231
92011
92022
92037
92037A
92057
92072
92072
92072A
92072A
92072B
92072B
92072B
92072B
92072B
92072B
92072B
92072B
92191
92191A
92191B
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,TANK CAP | 11009 | 11009-3020 | 1 | ||
| GASKET | 11061 | 11061-3701 | 1 | ||
| PIPE | 32152 | 32152-3705 | 1 | ||
| VALVE-RELIEF | 49057 | 49057-3707 | 1 | ||
| TANK-FUEL | 51004 | 51004-3731 | 1 | ||
| TANK-FUEL | 51004A | 51004-3739 | 1 | ||
| CAP-TANK,FUEL | 51049 | 51049-3725 | 1 | ||
| FILLER,FUEL TANK | 59231 | 59231-3716 | 1 | ||
| SCREW | 92011 | 92011-562 | 4 | ||
| WASHER | 92022 | 92022-563 | 4 | ||
| CLAMP | 92037 | 92037-3009 | 1 | ||
| CLAMP | 92037A | 92037-3738 | 1 | ||
| CHAIN,COVER,L=100 | 92057 | 92057-3704 | 1 | ||
| BAND | 92072 | 92072-3845 | 2 | ||
| BAND | 92072A | 92072-3850 | 2 | ||
| BAND,L=99 | 92072B | 92072-3871 | 8 | ||
| TUBE,5.8X10.8X1000 | 92191 | 92191-3736 | 1 | ||
| TUBE,5.8X10.8X100 | 92191A | 92191-3828 | 1 | ||
| TUBE,FUEL TANK - FILLER | 92191B | 92191-3903 | 1 |
| GASKET,TANK CAP | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET | |
| REF # | 11061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE | |
| REF # | 32152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| VALVE-RELIEF | |
| REF # | 49057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TANK-FUEL | |
| REF # | 51004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TANK-FUEL | |
| REF # | 51004A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-TANK,FUEL | |
| REF # | 51049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FILLER,FUEL TANK | |
| REF # | 59231 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW | |
| REF # | 92011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CHAIN,COVER,L=100 | |
| REF # | 92057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BAND | |
| REF # | 92072A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BAND,L=99 | |
| REF # | 92072B |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| TUBE,5.8X10.8X1000 | |
| REF # | 92191 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,5.8X10.8X100 | |
| REF # | 92191A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,FUEL TANK - FILLER | |
| REF # | 92191B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
