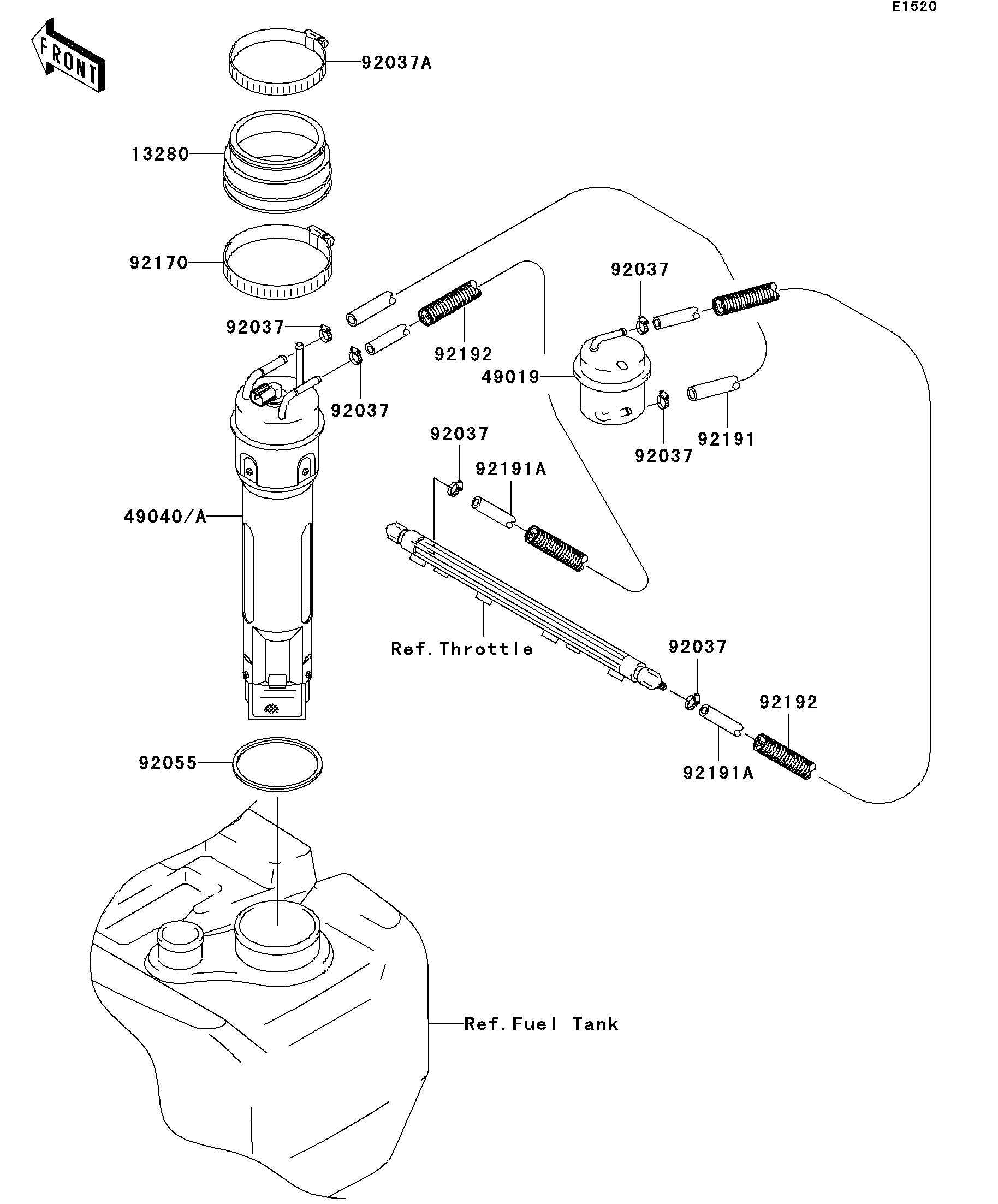

2004 STX-12F - Fuel Pump

DOWNLOAD PDF
SELECT A NEW PART
13280
49019
49040
49040A
92037
92037
92037
92037
92037
92037
92037A
92055
92170
92191
92191A
92191A
92192
92192
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER 13280 13280-3735 1
FILTER-FUEL 49019 49019-3720 1
PUMP-FUEL 49040 49040-3714 1
PUMP-FUEL 49040A 49040-3715 1
CLAMP 92037 92037-3726 6
CLAMP 92037A 92037-541 1
RING-O,FUEL PUMP 92055 92055-3756 1
CLAMP 92170 92170-3760 1
TUBE,7.5X13.5X460 92191 92191-3869 1
TUBE,6X12X700 92191A 92191-3962 2
TUBE,13.2X17.5X650 92192 92192-3705 2
