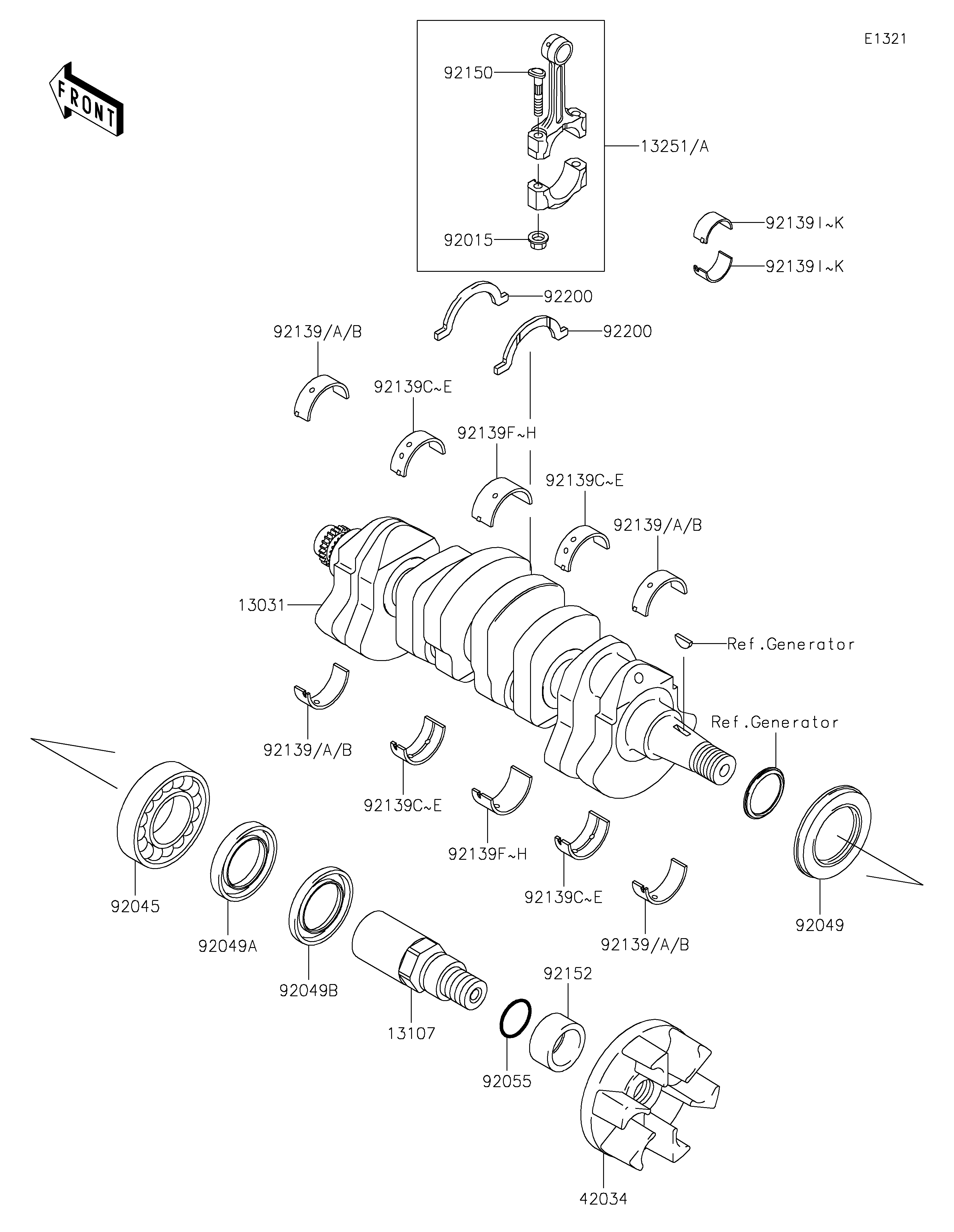

2004 STX-12F - Crankshaft

DOWNLOAD PDF
SELECT A NEW PART
13031
13107
13251
13251A
42034
92015
92045
92049
92049A
92049B
92055
92139
92139
92139
92139
92139A
92139A
92139A
92139A
92139B
92139B
92139B
92139B
92139C
92139C
92139C
92139C
92139D
92139D
92139D
92139D
92139E
92139E
92139E
92139E
92139F
92139F
92139G
92139G
92139H
92139H
92139I
92139I
92139J
92139J
92139K
92139K
92150
92152
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CRANKSHAFT-COMP 13031 13031-3740 1
SHAFT 13107 13107-3785 1
ROD-ASSY-CONNECTING,K 13251 13251-3701-KK 4
ROD-ASSY-CONNECTING,L 13251A 13251-3701-LL 4
COUPLING 42034 42034-3711 1
NUT,CONNECTING ROD 92015 92015-1559 8
BEARING-BALL,6208 92045 92045-3739 1
SEAL-OIL,SD347626LHS 92049 92049-3736 1
SEAL-OIL,FPJ740628.5ZS 92049A 92049-3737 1
SEAL-OIL,S40626NS 92049B 92049-3738 1
RING-O 92055 92055-091 1
BUSHING,CONNECTING ROD,BLUE 92139 92139-1091 8
BUSHING,CONNECTING ROD,BLACK 92139A 92139-1092 AR
BUSHING,CONNECTING ROD,BROWN 92139B 92139-1093 AR
BUSHING,CRANKSHAFT,#1&#5,BLUE 92139C 92139-3702 4
BUSHING,CRANKSHAFT,#1&#5,BLACK 92139D 92139-3703 AR
BUSHING,CRANKSHAFT,#1&#5,BROWN 92139E 92139-3704 AR
BUSHING,CRANKSHAFT,#2&#4,BLUE 92139F 92139-3705 4
BUSHING,CRANKSHAFT,#2&#4,BLACK 92139G 92139-3706 AR
BUSHING,CRANKSHAFT,#2&#4,BROWN 92139H 92139-3707 AR
BUSHING,CRANKSHAFT,#3,BLUE 92139I 92139-3711 2
BUSHING,CRANKSHAFT,#3,BLACK 92139J 92139-3712 AR
BUSHING,CRANKSHAFT,#3,BROWN 92139K 92139-3713 AR
BOLT,CONNECTING ROD,9MM 92150 92150-1362 8
COLLAR,OUTPUT RR,L=19.5 92152 92152-3733 1
WASHER 92200 92200-3789 2
