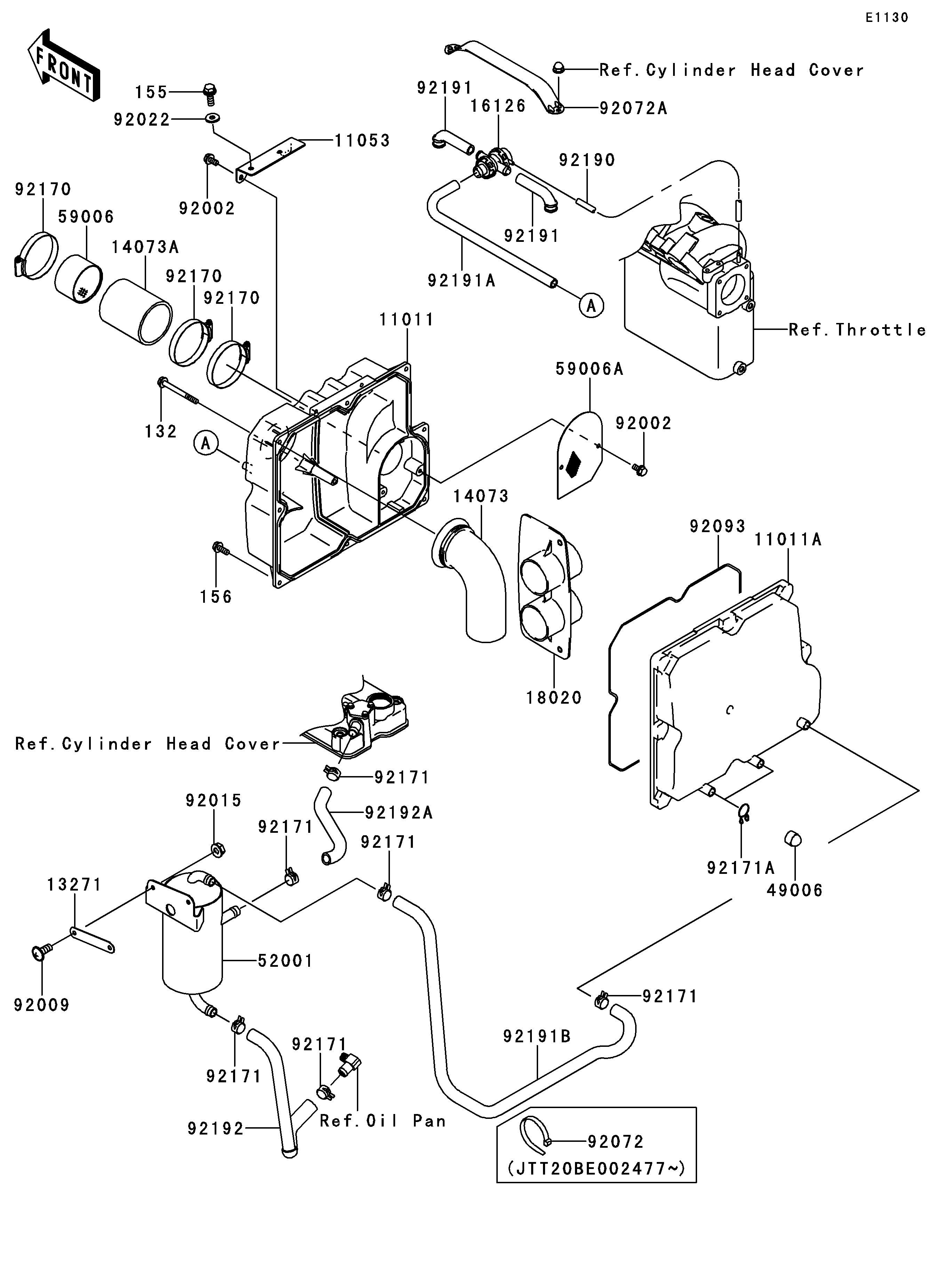

2004 STX-12F - Intake Silencer(JT1200-B1)

DOWNLOAD PDF
SELECT A NEW PART
11011
11011A
11053
13271
14073
14073A
16126
18020
49006
52001
59006
59006A
92002
92002
92009
92015
92022
92072
92072A
92093
92170
92170
92170
92171
92171
92171
92171
92171
92171
92171A
92190
92191
92191
92191A
92191B
92192
92192A
132
155
156
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-AIR FILTER,FR 11011 11011-3703 1
CASE-AIR FILTER,RR 11011A 11011-3704 1
BRACKET 11053 11053-3725 1
PLATE 13271 13271-3880 1
DUCT,AIR FILTER-ASV 14073 14073-3794 1
DUCT,AIR FILTER-THOROTTLE 14073A 14073-3795 1
VALVE,AIR SWITCH 16126 16126-1433 1
BAFFLE 18020 18020-3703 1
BOOT,DRAIN 49006 49006-3718 2
TANK-OIL, SEPARETOR 52001 52001-3736 1
ARRESTER-FLAME 59006 59006-0019 1
ARRESTER-FLAME 59006A 59006-3719 1
BOLT,6X12 92002 92002-3763 4
SCREW,M6X20 92009 92009-3870 2
NUT,6MM 92015 92015-3767 2
WASHER,8.2X18X1.5 92022 92022-3743 2
BAND,L=203.2 92072 92072-3867 1 ( JTT20BE002477 - )
BAND 92072A 92072-3869 1
SEAL 92093 92093-3766 1
CLAMP 92170 92170-3764 3
CLAMP,TUBE 92171 92171-3710 6
CLAMP,BOOT 92171A 92171-3711 2
TUBE,4X9X450 92190 92190-1062 1
TUBE 92191 92191-3959 2
TUBE,ASV-AIR CASE 92191A 92191-3960 1
TUBE,SEPARATOR-AIR CLEANER 92191B 92191-3998 1
TUBE,SEPARTOR-OILPLAN 92192 92192-3701 1
TUBE,HEAD-SEPARATOR 92192A 92192-3719 1
BOLT-FLANGED-SMALL 132 132Y0660 1
BOLT-WSP-SMALL,8X20 155 155R0820 2
BOLT-WP,6X16 156 156R0616 8
