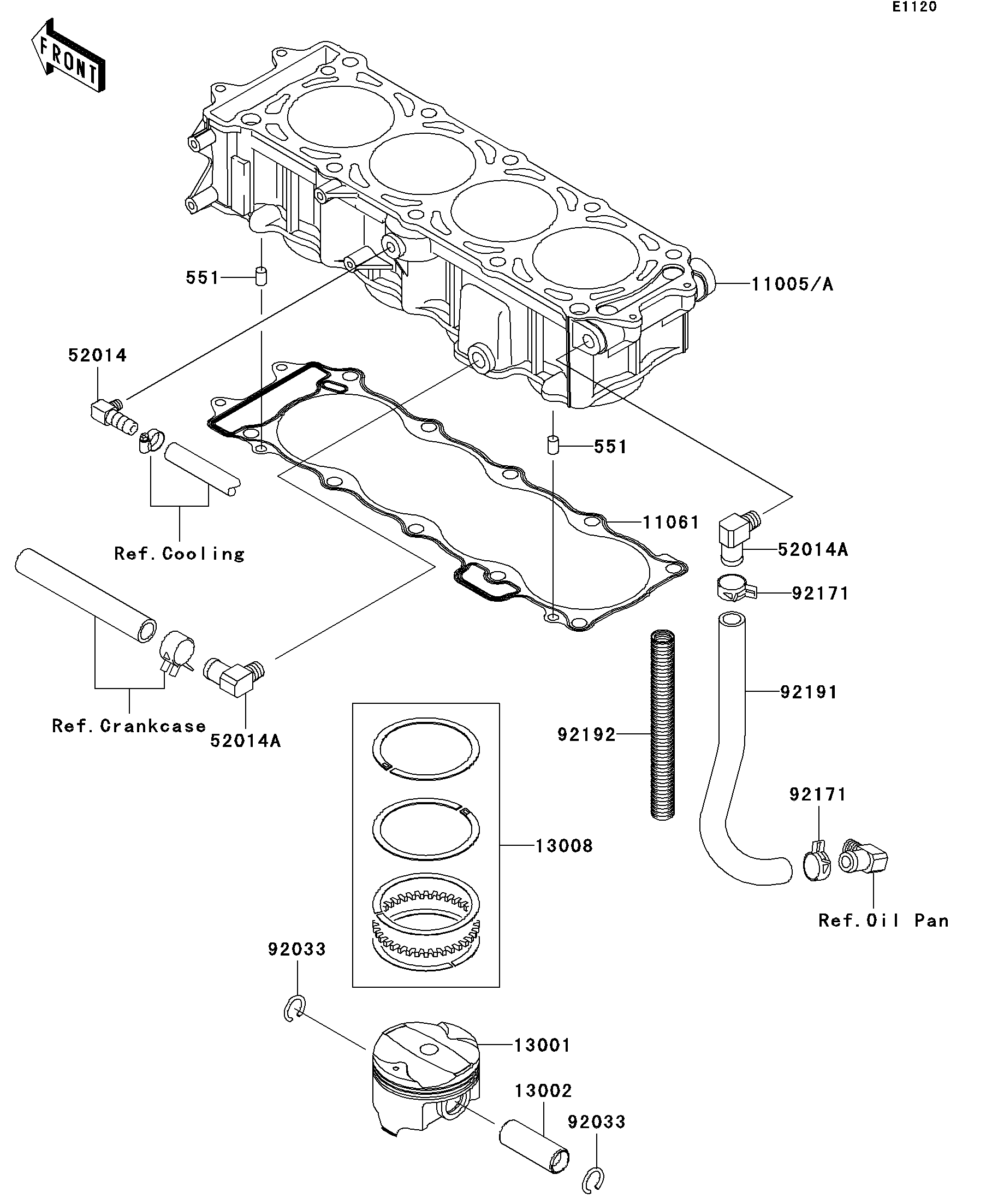

Parts Diagrams |
11005
11005A
11061
13001
13002
13008
52014
52014A
52014A
92033
92033
92171
92171
92191
92192
551
551
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CYLINDER-ENGINE | 11005 | 11005-3756 | 1 | ||
| CYLINDER-ENGINE | 11005A | 11005-3758 | 1 | ||
| GASKET,CYLINDER BASE | 11061 | 11061-3708 | 1 | ||
| PISTON-ENGINE | 13001 | 13001-3736 | 4 | ||
| PIN-PISTON | 13002 | 13002-3709 | 4 | ||
| RING-SET-PISTON | 13008 | 13008-1196 | 4 | ||
| ELBOW | 52014 | 52014-3708 | 1 | ||
| ELBOW | 52014A | 52014-3717 | 2 | ||
| RING-SNAP | 92033 | 92033-1188 | 8 | ||
| CLAMP,TUBE | 92171 | 92171-3710 | 2 | ||
| TUBE,BREATHER | 92191 | 92191-3983 | 1 | ||
| TUBE,19.5X23.8X170 | 92192 | 92192-3702 | 1 | ||
| PIN-DOWEL | 551 | 551R0812 | 2 |
| CYLINDER-ENGINE | |
| REF # | 11005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CYLINDER-ENGINE | |
| REF # | 11005A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,CYLINDER BASE | |
| REF # | 11061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PISTON-ENGINE | |
| REF # | 13001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PIN-PISTON | |
| REF # | 13002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RING-SET-PISTON | |
| REF # | 13008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| ELBOW | |
| REF # | 52014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ELBOW | |
| REF # | 52014A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| CLAMP,TUBE | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| TUBE,BREATHER | |
| REF # | 92191 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,19.5X23.8X170 | |
| REF # | 92192 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN-DOWEL | |
| REF # | 551 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
