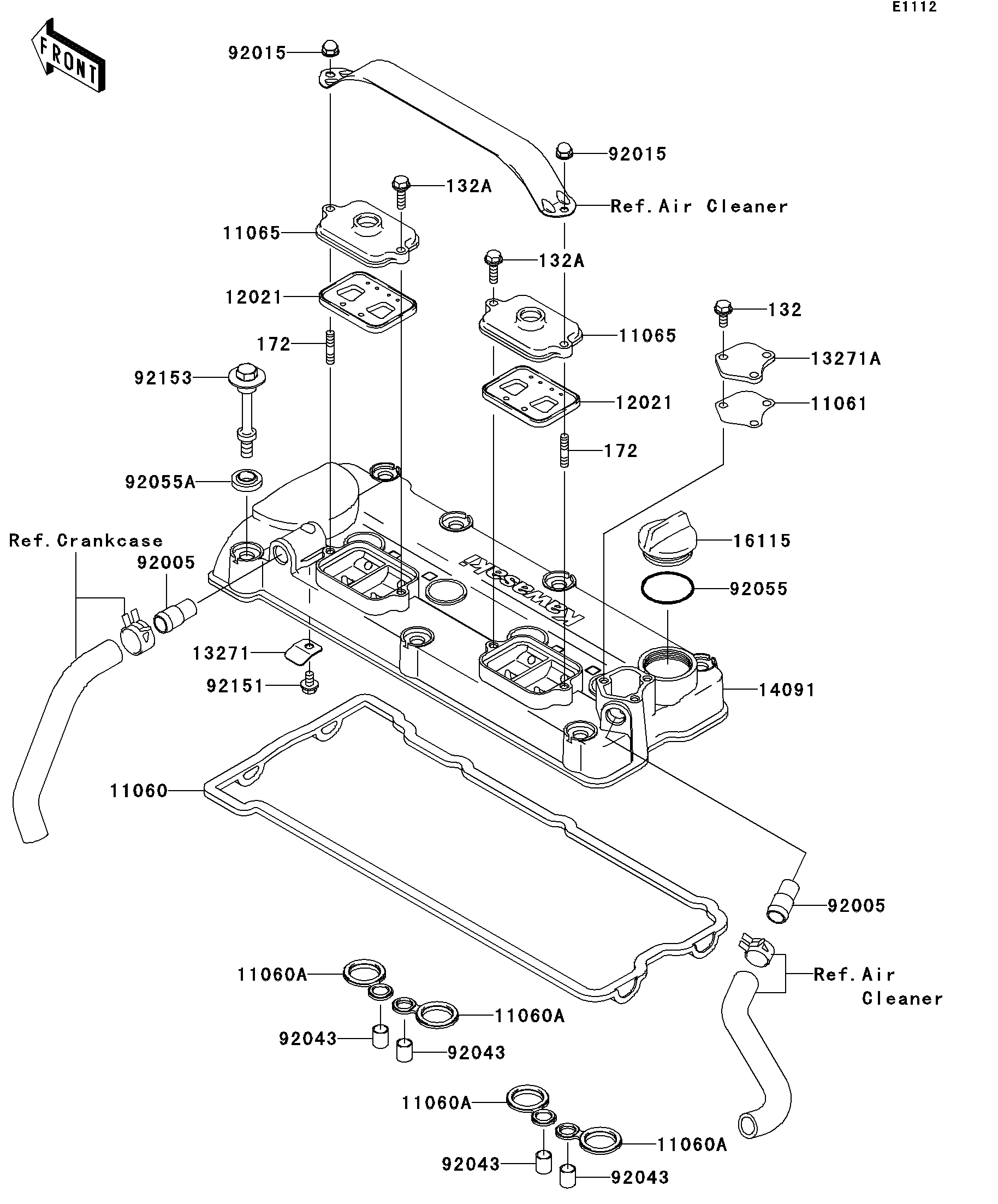

2004 STX-12F - Cylinder Head Cover(JT1200-B1)

DOWNLOAD PDF
SELECT A NEW PART
11060
11060A
11060A
11060A
11060A
11061
11065
11065
12021
12021
13271
13271A
14091
16115
92005
92005
92015
92015
92043
92043
92043
92043
92055
92055A
92151
92153
132
132A
132A
172
172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,HEAD COVER 11060 11060-1905 1
GASKET,SPARKPLUG HOLE 11060A 11060-1906 4
GASKET,PLATE 11061 11061-3728 1
CAP,ASV 11065 11065-3721 2
VALVE-ASSY-REED 12021 12021-1119 2
PLATE 13271 13271-3851 1
PLATE 13271A 13271-3878 1
COVER,HEAD 14091 14091-3743 1
CAP-OIL FILLER 16115 16115-1064 1
FITTING 92005 92005-3741 2
NUT,CAP,6MM 92015 92015-1385 2
PIN,10.1X12X14 92043 92043-4009 4
RING-O,38MM 92055 92055-1295 1
RING-O,HEAD COVER BOLT 92055A 92055-1352 7
BOLT,6X10 92151 92151-1822 1
BOLT,HEAD COVER 92153 92153-3706 7
BOLT-FLANGED-SMALL 132 132Y0614 3
BOLT-FLANGED-SMALL 132A 132Y0620 2
BOLT-STUD 172 172R0618 2
