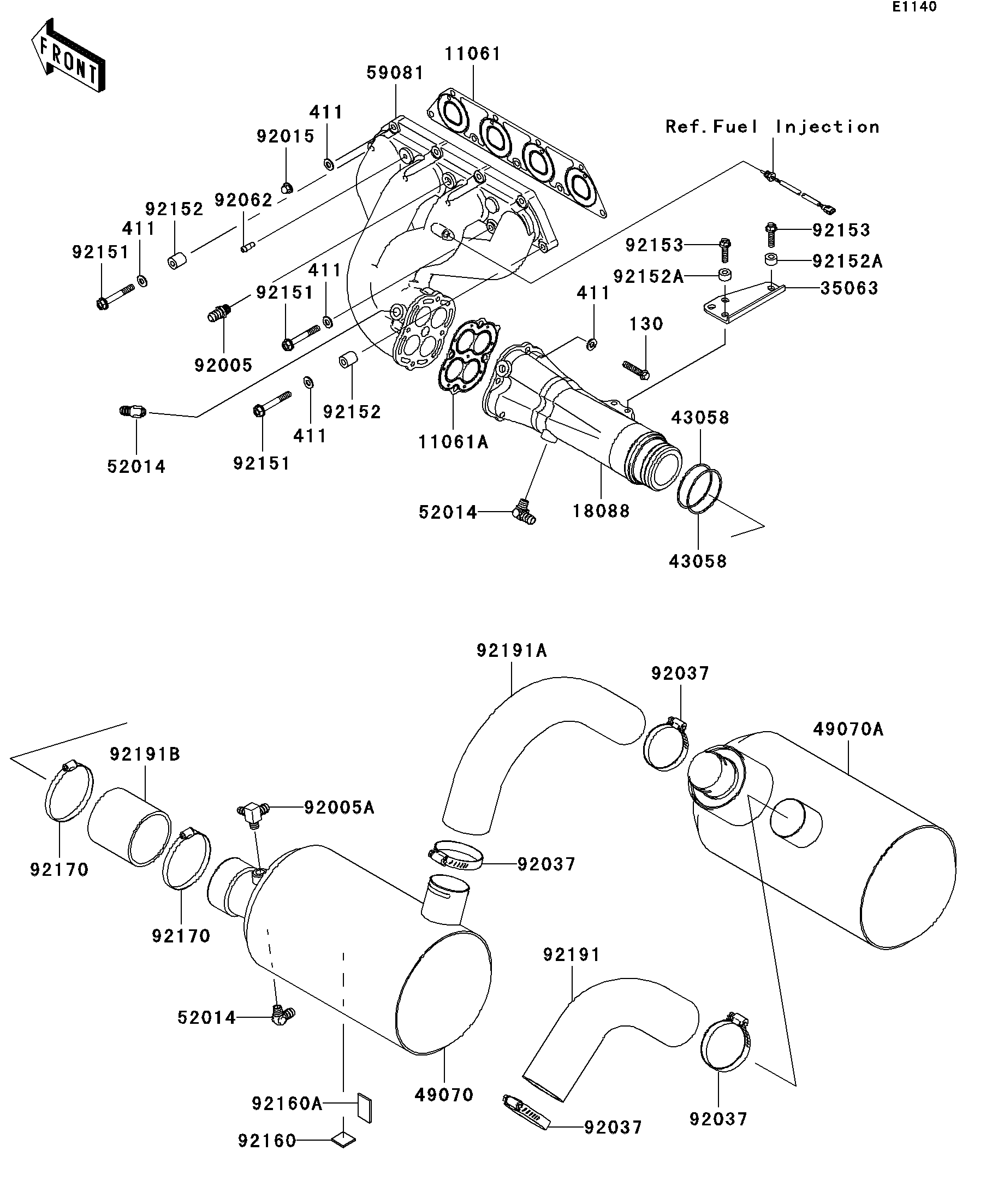

2007 STX-12F - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
11061
11061A
18088
35063
43058
43058
49070
49070A
52014
52014
52014
59081
92005
92005A
92015
92037
92037
92037
92037
92062
92151
92151
92151
92152
92152
92152A
92152A
92153
92153
92160
92160A
92170
92170
92191
92191A
92191B
130
411
411
411
411
411
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,MANIFOLD EXHAUST 11061 11061-3713 1
GASKET,PIPE EXHAUST 11061A 11061-3714 1
PIPE-EXHAUST 18088 18088-3723 1
STAY 35063 35063-3704 1
RING,GASKET 43058 43058-3733 2
MUFFLER-COMP 49070 49070-3744 1
MUFFLER-COMP,2ND 49070A 49070-3745 1
ELBOW 52014 52014-3711 3
MANIFOLD-EXHAUST 59081 59081-3741 1
FITTING 92005 92005-3714 1
FITTING 92005A 92005-3743 1
NUT,CAP,8MM 92015 92015-1371 4
CLAMP 92037 92037-3738 4
NOZZLE 92062 92062-3705 1
BOLT,8X60 92151 92151-3730 5
COLLAR 92152 92152-3736 2
COLLAR,8.2X17X10 92152A 92152-3740 4
BOLT,FLANGED,8X30 92153 92153-3722 4
DAMPER,25X25 92160 92160-3864 1
DAMPER,40X25 92160A 92160-3865 1
CLAMP 92170 92170-3760 2
TUBE,RR 92191 92191-3984 1
TUBE,FR 92191A 92191-3985 1
TUBE,PIPE EX-MUFFLER 92191B 92191-3986 1
BOLT-FLANGED,8X40 130 130Z0840 4
WASHER-PLAIN,8MM 411 411S0800 13
