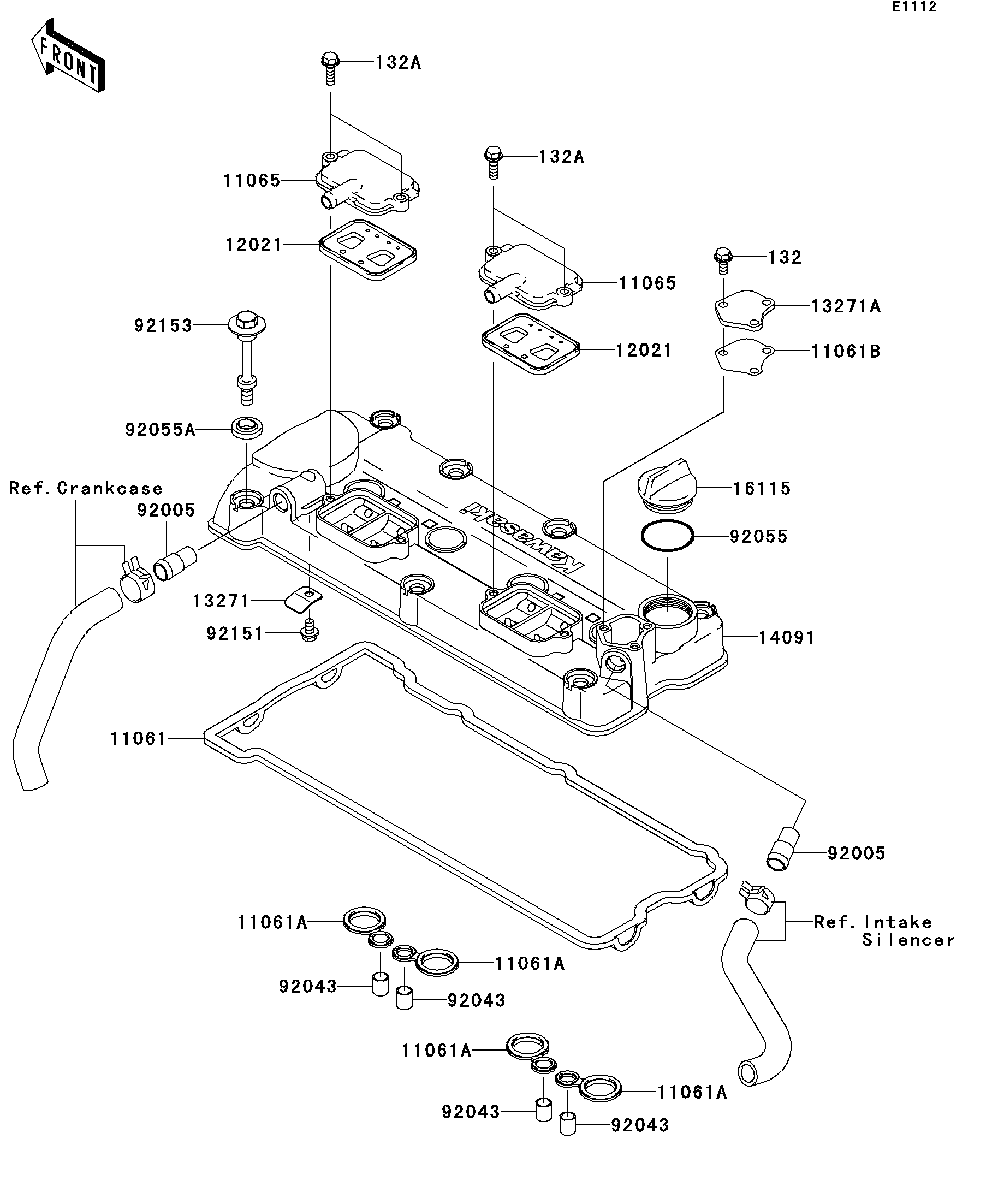

2007 STX-12F - Cylinder Head Cover

DOWNLOAD PDF
SELECT A NEW PART
11061
11061A
11061A
11061A
11061A
11061B
11065
11065
12021
12021
13271
13271A
14091
16115
92005
92005
92043
92043
92043
92043
92055
92055A
92151
92153
132
132A
132A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,HEAD COVER 11061 11061-0090 1
GASKET,SPARK PLUG HOLE 11061A 11061-0105 4
GASKET,PLATE 11061B 11061-3728 1
CAP,ASV 11065 11065-3723 2
VALVE-ASSY-REED 12021 12021-1119 2
PLATE 13271 13271-3851 1
PLATE 13271A 13271-3898 1
COVER,HEAD 14091 14091-3760 1
CAP-OIL FILLER 16115 16115-1064 1
FITTING 92005 92005-3741 2
PIN,10.1X12X14 92043 92043-4009 4
RING-O,38X1.9 92055 92055-1295 1
RING-O,HEAD COVER BOLT 92055A 92055-1352 7
BOLT,FLANGED,6X10 92151 92151-1822 1
BOLT,HEAD COVER 92153 92153-3706 7
BOLT-FLANGED-SMALL,6X14 132 132Y0614 3
BOLT-FLANGED-SMALL,6X20 132A 132Y0620 4
