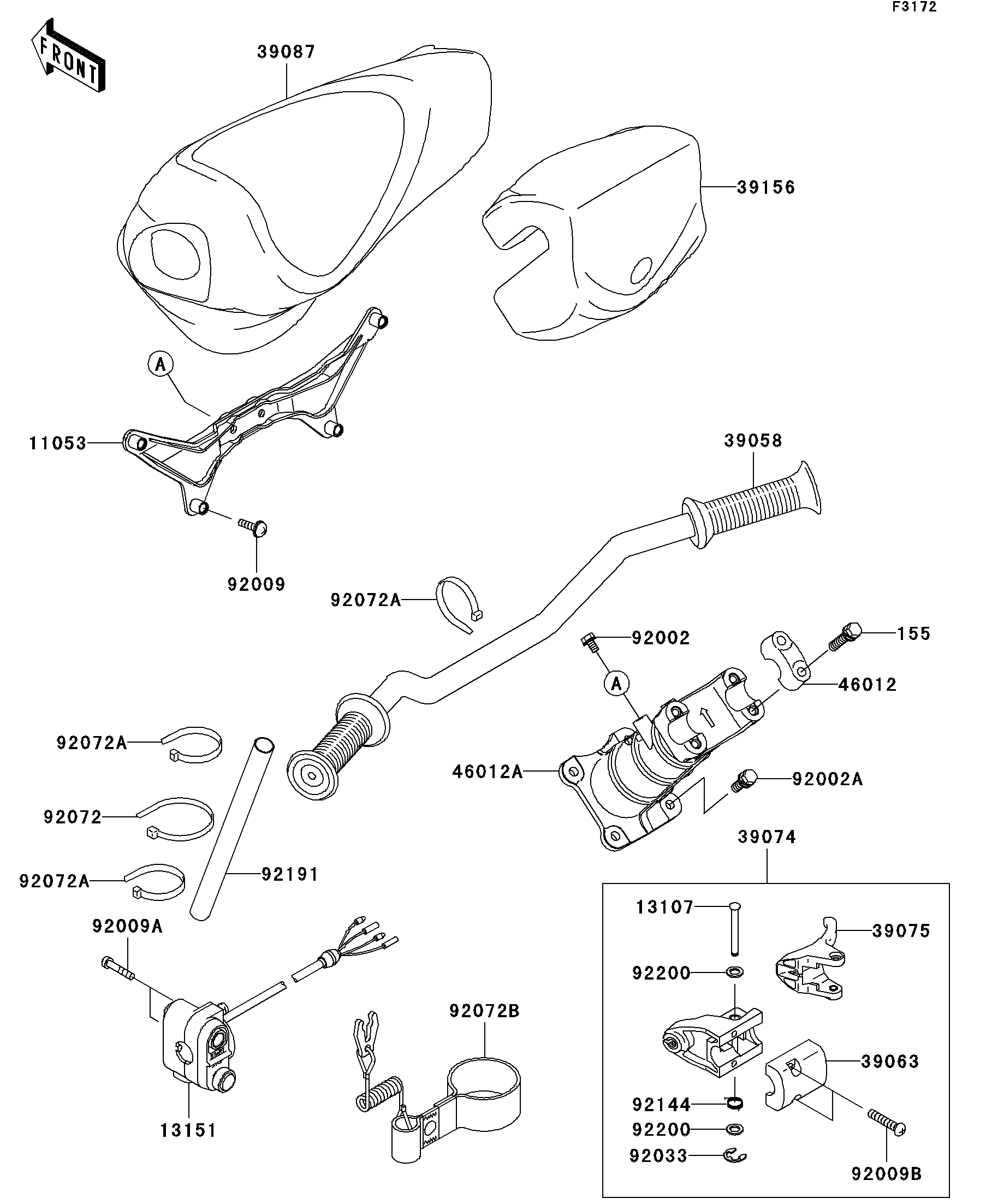

2007 STX-15F - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
11053
13107
13151
39058
39063
39074
39075
39087
39156
46012
46012A
92002
92002A
92009
92009A
92009B
92033
92072
92072A
92072A
92072A
92072B
92144
92191
92200
92200
155
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,HANDLE PAD 11053 11053-3762 1
SHAFT 13107 13107-3740 1
SWITCH-COMP,STOP&START 13151 13151-3722 1
HANDLE-COMP,F.BLACK 39058 39058-3735-6Z 1
HOUSING-CONTROL 39063 39063-3727 1
LEVER-ASSY-THROTTLE 39074 39074-3726 1
LEVER-THROTTLE 39075 39075-3714 1
PAD-HANDLE,F.BLACK 39087 39087-3730-6Z 1
PAD,HANDLE 39156 39156-3839 1
HOLDER-HANDLE,UPP 46012 46012-3720 2
HOLDER-HANDLE 46012A 46012-3728 1
BOLT,6X12 92002 92002-3763 2
BOLT,8X25 92002A 92002-3774 4
SCREW,6X20 92009 92009-3781 4
SCREW,5X30 92009A 92009-3836 2
SCREW,6X30 92009B 92009-3837 2
RING-SNAP 92033 92033-3723 1
BAND,L=286.69 92072 92072-0104 1
BAND,L=188.85 92072A 92072-0105 3
BAND,TETHER SWITCH 92072B 92072-3816 1
SPRING 92144 92144-3749 1
TUBE,22X24X200 92191 92191-3792 1
WASHER 92200 92200-3738 2
BOLT-WSP-SMALL,8X40 155 155R0840 4
