11065
11065
11065
11065
11065
39027
39028
39028
53004
53004A
53004B
53004C
53004D
53004E
53004F
53004G
59201
59201A
59201A
59504
59504
59504A
92039
92039
92039A
92039A
92039A
92039A
92153
92153
92200
92200
92200
92200
92200
92200
311
311

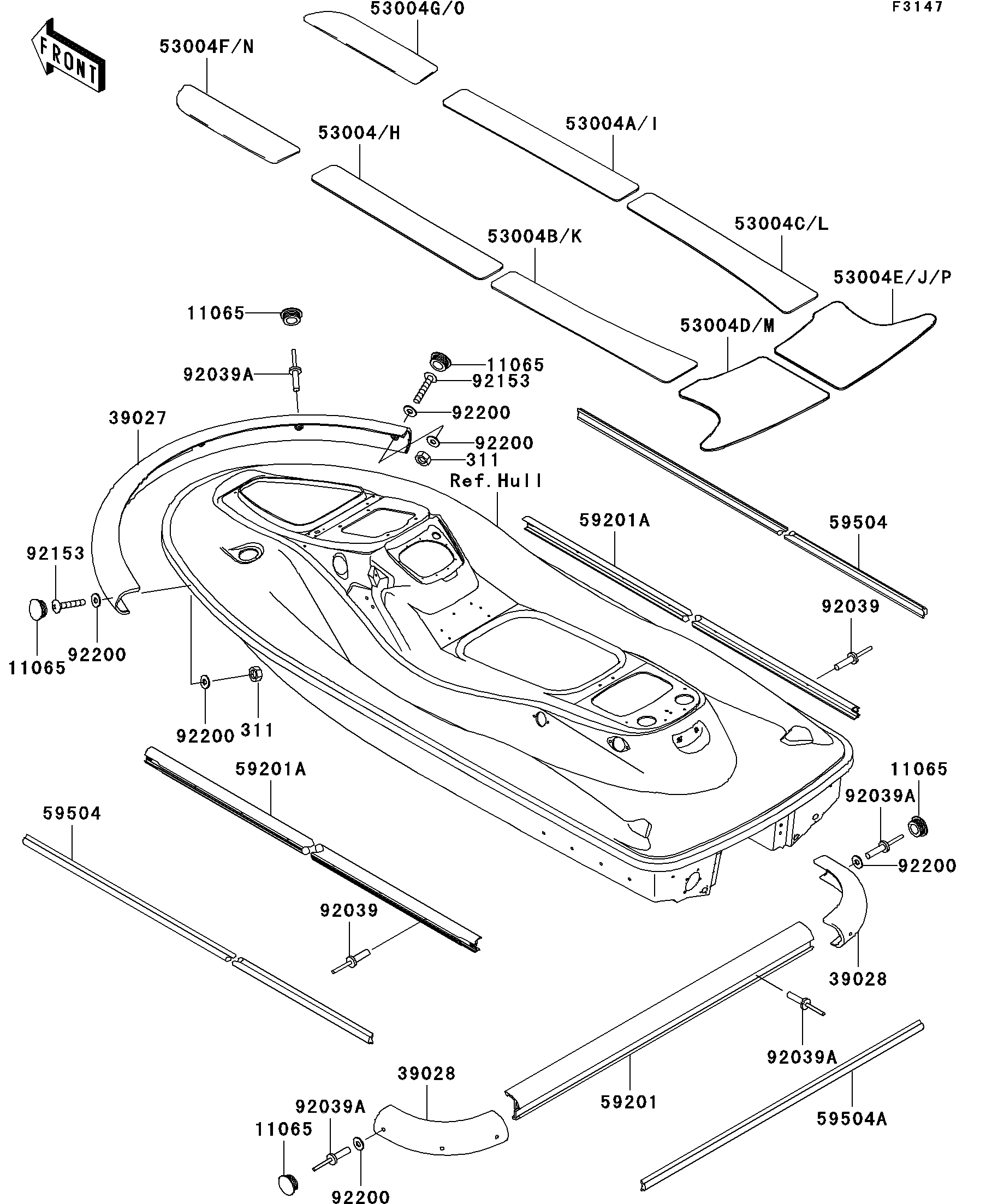

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,F.BLACK 11065 11065-3707-6Z 12
BUMPER-FRONT,F.BLACK 39027 39027-3741-6Z 1
BUMPER-REAR,CORNER,F.BLACK 39028 39028-3752-6Z 2
MAT,DECK,FR,LH 53004 53004-3852 1
MAT,DECK,FR,RH 53004A 53004-3853 1
MAT,DECK,MIDDLE,LH 53004B 53004-3854 1
MAT,DECK,MIDDLE,RH 53004C 53004-3855 1
MAT,DECK,RR,LH 53004D 53004-3856 1
MAT,DECK,RR,RH 53004E 53004-3857 1
MAT,DECK,FR,LH 53004F 53004-3882 1
MAT,DECK,FR,RH 53004G 53004-3883 1
BUMPER,RR,F.BLACK 59201 59201-3788-6Z 1
BUMPER,SIDE,F.BLACK 59201A 59201-3789-6Z 2
INSERT-BOAT FENDER,SIDE,BLACK 59504 59504-3731-6Z 2
INSERT-BOAT FENDER,RR,F.BLACK 59504A 59504-3732-6Z 1
RIVET 92039 92039-3771 24
RIVET 92039A 92039-3773 14
BOLT,SOCKET,5X30 92153 92153-3742 2
WASHER,5X12X1 92200 92200-3796 10
NUT-HEX,5MM 311 311R0500 2
