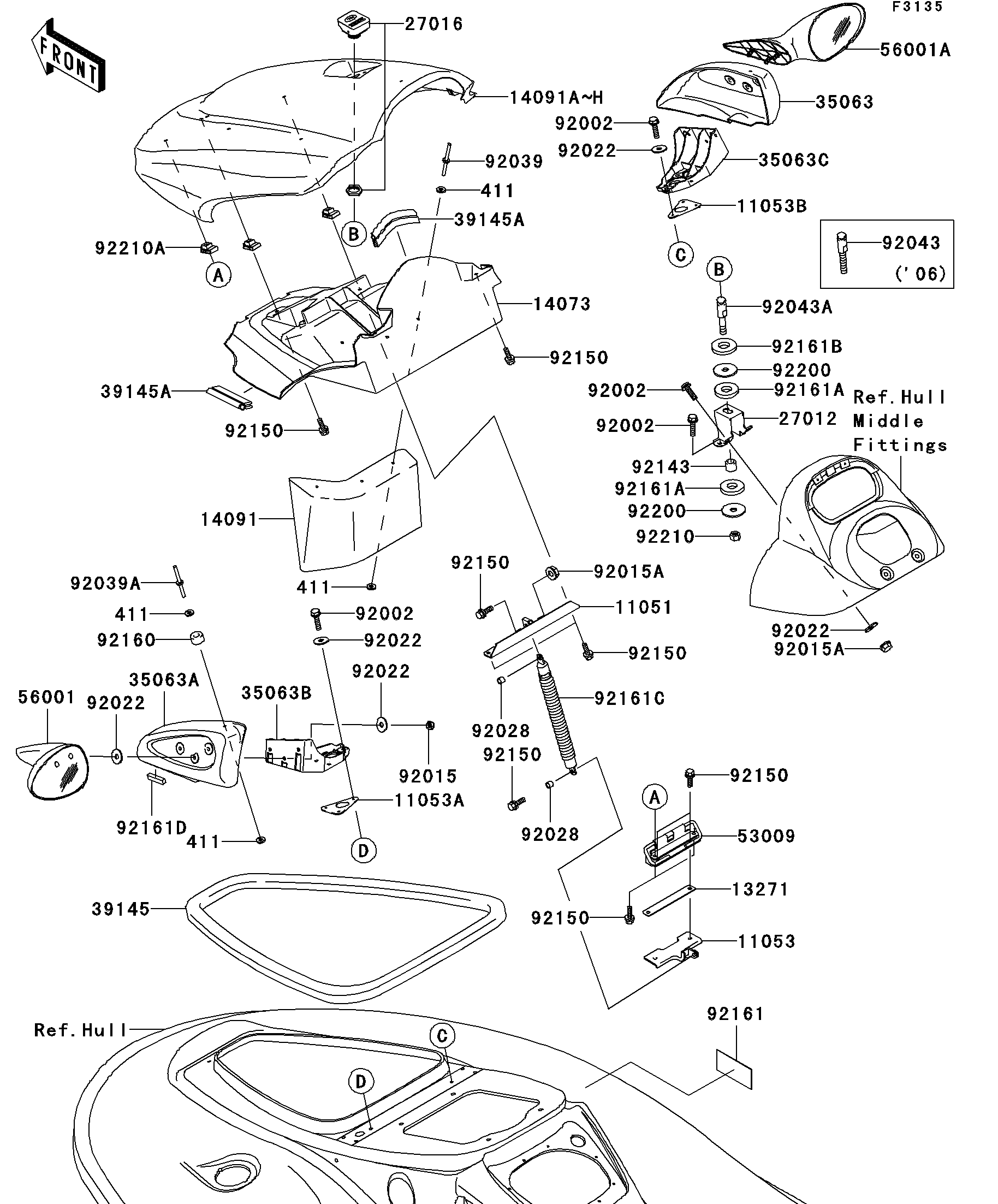

2007 STX-15F - Hull Front Fittings

DOWNLOAD PDF
SELECT A NEW PART
11051
11051
11053
11053
11053A
11053A
11053B
11053B
13271
13271
14073
14073
14091
14091
14091D
14091D
27012
27012
27016
27016
35063
35063
35063A
35063A
35063B
35063B
35063C
35063C
39145
39145
39145A
39145A
39145A
39145A
53009
53009
56001
56001
56001A
56001A
92002
92002
92002
92002
92002
92002
92002
92002
92015
92015
92015A
92015A
92015A
92015A
92022
92022
92022
92022
92022
92022
92022
92022
92022
92022
92028
92028
92028
92028
92039
92039
92039A
92039A
92043A
92043A
92143
92143
92150
92150
92150
92150
92150
92150
92150
92150
92150
92150
92150
92150
92150
92150
92160
92160
92161
92161
92161A
92161A
92161A
92161A
92161B
92161B
92161C
92161C
92161D
92161D
92200
92200
92200
92200
92210
92210
92210A
92210A
411
411
411
411
411
411
411
411
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11051 11051-3766 1
BRACKET 11053 11053-3752 1
BRACKET,LH 11053A 11053-3777 1
BRACKET,RH 11053B 11053-3778 1
PLATE 13271 13271-3897 1
DUCT,HATCH,INNER 14073 14073-3800 1
COVER,FRONT DUCT 14091 14091-3722 1
COVER,HATCH,M.N.BLUE 14091D 14091-3778-TK 1
HOOK 27012 27012-3855 1
LOCK-ASSY 27016 27016-3757 1
STAY,MIRROR,RH,F.BLACK 35063 35063-3709-6Z 1
STAY,MIRROR,LH,F.BLACK 35063A 35063-3710-6Z 1
STAY,MIRROR,LH 35063B 35063-3713 1
STAY,MIRROR,RH 35063C 35063-3714 1
TRIM-SEAL,L=1380 39145 39145-3773 1
TRIM-SEAL,L=260 39145A 39145-3789 3
HINGE,HATCH COVER 53009 53009-3725 1
MIRROR-ASSY,LH,F.S.BLACK 56001 56001-3721-8J 1
MIRROR-ASSY,RH,F.S.BLACK 56001A 56001-3722-8J 1
BOLT,6X25 92002 92002-3714 10
NUT,LOCK,6MM 92015 92015-3766 6
NUT,6MM 92015A 92015-3767 5
WASHER,6.5X20X1.5 92022 92022-3710 22
BUSHING 92028 92028-3765 2
RIVET 92039 92039-3714 3
RIVET 92039A 92039-3747 2
PIN 92043A 92043-3760 1
COLLAR,8.2X14X11.2 92143 92143-3724 1
BOLT,6X18 92150 92150-3729 11
DAMPER 92160 92160-3738 2
DAMPER 92161 92161-3728 1
DAMPER 92161A 92161-3739 2
DAMPER 92161B 92161-3747 1
DAMPER,HATCH 92161C 92161-3753 1
DAMPER 92161D 92161-3754 2
WASHER,8.5X32X2 92200 92200-3786 2
NUT,LOCK,8MM 92210 92210-3742 1
NUT,6MM 92210A 92210-3768 7
WASHER-PLAIN,5MM 411 411S0500 10
