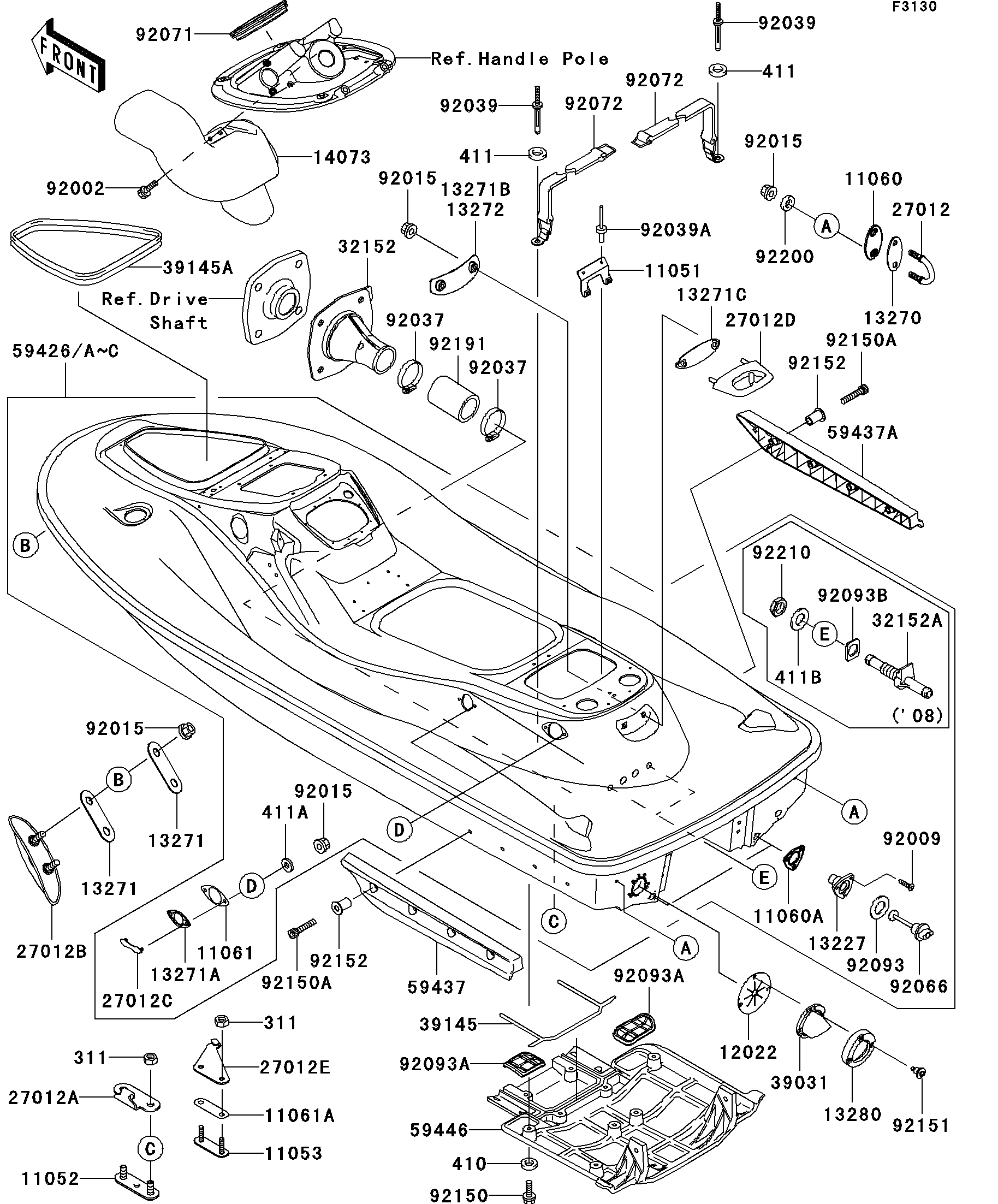

2008 Jet Ski® STX®-15F - Hull(A6F-A8F)

DOWNLOAD PDF
SELECT A NEW PART
11051
11051
11052
11052
11053
11053
11060
11060
11060A
11060A
11061
11061
11061A
11061A
12022
12022
13227
13227
13270
13270
13271
13271
13271
13271
13271A
13271A
13271C
13271C
13272
13272
13280
13280
14073
14073
27012
27012
27012A
27012A
27012B
27012B
27012C
27012C
27012D
27012D
27012E
27012E
32152
32152
32152A
32152A
39031
39031
39145
39145
39145A
39145A
59426C
59426C
59437
59437
59437A
59437A
59446
59446
92002
92002
92009
92009
92015
92015
92015
92015
92015
92015
92015
92015
92037
92037
92037
92037
92039
92039
92039
92039
92039A
92039A
92066
92066
92071
92071
92072
92072
92072
92072
92093
92093
92093A
92093A
92093A
92093A
92093B
92093B
92150
92150
92150A
92150A
92150A
92150A
92151
92151
92152
92152
92152
92152
92191
92191
92200
92200
92210
92210
311
311
311
311
410
410
411
411
411
411
411A
411A
411B
411B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,BREATHER-BILGE 11051 11051-3802 1
BRACKET,RR DUCT 11052 11052-3712 1
BRACKET 11053 11053-3746 1
GASKET,U HOOK,RR 11060 11060-3800 2
GASKET,DRAIN PLUG 11060A 11060-3801 2
GASKET,CARGO HOOK 11061 11061-3730 4
GASKET 11061A 11061-3731 1
VALVE-REED 12022 12022-3714 1
HOUSING,DRAIN PLUG,F.BLACK 13227 13227-3721-6Z 2
PLATE 13270 13270-3860 2
PLATE 13271 13271-3724 2
PLATE,CARGO NET HOOK 13271A 13271-3755 4
PLATE 13271C 13271-3889 1
PLATE,REAR TOWING HOOK 13272 13272-3702 1
HOLDER,EXHAUST VALVE 13280 13280-3718 1
DUCT 14073 14073-3801 1
HOOK 27012 27012-3797 2
HOOK 27012A 27012-3816 1
HOOK,BOW,F.BLACK 27012B 27012-3822-6Z 1
HOOK,CARGO NET,G.SILVER 27012C 27012-3828-F2 4
HOOK,REAR TOWING,F.BLACK 27012D 27012-3836-6Z 1
HOOK,WATER MUFFLER,RH 27012E 27012-3849 1
PIPE,DRIVE SHAFT 32152 32152-3703 1
PIPE 32152A 32152-3748 2
CAP-END 39031 39031-3708 1
TRIM-SEAL,JET PUMP COVER 39145 39145-3768 1
TRIM-SEAL,L=1412 39145A 39145-3787 1
HULL-COMP,J.WHITE 59426C 59426-3968-8C 1 US
STABILIZER,LH,F.BLACK 59437 59437-3743-6Z 1
STABILIZER,RH,F.BLACK 59437A 59437-3744-6Z 1
COVER-JET PUMP 59446 59446-3758 1
BOLT,6X20 92002 92002-3755 2
SCREW,TAPPING,4X16 92009 92009-3849 6
NUT,FLANGED,8MM 92015 92015-3709 16
CLAMP 92037 92037-3009 2
RIVET 92039 92039-3741 2
RIVET 92039A 92039-3755 2
PLUG,RR,DRAIN,F.BLACK 92066 92066-3783-6Z 2
GROMMET 92071 92071-3812 1
BAND,314X18 92072 92072-3814 2
SEAL 92093 92093-3720 2
SEAL 92093A 92093-3765 2
SEAL 92093B 92093-3783 2
BOLT,SOCKET,6X18 92150 92150-3775 10
BOLT,SOCKET,6X30 92150A 92150-3822 8
BOLT,SOCKET,M6,SHOULDER 92151 92151-3746 3
COLLAR 92152 92152-3715 8
TUBE,39X51X90 92191 92191-3744 1
WASHER 92200 92200-3779 4
NUT 92210 92210-3707 2
NUT-HEX,6MM 311 311R0600 4
WASHER-PLAIN-SMALL,6MM 410 410S0600 10
WASHER-PLAIN,5MM 411 411S0500 2
WASHER-PLAIN,8MM 411A 411S0800 8
WASHER-PLAIN 411B 411S1600 2
