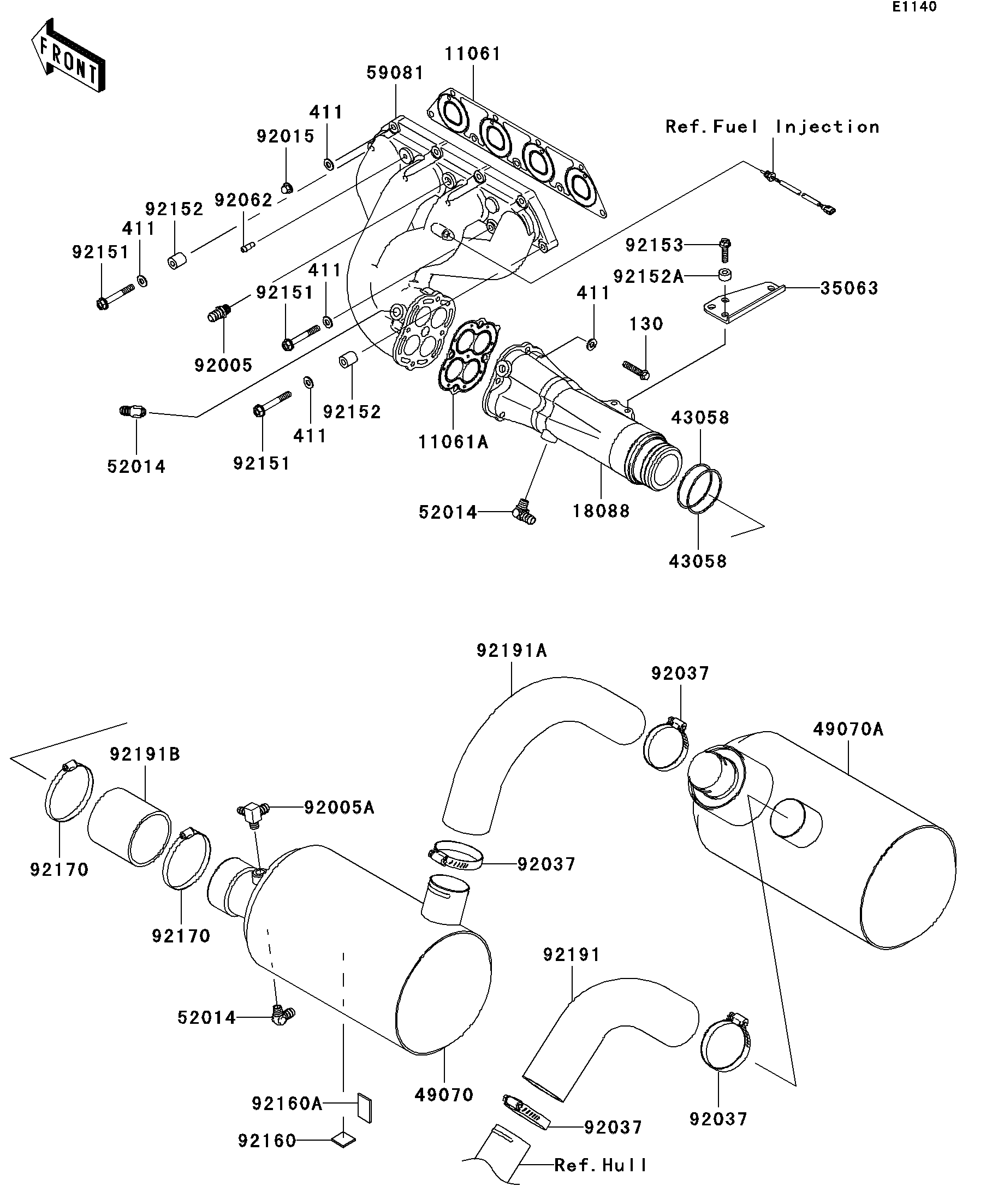

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,MANIFOLD EXHAUST 11061 11061-3713 1
GASKET,PIPE EXHAUST 11061A 11061-3714 1
PIPE-EXHAUST 18088 18088-3723 1
STAY 35063 35063-3704 1
RING,GASKET 43058 43058-3733 2
MUFFLER-COMP 49070 49070-3744 1
MUFFLER-COMP,2ND 49070A 49070-3745 1
ELBOW 52014 52014-3711 3
MANIFOLD-EXHAUST 59081 59081-3741 1
FITTING 92005 92005-3714 1
FITTING 92005A 92005-3751 1
NUT,CAP,8MM 92015 92015-1371 4
CLAMP 92037 92037-3738 4
NOZZLE 92062 92062-3705 1
BOLT,8X60 92151 92151-3730 5
COLLAR 92152 92152-3736 2
COLLAR,8.2X17X10 92152A 92152-3740 4
BOLT,FLANGED,8X30 92153 92153-3722 4
DAMPER,25X25 92160 92160-3864 1
DAMPER,40X25 92160A 92160-3865 1
CLAMP 92170 92170-3760 2
TUBE,RR 92191 92191-3984 1
TUBE,FR 92191A 92191-3985 1
TUBE,PIPE EX-MUFFLER 92191B 92191-3986 1
BOLT-FLANGED,8X40 130 130CD0840 4
WASHER-PLAIN,8MM 411 411S0800 13
