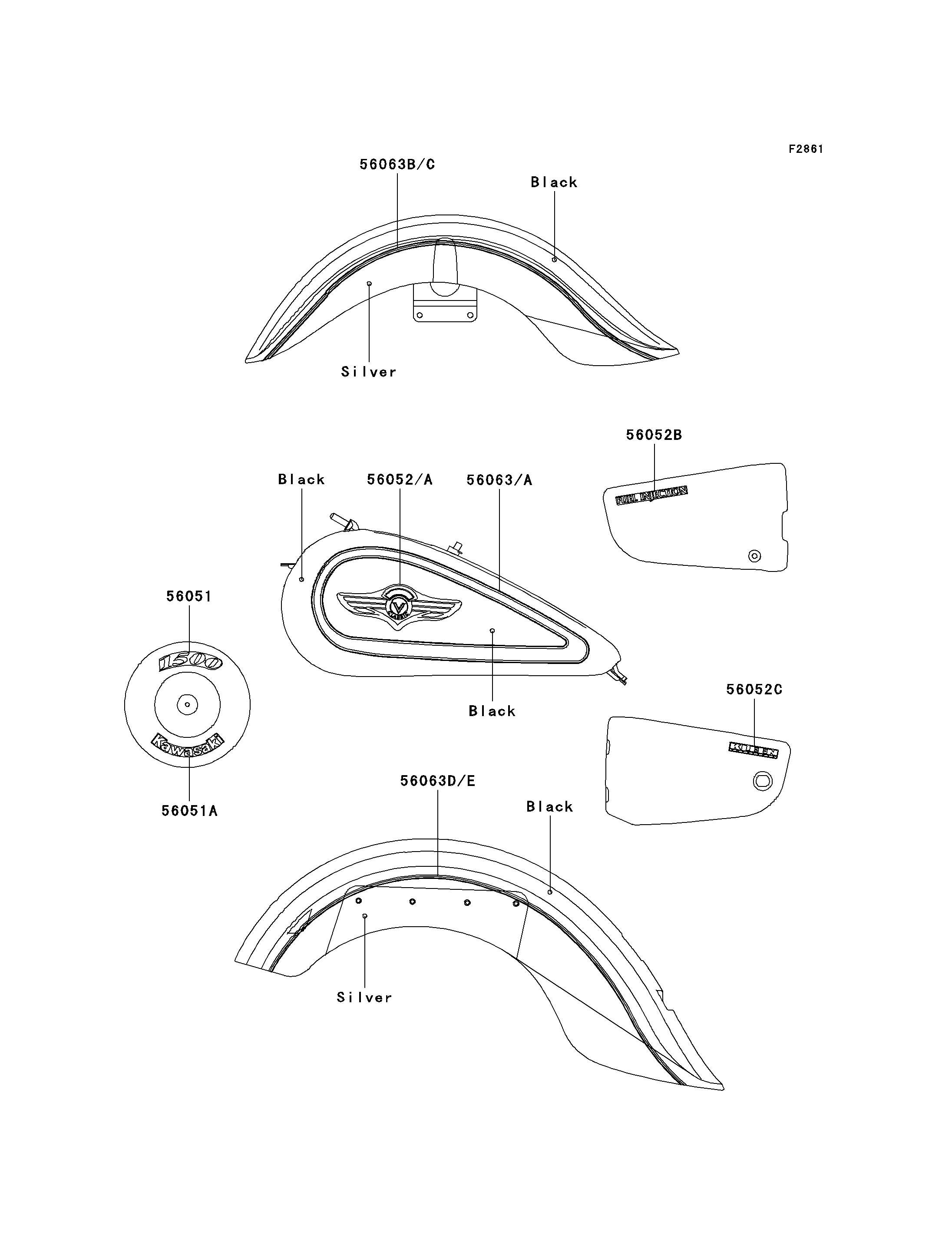

2000 Vulcan 1500 Classic Fi - Decals(Black/Silver)(VN1500-N1/N2)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,AIR CLEANER,1500 | 56051 | 56051-1459 | 1 | CN | |
| MARK,AIR CLEANER,KAWASAKI | 56051A | 56051-1460 | 1 | CN | |
| MARK,FUEL TANK,LH | 56052 | 56052-1195 | 1 | CN | |
| MARK,FUEL TANK,RH | 56052A | 56052-1196 | 1 | CN | |
| MARK,FUEL INJECTION | 56052B | 56052-1197 | 1 | CN | |
| PATTERN,FUEL TANK,LH | 56063 | 56063-1498 | 1 | CN | |
| PATTERN,FUEL TANK,RH | 56063A | 56063-1499 | 1 | CN | |
| PATTERN,FR FENDER,LH | 56063B | 56063-1500 | 1 | CN | |
| PATTERN,FR FENDER,RH | 56063C | 56063-1501 | 1 | CN | |
| PATTERN,RR FENDER,LH | 56063D | 56063-1502 | 1 | CN | |
| PATTERN,RR FENDER,RH | 56063E | 56063-1503 | 1 | CN |
| MARK,AIR CLEANER,1500 | |
| REF # | 56051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| MARK,AIR CLEANER,KAWASAKI | |
| REF # | 56051A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| MARK,FUEL TANK,LH | |
| REF # | 56052 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| MARK,FUEL TANK,RH | |
| REF # | 56052A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| MARK,FUEL INJECTION | |
| REF # | 56052B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,FUEL TANK,LH | |
| REF # | 56063 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,FUEL TANK,RH | |
| REF # | 56063A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,FR FENDER,LH | |
| REF # | 56063B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,FR FENDER,RH | |
| REF # | 56063C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,RR FENDER,LH | |
| REF # | 56063D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,RR FENDER,RH | |
| REF # | 56063E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
