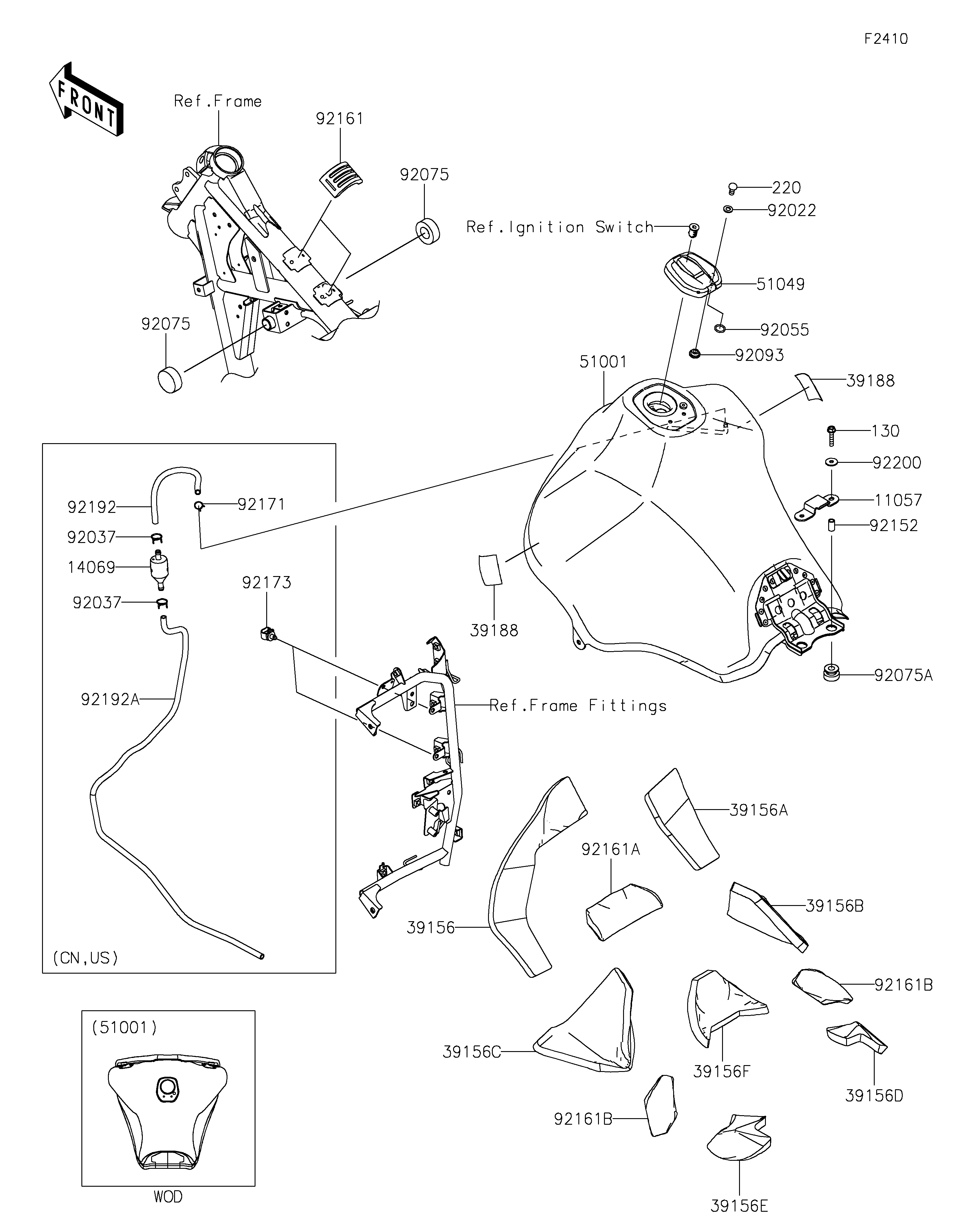

2023 KLR®650 Adventure - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
11057
14069
39156
39156A
39156B
39156C
39156D
39156E
39156F
39188
39188
51001
51049
92022
92037
92037
92055
92075
92075
92075A
92093
92152
92161
92161A
92161B
92161B
92171
92173
92192
92192A
92200
130
220
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SEAT 11057 11057-4274 1
BREATHER,FUEL TANK 14069 14069-1004 1 CN,US
PAD,FR,LH 39156 39156-2664 1
PAD,FR,RH 39156A 39156-2665 1
PAD,MID,RH 39156B 39156-2701 1
PAD,MID,LH 39156C 39156-2702 1
PAD,RR,RH 39156D 39156-2703 1
PAD,RR,LH 39156E 39156-2704 1
PAD,CNT 39156F 39156-2705 1
TAPE,40X50 39188 39188-0049 2
TANK-COMP-FUEL,M.M.C.GRAY 51001 51001-0903-51B 1
CAP-TANK,FUEL 51049 51049-0760 1
WASHER,5.1X10X1.0 92022 92022-1977 2
CLAMP,TUBE 92037 92037-147 2 CN,US
RING-O 92055 92055-1023 2
DAMPER,FUEL TANK 92075 92075-101 2
DAMPER 92075A 92075-1660 2
SEAL,FUEL TANK CAP 92093 92093-1030 1
COLLAR,6.8X10X18 92152 92152-2726 2
DAMPER 92161 92161-2372 2
DAMPER,CNT 92161A 92161-2394 1
DAMPER,LH&RH 92161B 92161-2395 2
CLAMP,8X0.7 92171 92171-1973 1 CN,US
CLAMP,12MM DIA. 92173 92173-0736 2 CN,US
TUBE,BREATHER,6X9X220 92192 92192-2441 1 CN,US
TUBE,BREATHER,6X9X900 92192A 92192-2442 1 CN,US
WASHER,6.5X20X1.6 92200 92200-1962 2
BOLT-FLANGED,6X30 130 130BB0630 2
SCREW-PAN-CROS,5X10 220 220AA0510 2
