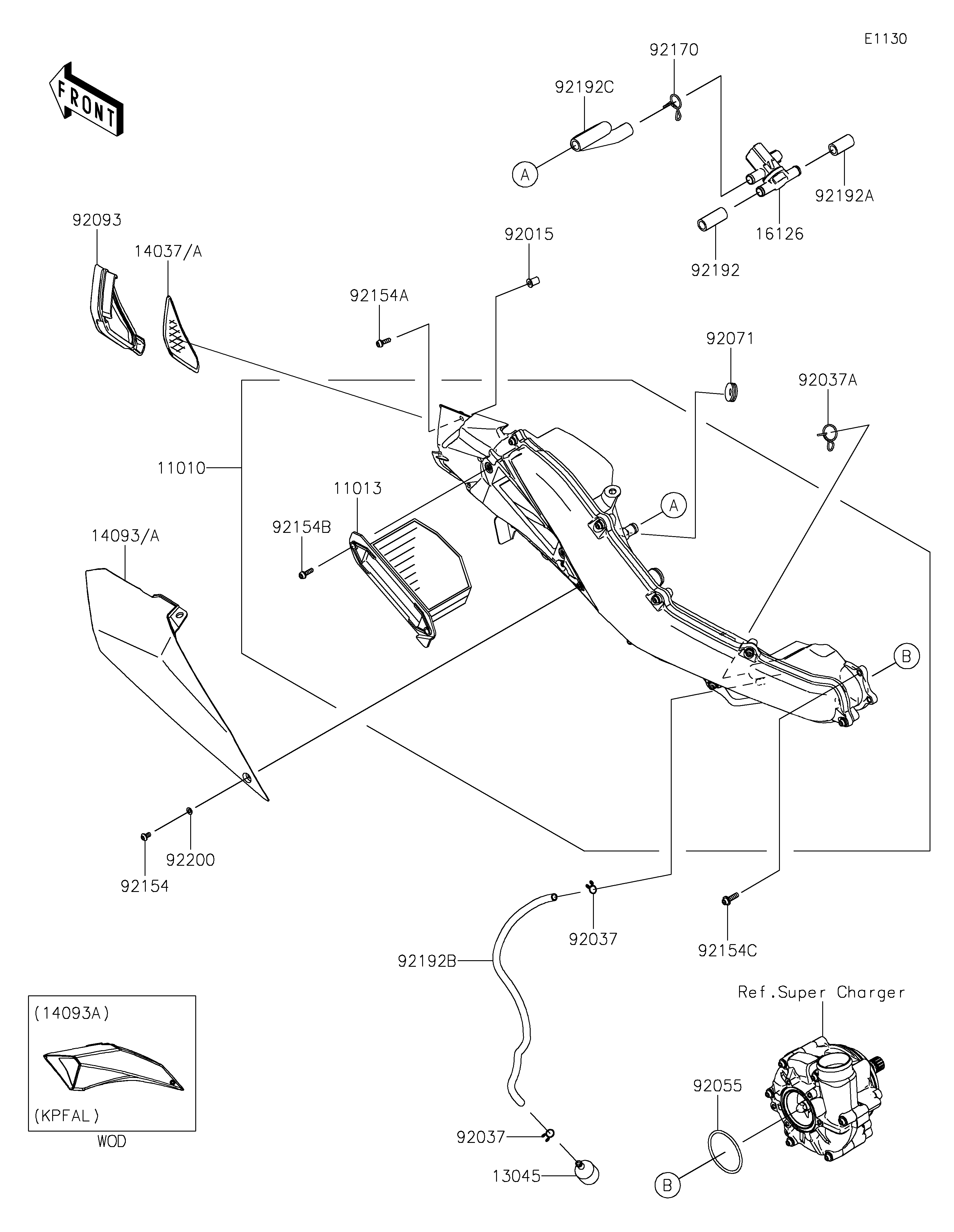

2022 Z H2 - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
11010
11013
13045
14037
14037A
14093
14093A
16126
92015
92037
92037
92037A
92055
92071
92093
92154
92154A
92154B
92154B
92154C
92154D
92170
92172
92192
92192A
92192B
92192C
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FILTER-ASSY-AIR 11010 11010-0994 1
ELEMENT-AIR FILTER 11013 11013-0804 1
RECEIVER-OIL 13045 13045-1057 1
SCREEN,F.S.BLACK 14037 14037-0807-18R 1
SCREEN,M.P.RED 14037A 14037-0807-796 1
COVER,M.D.BLACK 14093 14093-0976-17K 1
COVER,M.P.SILVER 14093A 14093-0976-GU 1
VALVE,AIR SWITCHING 16126 16126-0745 1
NUT,WELL,5MM 92015 92015-1757 2
CLAMP,TUBE 92037 92037-147 2
CLAMP,TUBE 92037A 92037-213 1
RING-O,59.6X3.5 92055 92055-0974 1
GROMMET 92071 92071-056 1
SEAL,SCREEN 92093 92093-0746 1
BOLT,SOCKET,5X10 92154 92154-0211 1
BOLT,SOCKET,5X16 92154A 92154-1449 2
BOLT,SOCKET,5X18 92154B 92154-1450 9
BOLT,SOCKET,6X20 92154C 92154-1667 3
BOLT,SOCKET,5X45 92154D 92154-2934 1
CLAMP 92170 92170-1017 1
SCREW,TAPPING,5X16 92172 92172-0482 2
TUBE,ASWV-HEAD CAP,LH 92192 92192-1847 1
TUBE,ASWV-HEAD CAP,RH 92192A 92192-2276 1
TUBE,DRAIN 92192B 92192-2280 1
TUBE,2ND AIR 92192C 92192-2281 1
WASHER,5.2X10X1.0 92200 92200-1820 1
