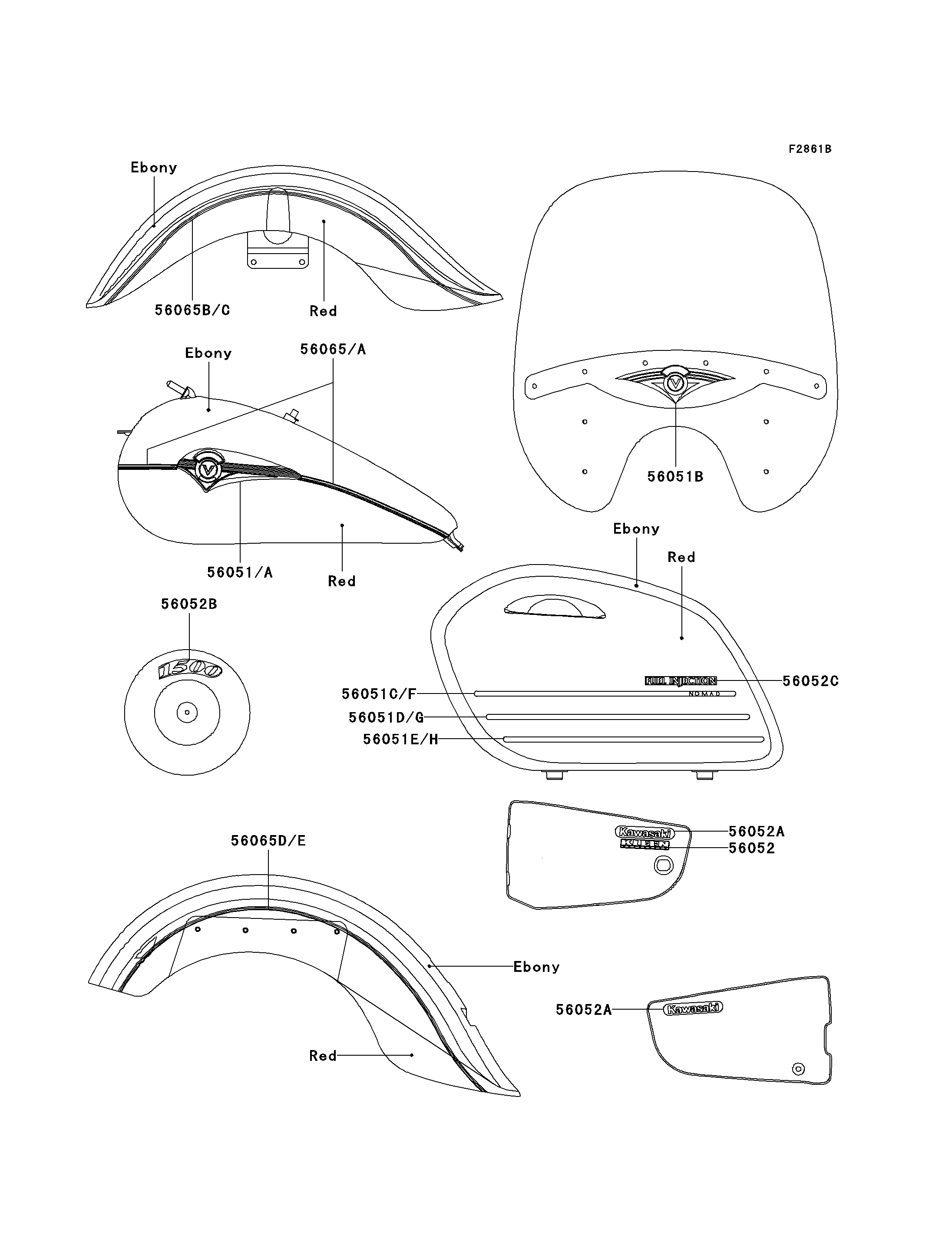

2002 Vulcan 1500 Nomad Fi - Decals(Ebony/Red)(VN1500-L3)

DOWNLOAD PDF
SELECT A NEW PART
56051
56051A
56051B
56051C
56051D
56051E
56051F
56051G
56051H
56052
56052A
56052A
56052B
56052C
56065
56065A
56065B
56065C
56065D
56065E
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,FUEL TANK,LH 56051 56051-1808 1
MARK,FUEL TANK,RH 56051A 56051-1809 1
MARK,WINDSHIELD BRACKET 56051B 56051-1810 1
MARK,SIDE BAG COVER,UPP,LH 56051C 56051-1811 1
MARK,SIDE BAG COVER,CNT,LH 56051D 56051-1812 1
MARK,SIDE BAG COVER,LWR,LH 56051E 56051-1813 1
MARK,SIDE BAG COVER,UPP,RH 56051F 56051-1814 1
MARK,SIDE BAG COVER,CNT,RH 56051G 56051-1815 1
MARK,SIDE BAG COVER,LWR,RH 56051H 56051-1816 1
MARK,SIDE COVER,KLEEN 56052 56052-1384 1
MARK,SIDE COVER,KAWASAKI 56052A 56052-1533 2
MARK,AIR CLEANER COVER,RH,1500 56052B 56052-1545 1
MARK,SIDE BAG,FUEL INJECTION 56052C 56052-1553 2
PATTERN,FUEL TANK,LH 56065 56065-1239 1
PATTERN,FUEL TANK,RH 56065A 56065-1240 1
PATTERN,FR FENDER,LH 56065B 56065-1241 1
PATTERN,FR FENDER,RH 56065C 56065-1242 1
PATTERN,RR FENDER,LH 56065D 56065-1243 1
PATTERN,RR FENDER,RH 56065E 56065-1244 1
