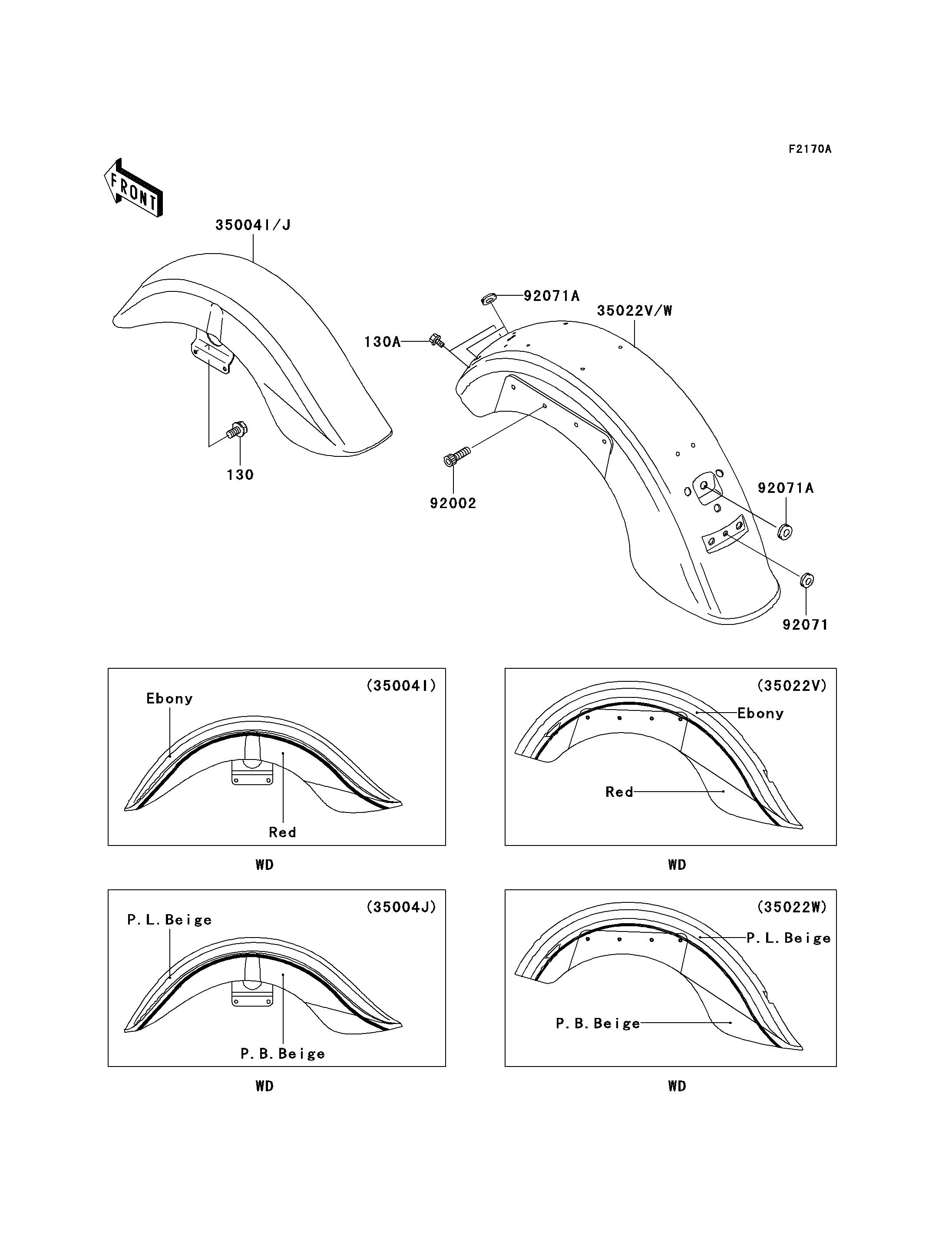

2002 Vulcan 1500 Nomad Fi - Fenders(VN1500-L3)

DOWNLOAD PDF
SELECT A NEW PART
35004I
35004I
35004J
35004J
35022V
35022V
35022W
35022W
130
130
130A
130A
92002
92002
92071
92071
92071A
92071A
92071A
92071A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FENDER-FRONT,EBONY/RED 35004I 35004-5197-FK 1
FENDER-FRONT,BEIGE/BEIGE 35004J 35004-5198-Y1 1
FENDER-COMP-REAR,EBONY/RED 35022V 35022-5104-FK 1
FENDER-COMP-REAR,BEIGE/BEIGE 35022W 35022-5105-Y1 1
BOLT-FLANGED,8X14 130 130J0814 4
BOLT-FLANGED,8X16,BLACK 130A 130J0816 2
BOLT,SOCKET,8X25 92002 92002-1442 2
GROMMET,10MM 92071 92071-019 1
GROMMET,13MM 92071A 92071-099 3
