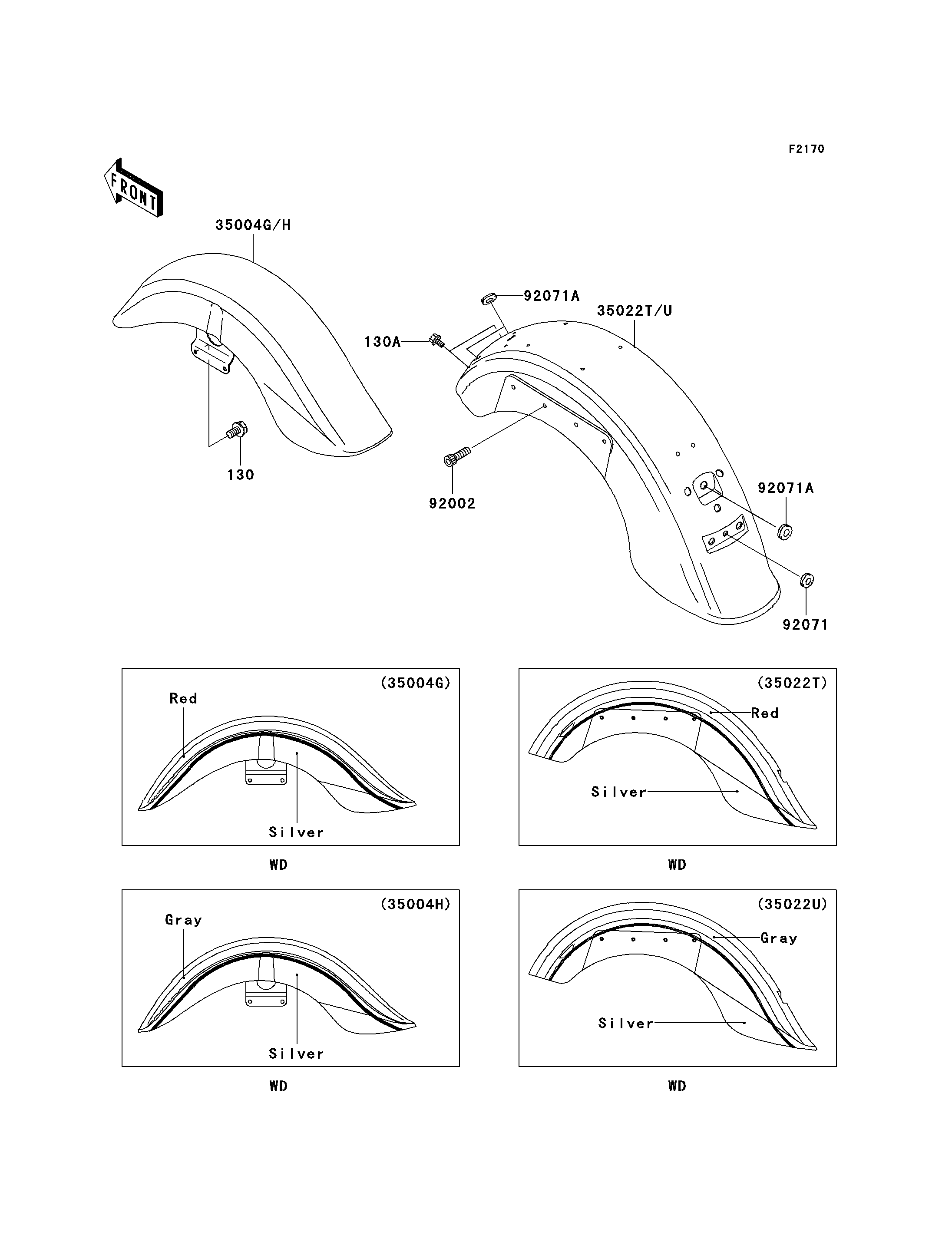

2001 Vulcan 1500 Nomad Fi - Fenders(VN1500-L2)

DOWNLOAD PDF
SELECT A NEW PART
35004G
35004G
35004H
35004H
35022T
35022T
35022U
35022U
130
130
130A
130A
92002
92002
92071
92071
92071A
92071A
92071A
92071A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FENDER-FRONT,RED/SILVER 35004G 35004-5185-I1 1
FENDER-FRONT,SILVER/GRAY 35004H 35004-5188-8Y 1
FENDER-COMP-REAR,RED/SILVER 35022T 35022-5087-I1 1
FENDER-COMP-REAR,SILVER/GRAY 35022U 35022-5088-8Y 1
BOLT-FLANGED,8X14 130 130J0814 4
BOLT-FLANGED,8X16,BLACK 130A 130J0816 2
BOLT,SOCKET,8X25 92002 92002-1442 2
GROMMET,10MM 92071 92071-019 1
GROMMET,13MM 92071A 92071-099 3
