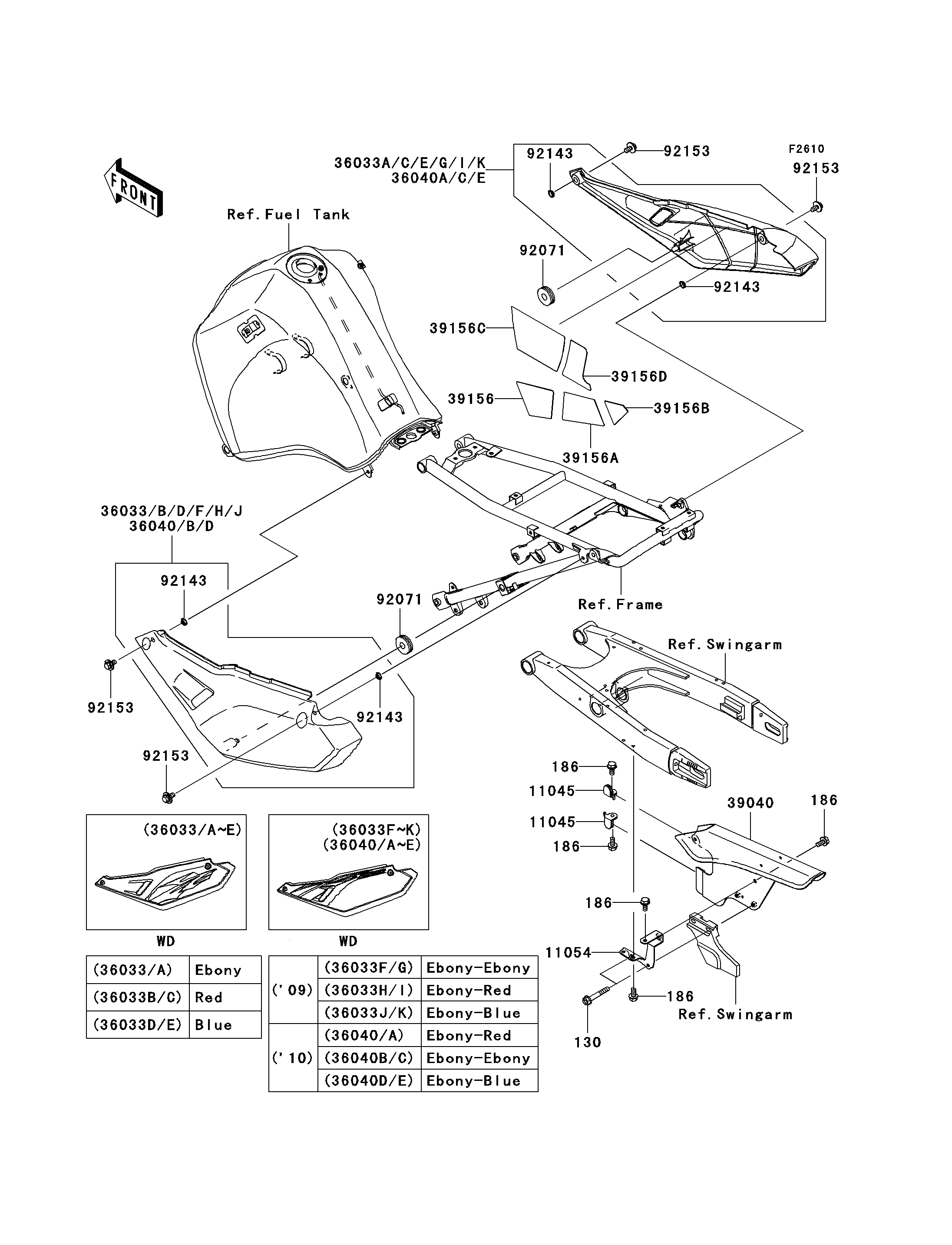

2009 KLR™650 - Side Covers/Chain Cover

DOWNLOAD PDF
SELECT A NEW PART
130
186
186
186
186
186
11045
11045
11054
36033F
36033G
36033H
36033I
36033J
36033K
39040
39156
39156A
39156B
39156C
39156D
92071
92071
92143
92143
92143
92143
92153
92153
92153
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X40 130 130BA0640 2
BOLT-UPSET-WP,6X12 186 186BA0612 5
BRACKET,CHAIN CASE,FR 11045 11045-1335 2
BRACKET,CHAIN CASE,RR 11054 11054-0390 1
COVER-SIDE,LH,EBONY 36033F 36033-5367-6C 1
COVER-SIDE,RH,EBONY 36033G 36033-5368-6C 1
COVER-SIDE,LH,EBONY 36033H 36033-5369-6C 1
COVER-SIDE,RH,EBONY 36033I 36033-5370-6C 1
COVER-SIDE,LH,EBONY 36033J 36033-5371-6C 1
COVER-SIDE,RH,EBONY 36033K 36033-5372-6C 1
COVER-ASSY-CHAIN CASE 39040 39040-0002 1
PAD,SIDE COVER,RH,LWR,FR 39156 39156-0184 1
PAD,SIDE COVER,RH,LWR,CNT 39156A 39156-0189 1
PAD,SIDE COVER,RH,LWR,RR 39156B 39156-0190 1
PAD,SIDE COVER,RH,UPP,FR 39156C 39156-0262 1
PAD,SIDE COVER,RH,UPP,RR 39156D 39156-0263 1
GROMMET 92071 92071-056 2
COLLAR 92143 92143-1196 4
BOLT,6X12 92153 92153-0503 4
