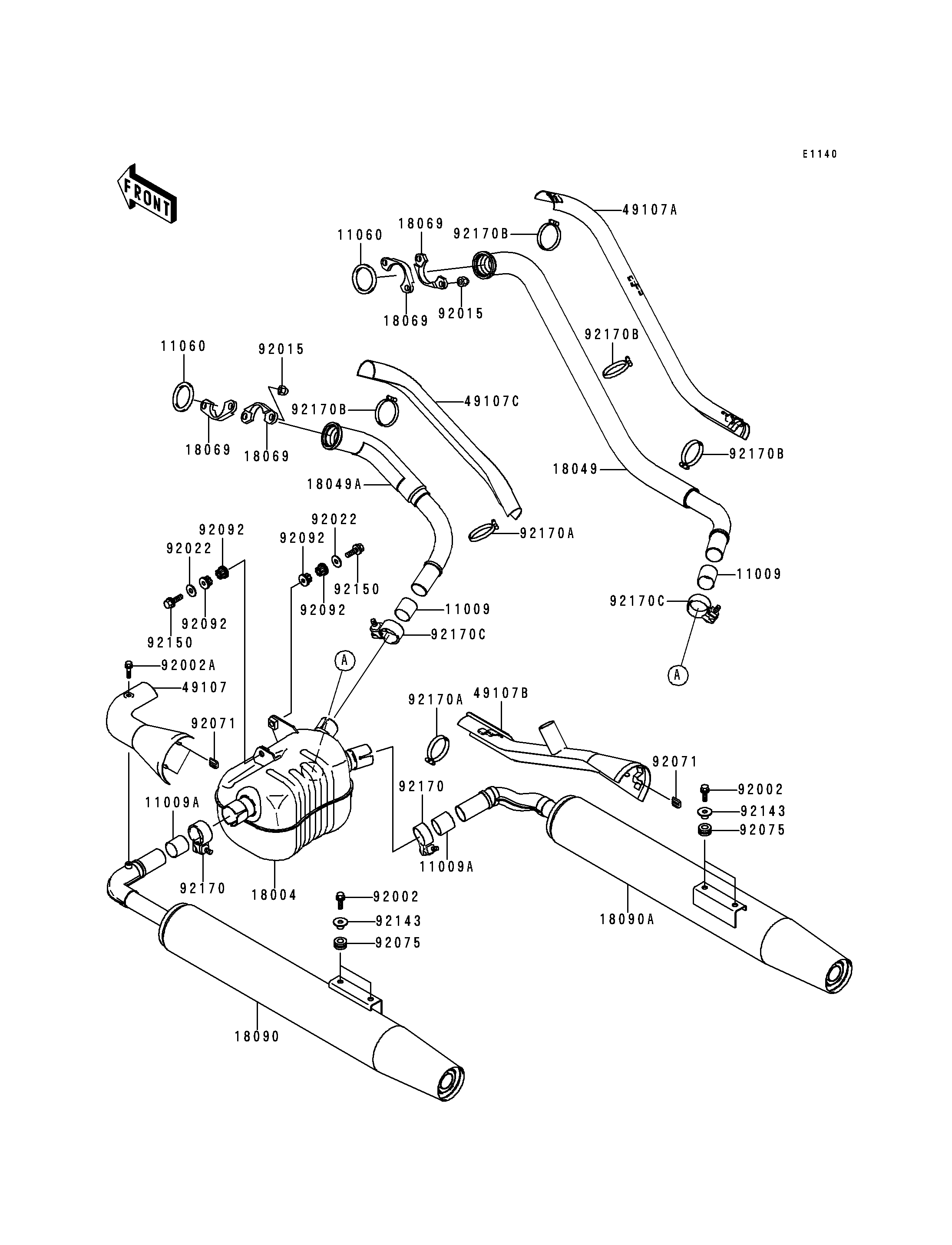

2000 Vulcan 1500 Nomad Fi - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
11009A
11009A
11060
11060
18004
18049
18049A
18069
18069
18069
18069
18090
18090A
49107
49107A
49107B
49107C
92002
92002
92002A
92015
92015
92022
92022
92071
92071
92075
92075
92092
92092
92092
92092
92143
92143
92150
92150
92170
92170
92170A
92170A
92170B
92170B
92170B
92170B
92170C
92170C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,EXHAUST PIPE CONNECTING 11009 11009-1667 2
GASKET,MUFFLER CONNECTING 11009A 11009-1865 2
GASKET,EXHAUST PIPE 11060 11060-1119 2
CHAMBER-PREMUFFLER 18004 18004-1089 1
PIPE-EXHAUST,FR 18049 18049-1906 1
PIPE-EXHAUST,RR 18049A 18049-1907 1
HOLDER-EXHAUST PIPE 18069 18069-1138 4
BODY-COMP-MUFFLER,LH 18090 18090-1754 1
BODY-COMP-MUFFLER,RH 18090A 18090-1755 1
COVER-EXHAUST PIPE,RR,LH 49107 49107-1158 1
COVER-EXHAUST PIPE,FR,FR 49107A 49107-1169 1
COVER-EXHAUST PIPE,FR,RH 49107B 49107-1180 1
COVER-EXHAUST PIPE,RR,RH 49107C 49107-1181 1
BOLT,FLANGED,8X25 92002 92002-1591 4
BOLT,6X8 92002A 92002-1604 1
NUT,CAP,8MM 92015 92015-1371 4
WASHER,10.5X30X2.3,BLACK 92022 92022-1302 2
GROMMET 92071 92071-1226 4
DAMPER 92075 92075-1898 4
BUSHING-RUBBER,MUFFLER 92092 92092-1013 4
COLLAR 92143 92143-1753 4
BOLT,10X55 92150 92150-1749 2
CLAMP 92170 92170-1928 2
CLAMP 92170A 92170-1934 2
CLAMP 92170B 92170-1964 4
CLAMP 92170C 92170-1995 2
