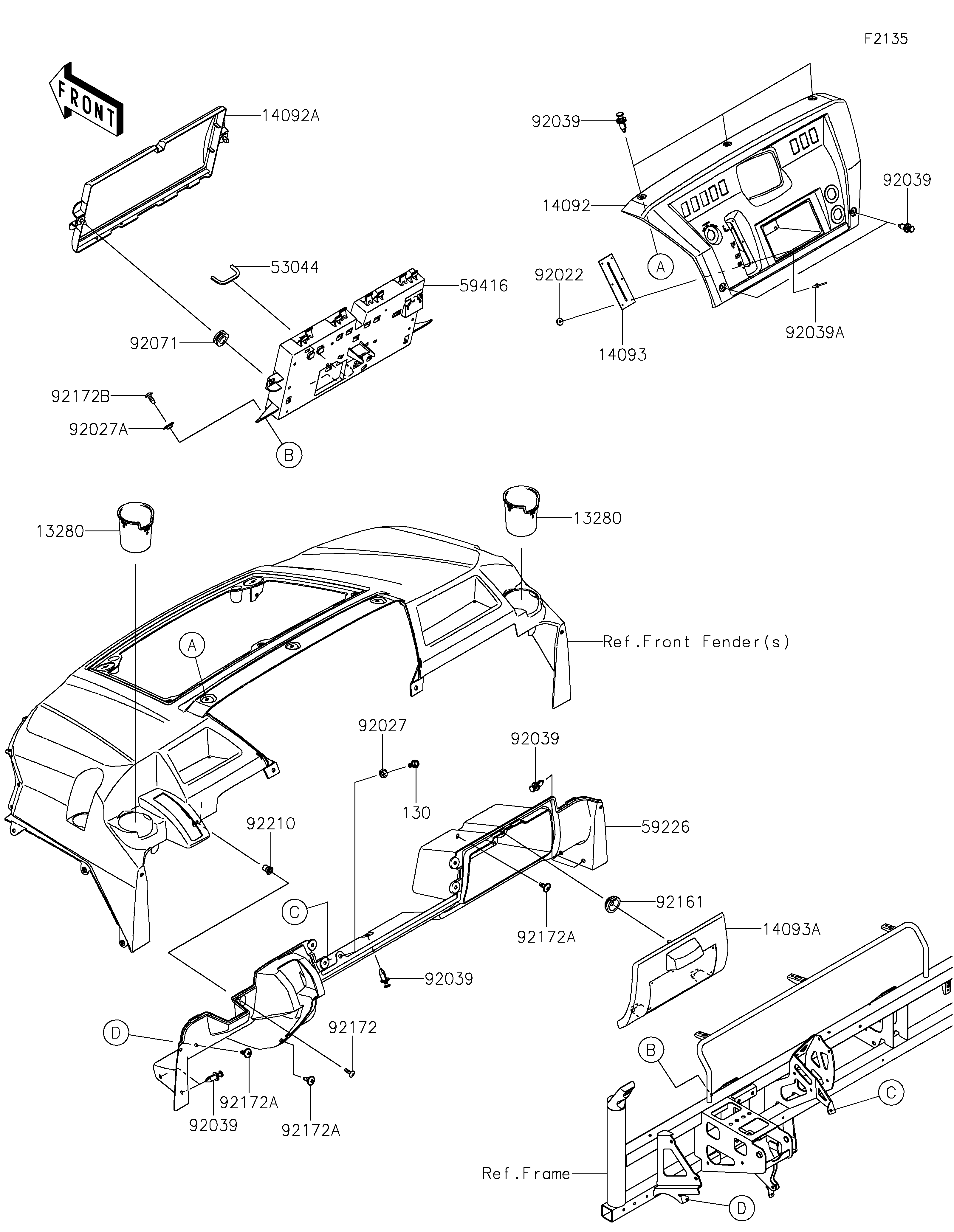

2023 MULE PRO-FX™ - Front Box

DOWNLOAD PDF
SELECT A NEW PART
13280
13280
14092
14092A
14093
14093A
53044
59226
59416
92022
92027
92027A
92039
92039
92039
92039
92039
92039A
92071
92161
92172
92172A
92172A
92172A
92172B
92210
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,CUP 13280 13280-0774 2
COVER,DASHBOARD 14092 14092-1192 1
COVER,ELECTRIC BOX 14092A 14092-1197 1
COVER,SHIFT LEVER 14093 14093-0146 1
COVER,GLOVE BOX 14093A 14093-1061 1
TRIM 53044 53044-0572 1
PANEL-CONTROL 59226 59226-0042 1
CASE-ELECTRIC 59416 59416-0026 1
WASHER,3.3X12X1.2 92022 92022-1407 6
COLLAR,L=4.6 92027 92027-1168 1
COLLAR,L=5.1 92027A 92027-1260 2
RIVET 92039 92039-0776 10
RIVET 92039A 92039-1231 6
GROMMET 92071 92071-1131 2
DAMPER,7.8X30X11 92161 92161-1953 1
SCREW,5MM 92172 92172-0292 1
SCREW,6X16 92172A 92172-0711 3
SCREW,TAPPING,6X16 92172B 92172-0739 2
NUT,WELL,5MM 92210 92210-0370 1
BOLT-FLANGED,6X16 130 130CA0616 1
