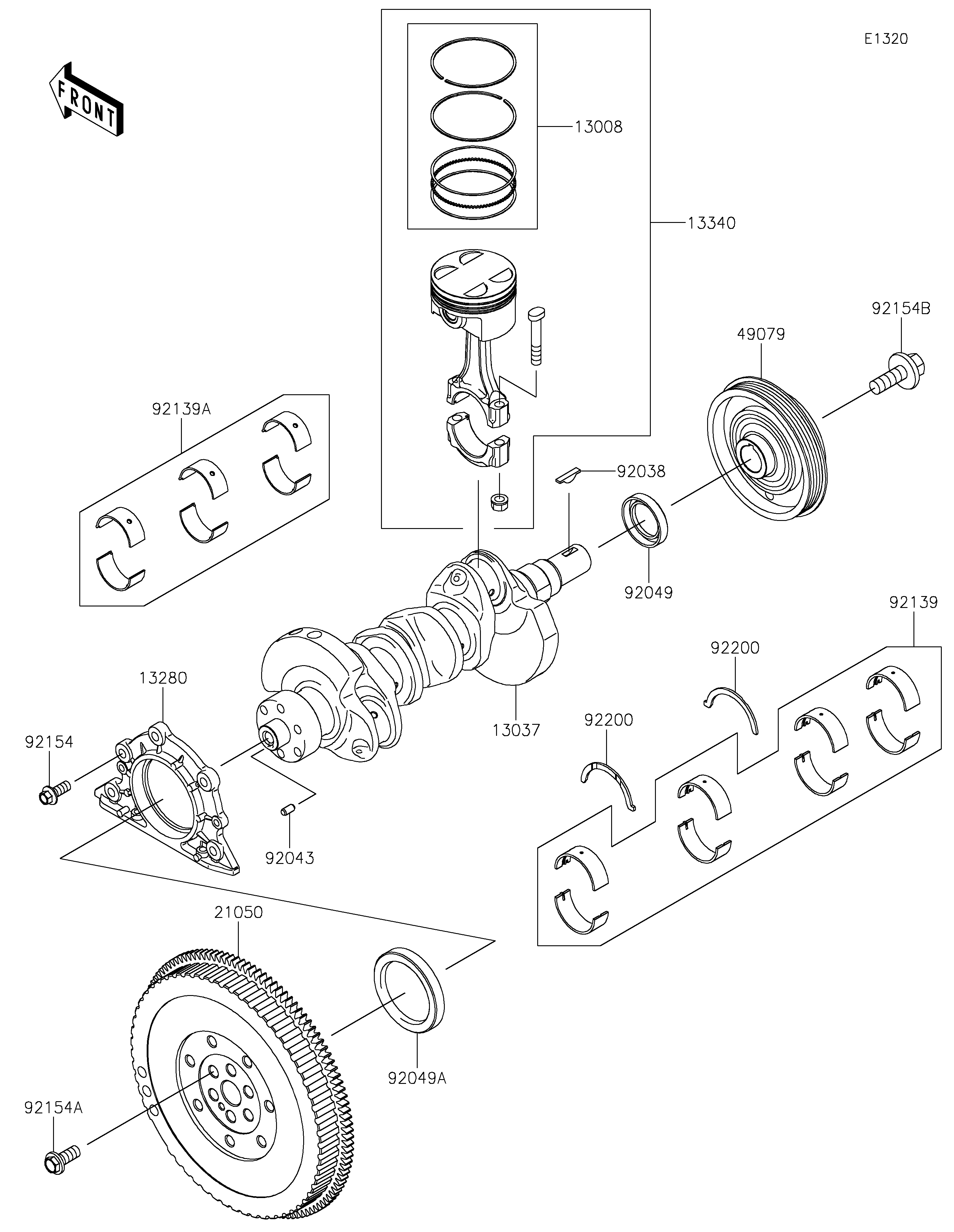

2023 MULE PRO-FX™ - Crankshaft/Piston(s)
13008
13037
13280
13340
21050
49079
92038
92043
92049
92049A
92139
92139A
92154
92154A
92154B
92200
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| RING-SET-PISTON | 13008 | 13008-0561 | 3 | ||
| CRANKSHAFT | 13037 | 13037-0854 | 1 | ||
| HOLDER | 13280 | 13280-0826 | 1 | ||
| PISTON-ASSY-ENGINE | 13340 | 13340-0003 | 3 | ||
| FLYWHEEL | 21050 | 21050-0008 | 1 | ||
| PULLEY-BELT,CRANKSHAFT | 49079 | 49079-0021 | 1 | ||
| KEY | 92038 | 92038-0005 | 1 | ||
| PIN | 92043 | 92043-0830 | 1 | ||
| SEAL-OIL | 92049 | 92049-0774 | 1 | ||
| SEAL-OIL | 92049A | 92049-0775 | 1 | ||
| BUSHING | 92139 | 92139-0833 | 1 | ||
| BUSHING | 92139A | 92139-0838 | 1 | ||
| BOLT,FLANGED,8X20 | 92154 | 92154-1586 | 5 | ||
| BOLT,FLYWHEEL | 92154A | 92154-1587 | 6 | ||
| BOLT,CRANKSHAFT PULLEY | 92154B | 92154-1831 | 1 | ||
| WASHER | 92200 | 92200-1682 | 2 |
