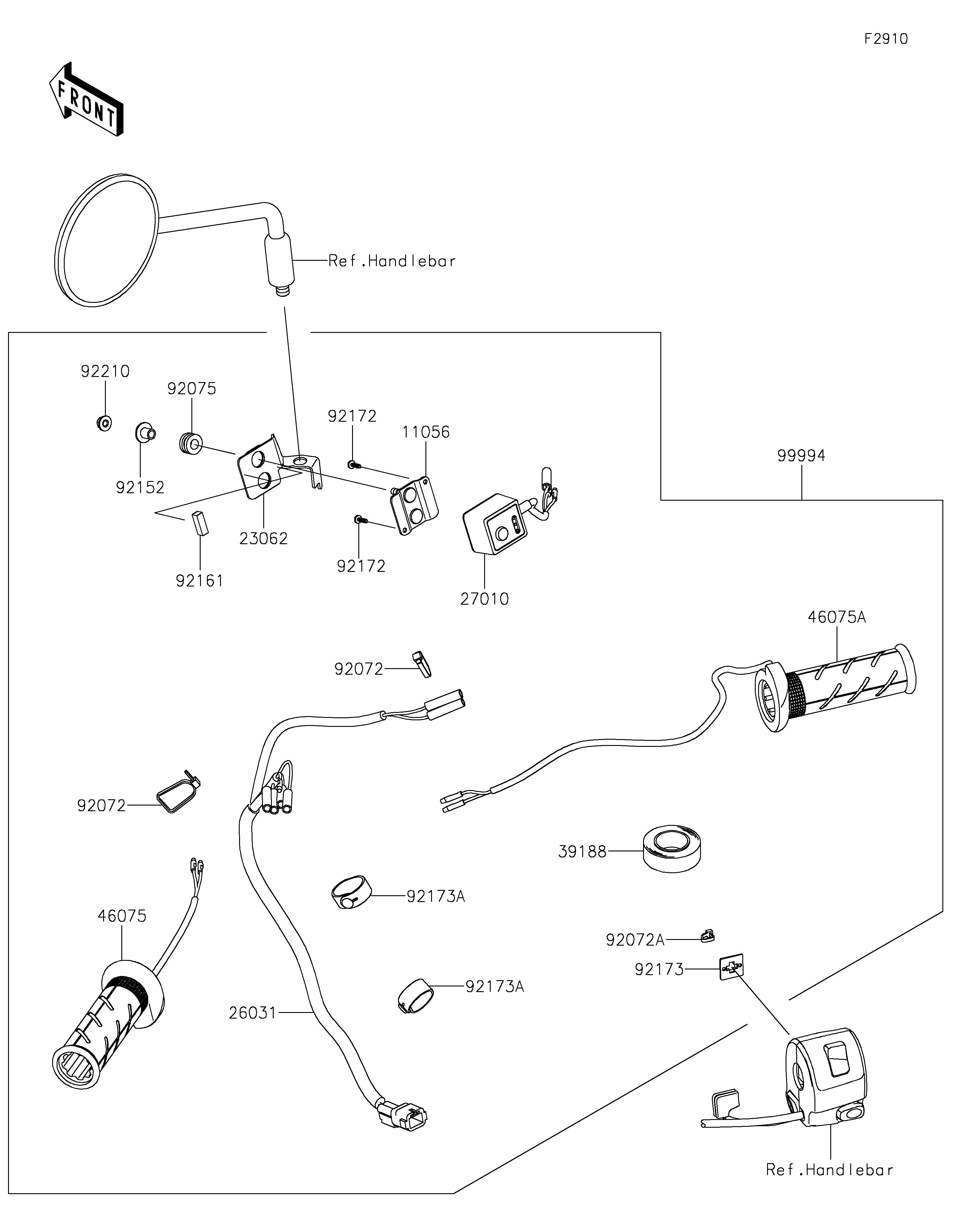

2022 KLR®650 Adventure - Accessory(Grip Heater)

DOWNLOAD PDF
SELECT A NEW PART
11056
23062
26031
27010
39188
46075
46075A
92072
92072
92072A
92075
92152
92161
92172
92172
92173
92173A
92173A
92210
99994
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11056 11056-7296 1
BRACKET-COMP 23062 23062-1325 1
HARNESS 26031 26031-3876 1
SWITCH,HEATED-GRIP,HONDA-ACCES 27010 27010-0126 1
TAPE,HARNESS 39188 39188-0006 1
GRIP,HEATER,LH 46075 46075-0599 1
GRIP,HEATER,RH 46075A 46075-0600 1
BAND,L=152 92072 92072-3874 2
BAND,L=100 92072A 92072-3875 1
DAMPER 92075 92075-1912 2
COLLAR 92152 92152-0134 2
DAMPER 92161 92161-1756 2
SCREW,TAPPING,3X10 92172 92172-0351 2
CLAMP 92173 92173-0812 1
CLAMP 92173A 92173-2194 2
NUT,FLANGED,5MM 92210 92210-0007 2
GRIP HEATER 99994 99994-1501 1
