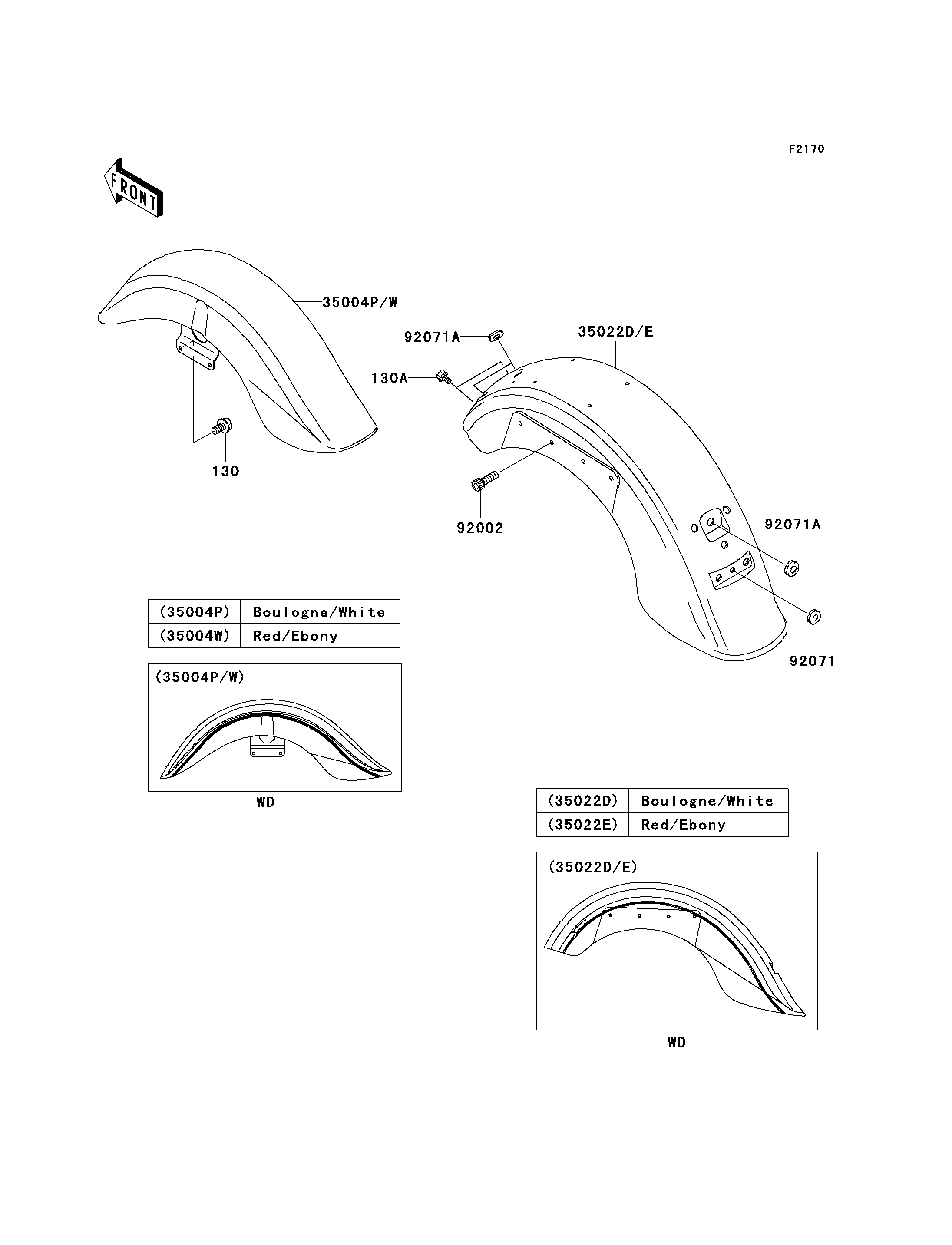

Parts Diagrams |
35004P
35004P
35004W
35004W
35022D
35022D
35022E
35022E
130
130
130A
130A
92002
92002
92071
92071
92071A
92071A
92071A
92071A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FENDER-FRONT,BOULOGNE/WHITE | 35004P | 35004-5169-2S | 1 | ||
| FENDER-FRONT,RED/EBONY | 35004W | 35004-5178-CV | 1 | ||
| FENDER-COMP-REAR,BOULOGNE/WHITE | 35022D | 35022-5026-2S | 1 | ||
| FENDER-COMP-REAR,RED/EBONY | 35022E | 35022-5153-CV | 1 | ||
| BOLT-FLANGED,8X14 | 130 | 130J0814 | 4 | ||
| BOLT-FLANGED,8X16,BLACK | 130A | 130J0816 | 2 | ||
| BOLT,SOCKET,8X25 | 92002 | 92002-1442 | 2 | ||
| GROMMET,10MM | 92071 | 92071-019 | 1 | ||
| GROMMET,13MM | 92071A | 92071-099 | 3 |
